Need help ID'ing Window Channel Balance

Quick Learner from San Francisco Bay Area
Mar 16, 2024 6:56 pm

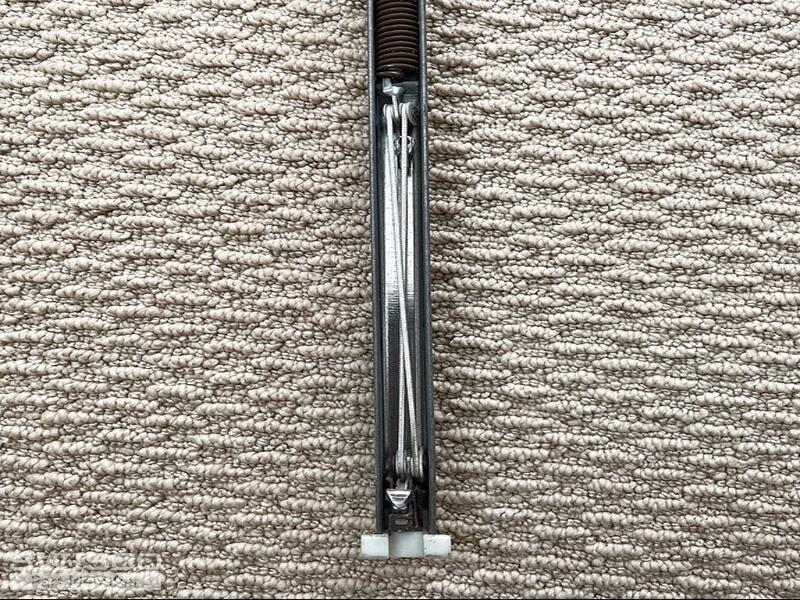

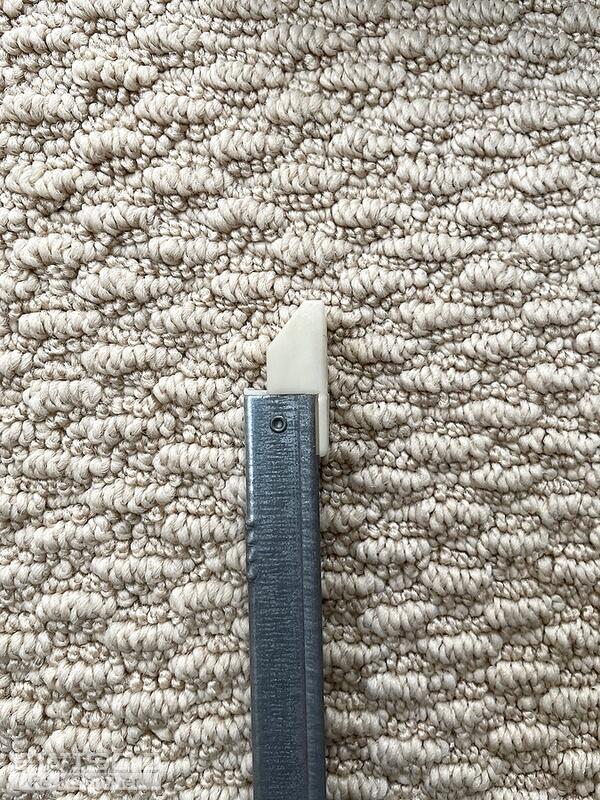

Hello, please help identify the replacement part for my window channel balance. It is 26 inches long. Pictures attached.
IMG_1458 IMG_1456 IMG_1452 IMG_1453 IMG_1455
5 user uploaded images
4 Replies
Bob
Bob from SWISCO
Mar 17, 2024 11:37 pm
SWISCO
EXPERT

Hello there. Confirm that you measured just the metal channel, and did not include the end attachments in the measurement. If so, then this is probably either an S380-26 or S385-26 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe, or the measurement from heel to toe. See the diagram below. Compare both with your old hardware to see what matches best.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

Let me know if you have any other questions, or need help choosing the correct stamp option for the balance.

Quick Learner from San Francisco Bay Area
Mar 21, 2024 11:38 pm
Thanks, Bob.
Quick Learner from San Francisco Bay Area
Mar 21, 2024 11:47 pm
Hi Bob, yes I will need help choosing the correct stamp option for the balance please.

Thanks.
IMG_1488
1 user uploaded images
Bob
Bob from SWISCO
Mar 22, 2024 8:58 am
SWISCO
EXPERT

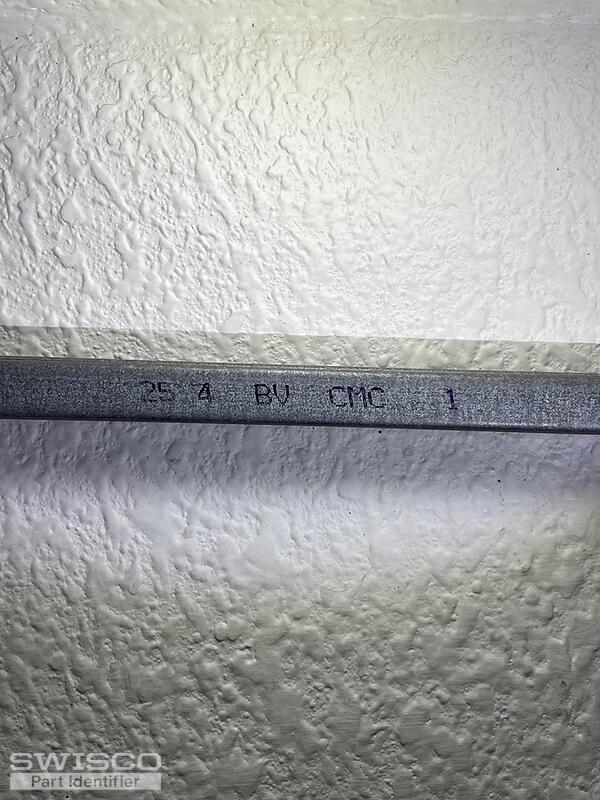

Looks like your old stamp reads "25 4," which typically matches up with our 2540 stamp option. You can verify this by weighing your sash and reviewing the weight chart we show on each balance's respective store page.
