Need help finding replacement parts

Home Owner from Timonium, MD

Jan 26, 2023 8:41 am

I am looking to replace the tracks, pins, and all other hardware for all the closet doors in the house my wife and I just purchased. The house was built in 1958 and has the original closet doors, and we expect the original mechanisms. I have had a really hard time identifying and finding the parts that we need.

I have already ripped out the tracks, and need to find replacement tracks as well.

Please help!
Thanks!
Tony

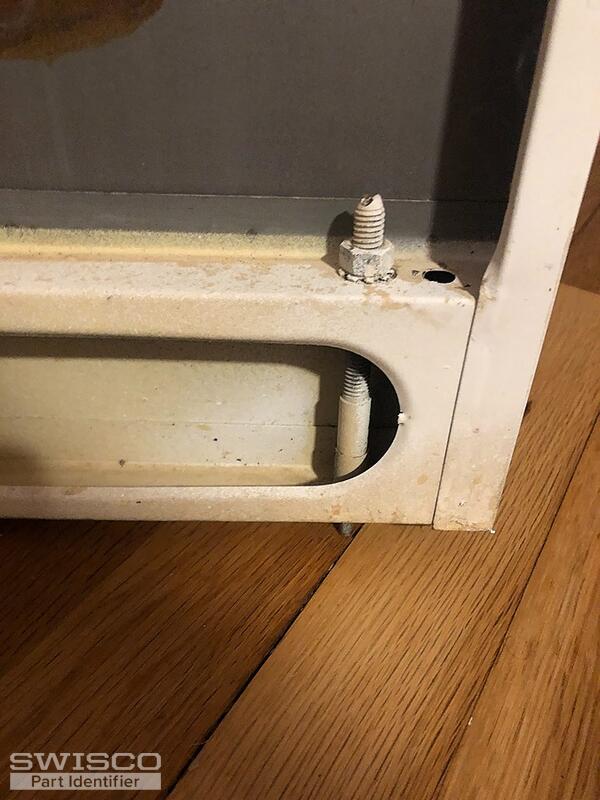

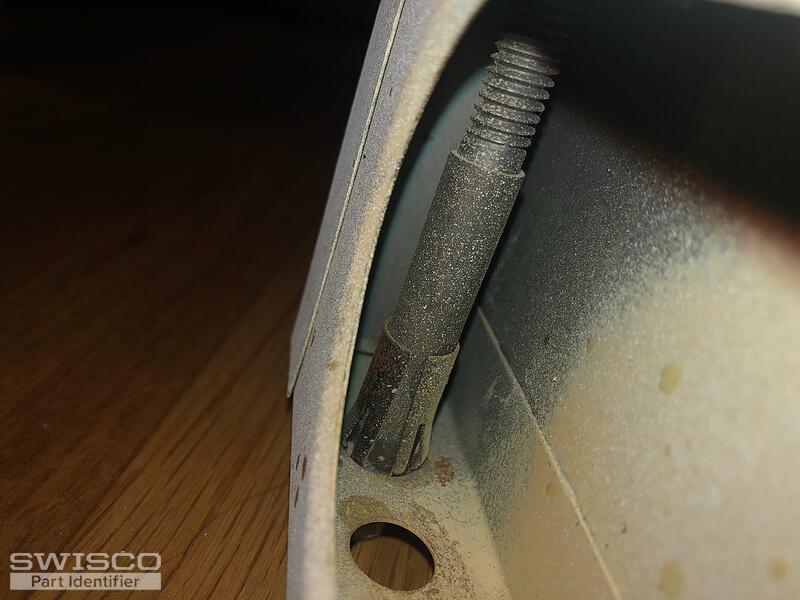

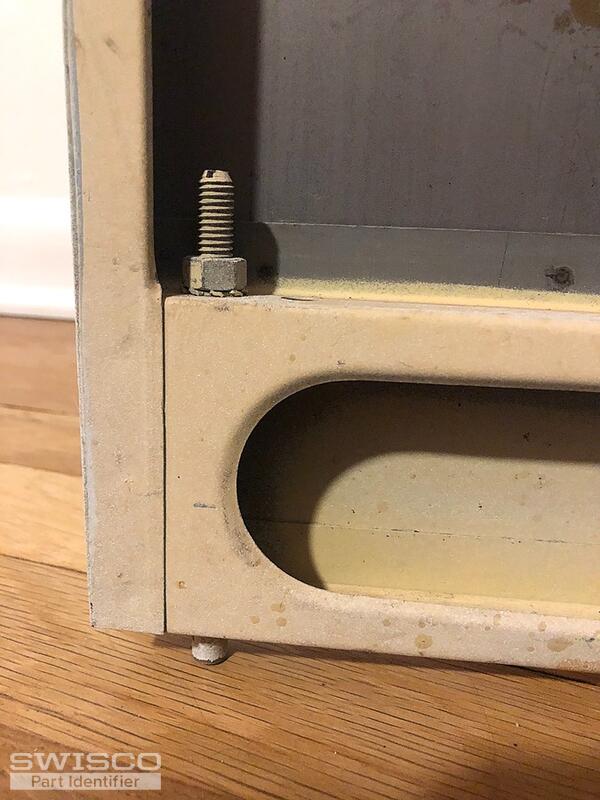

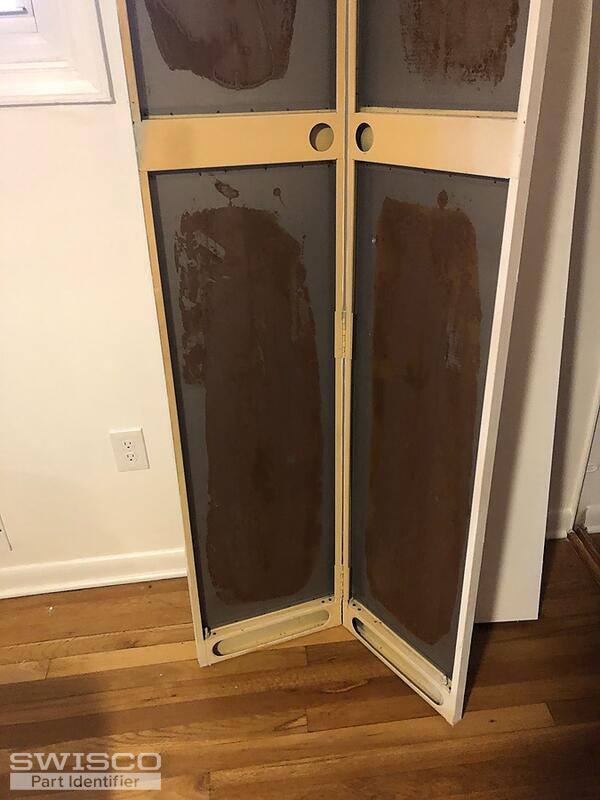

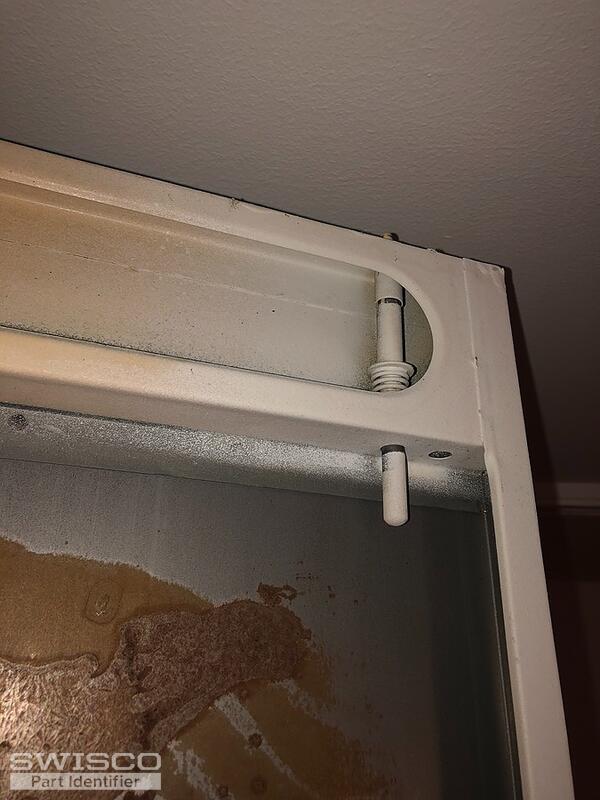

5 user uploaded images

4 Replies

Casey from SWISCO

Jan 26, 2023 12:32 pm

Hello,

We'd be happy to help but we would need to see photos of your pins fully removed from the door, along with written-out dimensions detailed in our guide here.

It would also help to see photos of the original tracks if you held onto them after removing them. Thank you.

Home Owner from Timonium, MD

Jan 29, 2023 9:22 pm

Thank you!

- The doors are metal

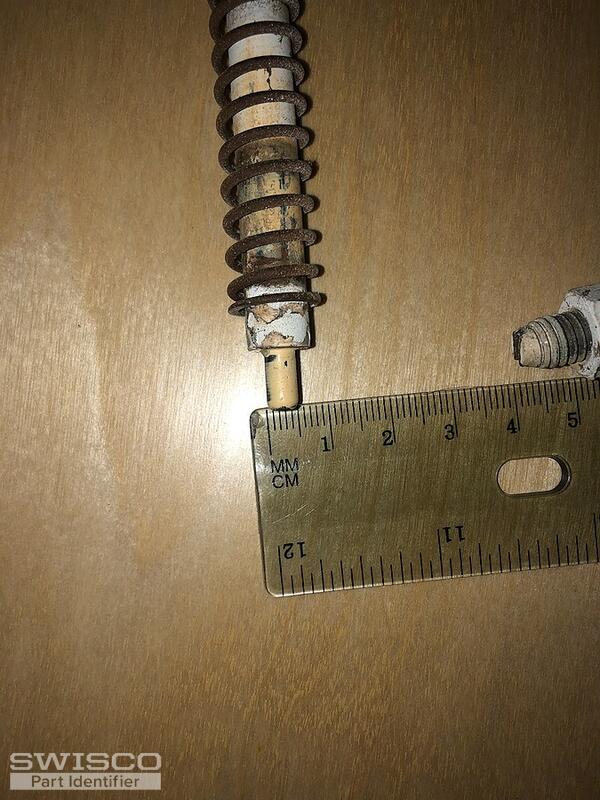

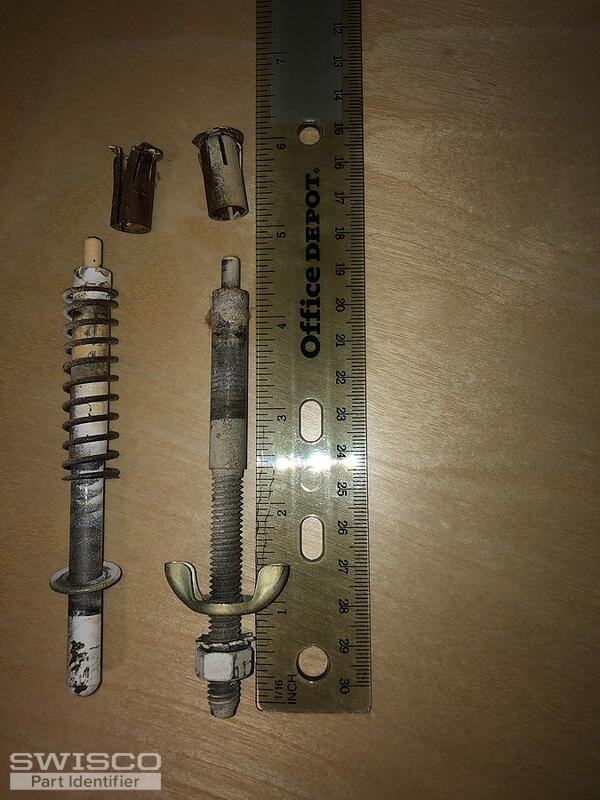

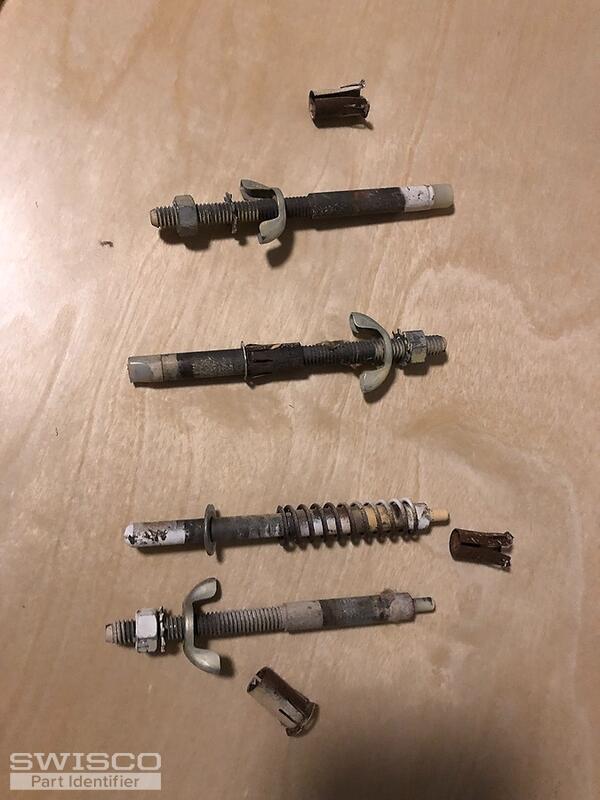

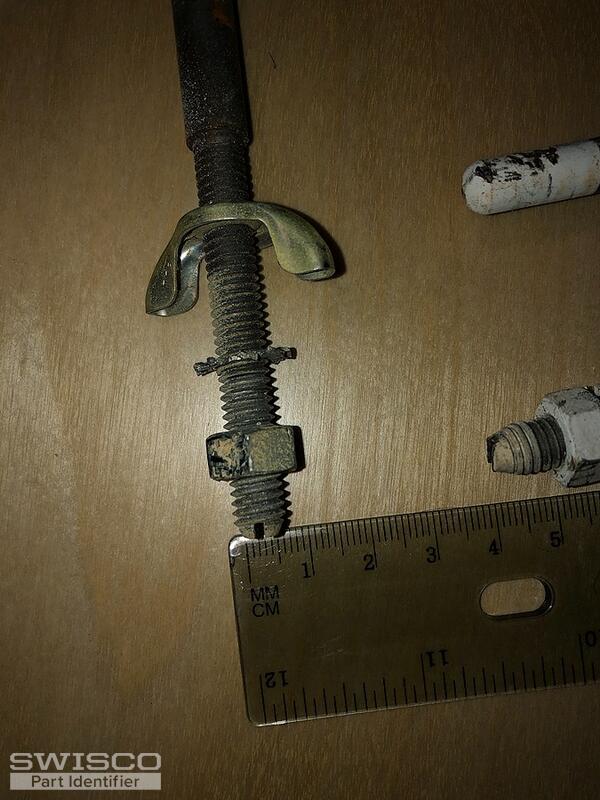

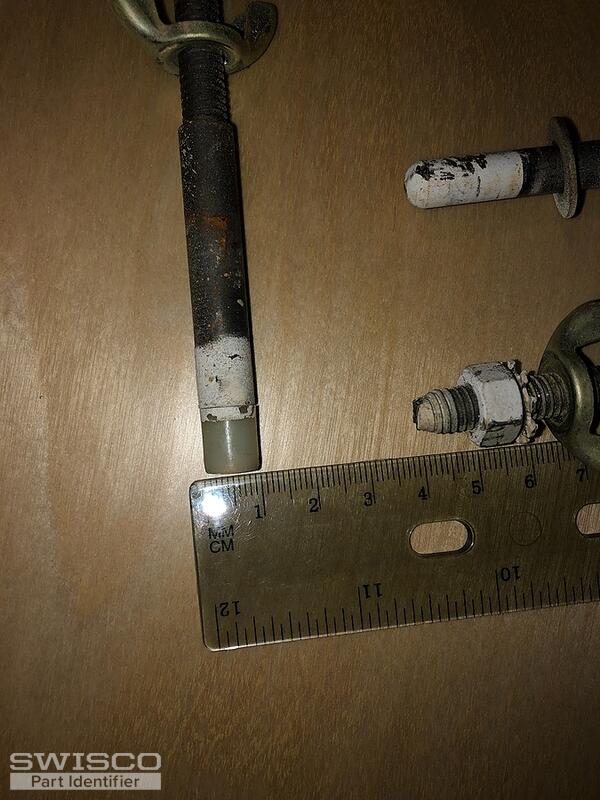

- I've attached photos of the pivot pins and guide pins below
- The photos have pictures next to a ruler
- I do not know the manufacturer and I already threw out the tracks unfortunately. Any help would be amazing. This is the first website I have seen that has anything even close.

Thanks!

5 user uploaded images

Paul from SWISCO

Jan 31, 2023 11:50 am

We suggest converting to Slimfold door pins. You will need to replace the tracks, along with the new pins. We've related the parts you will need on this page. We suggest doing one set of doors with a pair of tracks, one 21-002 bottom adjusting pin, and three of the 21-007 spring-loaded pins per panel. You will also need two of the 21-277 bumpers and if the old bushing is worn, see the 21-151 or 21-152.
