Need help finding these latches or another kind I can use

Home Owner from Batavia, ohio

May 9, 2019 12:02 pm

I need to order some new latches for my window screens. The same kind is preferable but another style that will work will be ok. The picture that the latch is out of the screen is broken on the smaller part that is inserted into the frame to hold latch in place so its suppose to be one piece and not 2. Then there is the second part as a whole piece. I need to order around 30 of the latches. Thank you for your time.

2 user uploaded images

6 Replies

Tim from SWISCO

May 10, 2019 12:42 pm

I believe you need our 70-211 screen turn clip. Take a look and let us know how the dimensions stack up to yours.

Home Owner from Batavia, ohio

May 13, 2019 11:13 am

Thank you so much for getting back with me. That turn clip looks like it will work but just need couple more dimensions like the hole size and hole depth. My dimensions I believe for those are hole depth 1/4 and hole size 3/16. Can you tell me if that clip has the same. I'm excited to have you help me so I can get started on this project, thank you so much!

Bob from SWISCO

May 13, 2019 2:58 pm

We're glad to help! Now, I'm afraid I can't get you an exact measurement right now, but we've seen this turn clip come up before in past discussions, and the 70-211 has been a reliable substitute. Just to be safe, I've conferred with some of my colleagues, and we are highly confident that the 70-211 will work for you. Let us know if you need anything else!

Quick Learner from Batavia

Sep 26, 2019 8:31 am

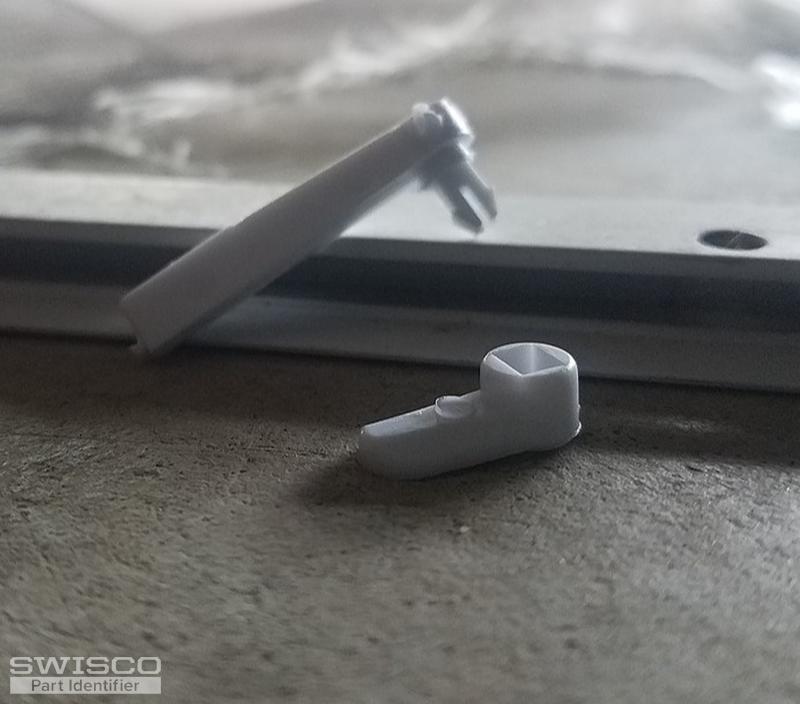

Can you tell me how to attach the 70-211 screen turn clip in. I can't get the smaller part of the clip to fit in between the frame in order to fasten the top onto it. The clip you sent me is an exact match of the old ones so thank you for finding the exact kind I need. Do i possibly need a rivot gun?

2 user uploaded images

Dave Sr. from SWISCO

Oct 1, 2019 10:44 am

I agree, it is a little tricky installing the 70-211 clip in my experience. What I've done in the past was to open up the side groove a little to install the internal piece into the frame. Once I got that into the frame, I would use a set of pliers to close up the gap just enough to hold it in place. If it's too tight it will make it hard to turn the clip once you install the thumb turn part.
