Spiral balance and plastic shoe

Home Owner from Tennessee
May 1, 2020 11:58 am
Spiral tube 3/8" x 28" red tip with tilt

Spiral tube 3/8" x 15" red tip with tilt

Pivot Bar see pictures

Spiral charging tool 75-005

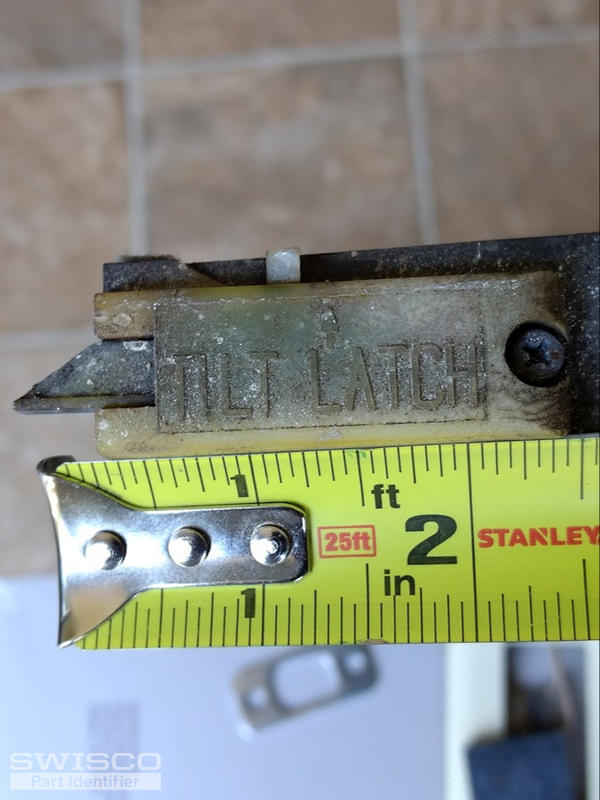

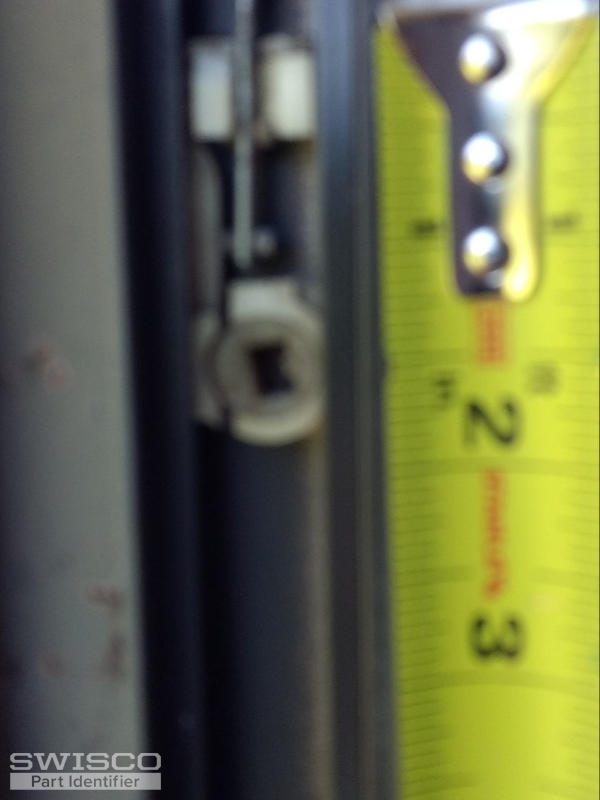

IMG_20200501_103611425 IMG_20200501_103816513_BURST000_COVER_TOP IMG_20200501_104431128 IMG_20200501_103847644 IMG_20200501_103750191
5 user uploaded images
1 Replies
+ Add a Comment
Tom
Tom from SWISCO
May 5, 2020 10:00 am
SWISCO
EXPERT

Looks like you need a few different parts. Start by looking at our 15-045 pivot shoe, 26-041 pivot bar, 26-175 and 26-158 tilt latches, and finally our S900-15 and S900-28 spiral balances. Carefully review the information we show for each product and let me know if you had any questions.

+ Add a Comment
