Need help identifying

Quick Learner from Arcata ca
Sep 3, 2022 4:19 pm

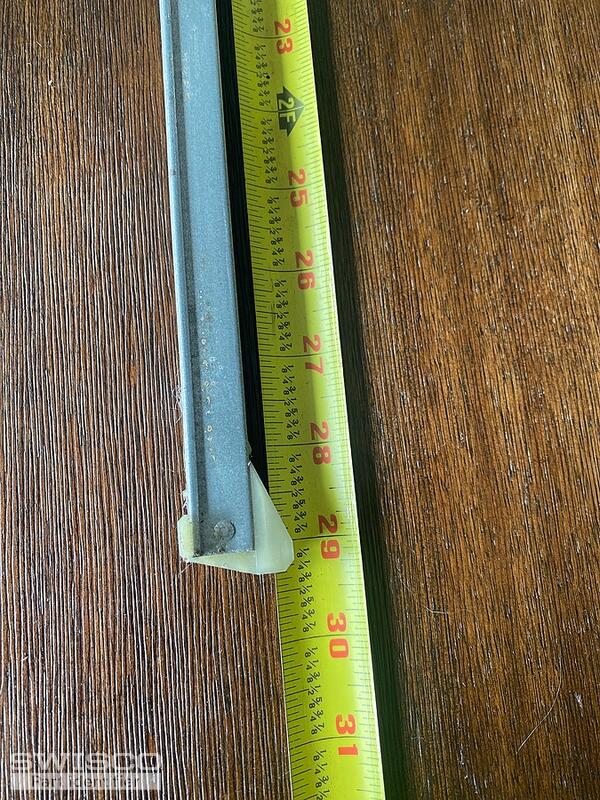

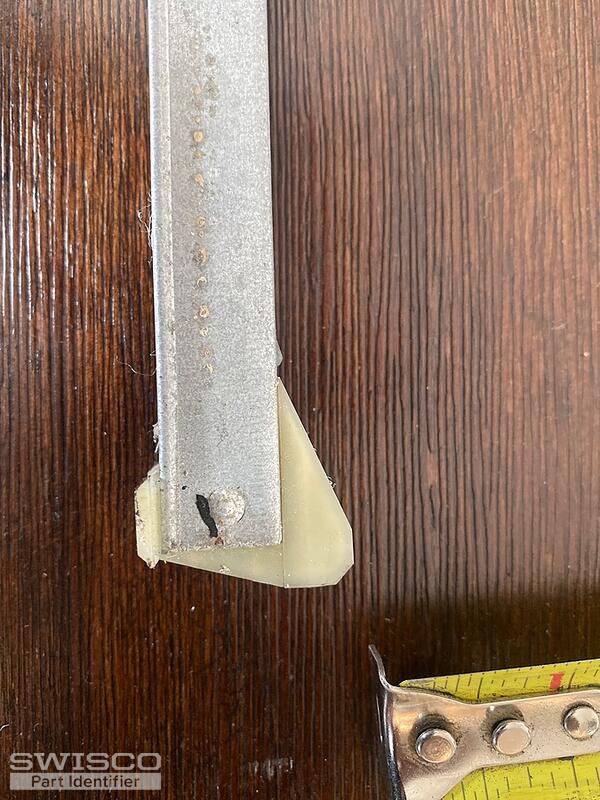

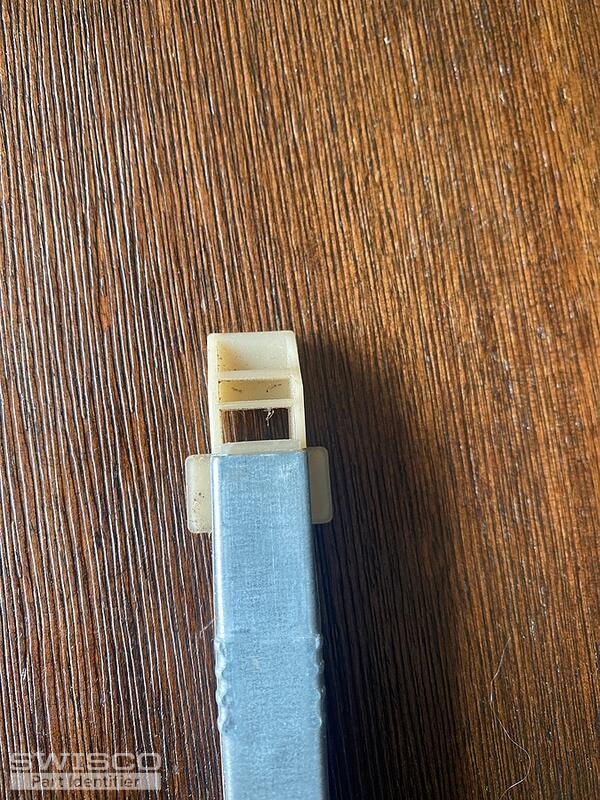

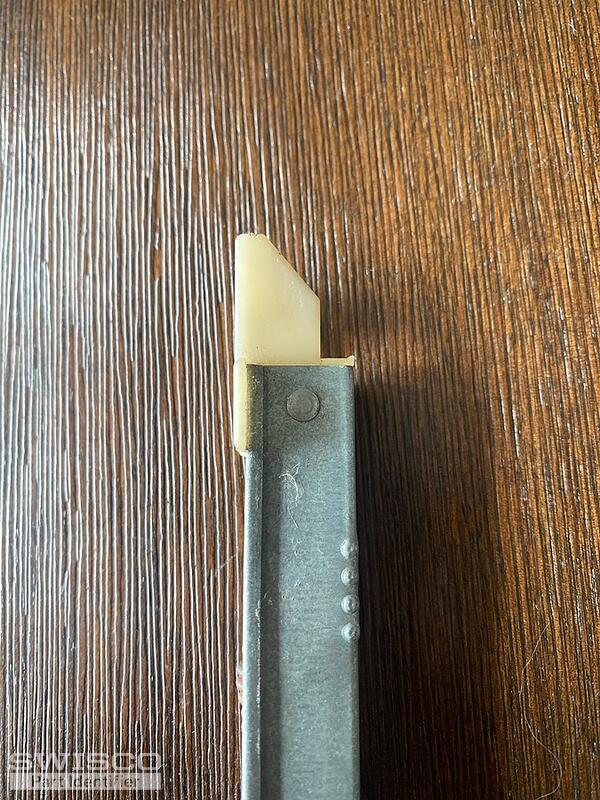

Hello I hope you can help me identify what I need to use to replace the part. It has a stamp 28 4 JR Caldwell
image image image image image
5 user uploaded images
1 Replies
Casey
Casey from SWISCO
Sep 6, 2022 2:30 pm
SWISCO
EXPERT

Hello,

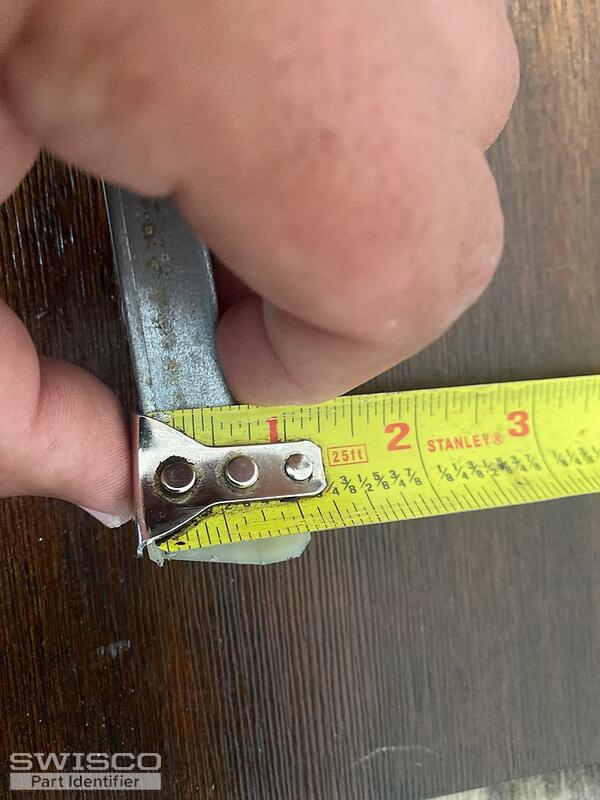

With this combination of attachments, you could have either an S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2840 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
