Need help identifying part numbers for double hung windows

Question

Hello,

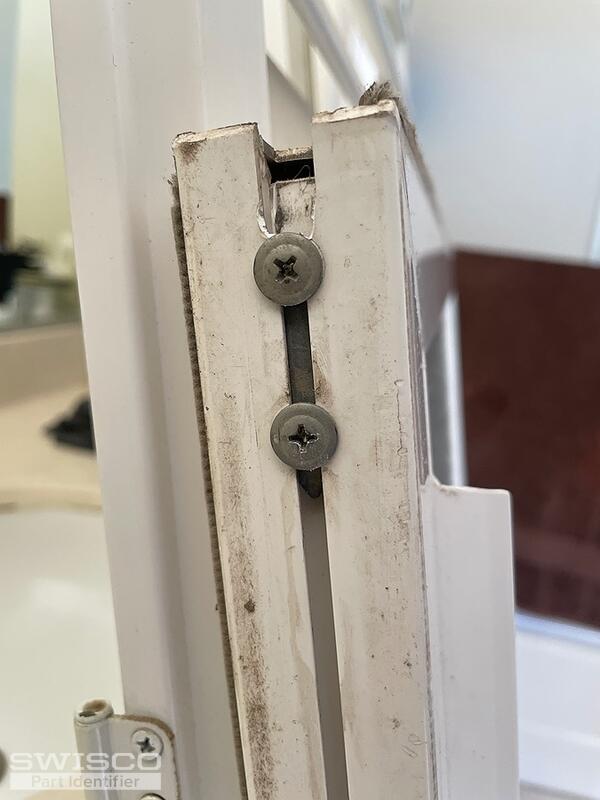

Please see pictures attached of double hung window components that needs to be replaced. 4 window pivots, 4 window alignment slides and 4 15l window sash spring/catch?

Appreciate in identifying with appropriate part numbers for order.

Thank you

Emily · Accepted Answer

Hello there!

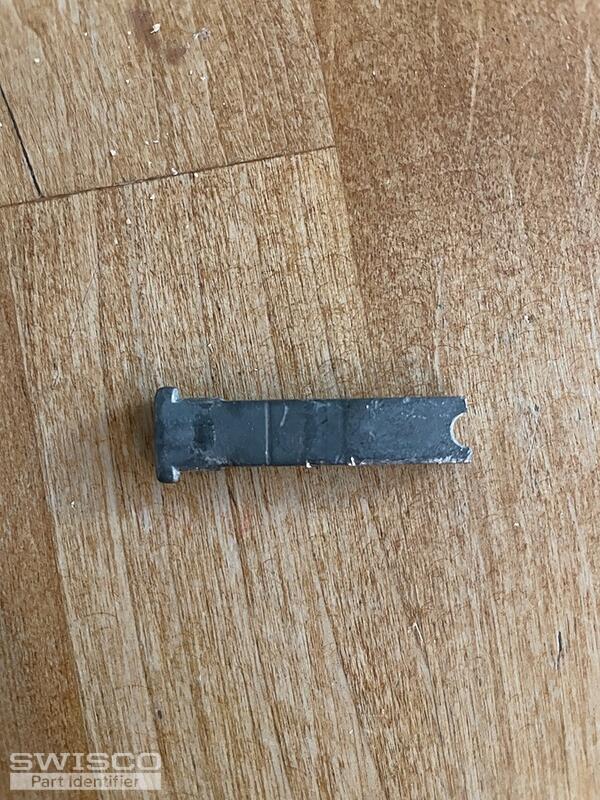

The pivot shoe looks like the S140-15. A pair of these will support a sash weighing 29-30.99 lbs. We don't sell your exact pivot bar but the Series 140 is compatible with the 26-398 and 26-405. You'll just want to make sure at least one of the old installation hole placements aligns with one of ours.

As for the tilt latches, start by taking a look at the 26-243 and 26-244. We recommend you remove an undamaged latch and compare the specifications to see if they match up.
