Need help identifying parts

Handy Person

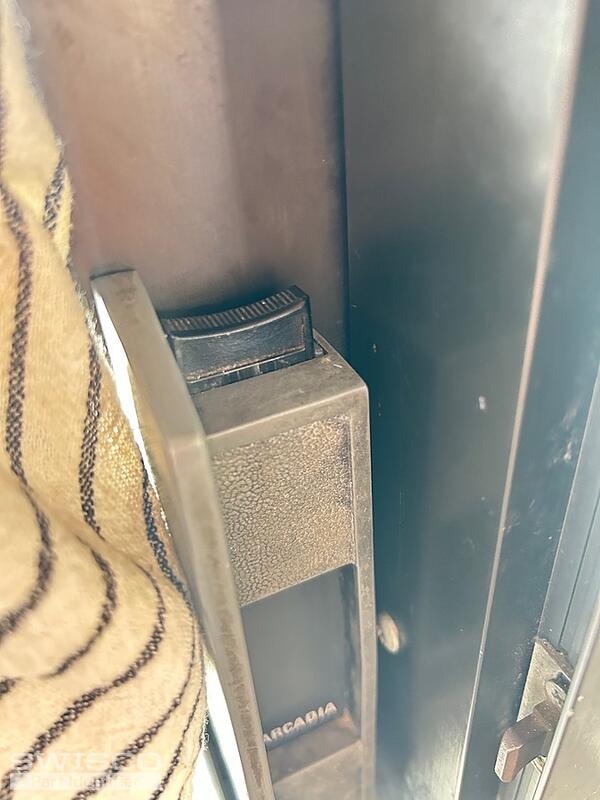

We have 2 sets of sliding glass doors from the 1950's or 1960's with Arcadia handles with locks.
The handle mounting holes are 6 1/2" apart.The screws in the door jam holding the lock mechanism are about 4 1/4" apartThe handles are about 10" tall.
Please see attached pictures for reference.
We would like to purchase 2 complete sets if possible.
Thank you in advance,
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Unforutnately, we do not carry suitable replacements for the patio door hardware shown in your photos. Our best option would be to see if you could install a surface-mounted handle set like the 82-005, which would bypass the need for an internal mortise lock. Keep in mind that you would need to make new installation holes in the door and see if you have space to install one of the keepers that come with the assembly. Take a look and see what you think.

Alternate image for 82-005
Alternate image for 82-005

Profile view of the 82-005 handle set
Profile view of the 82-005 handle set

Demonstration of the lock interacting with the included keeper.
Demonstration of the lock interacting with the included keeper.
