Need help identifying pivot pins

Question

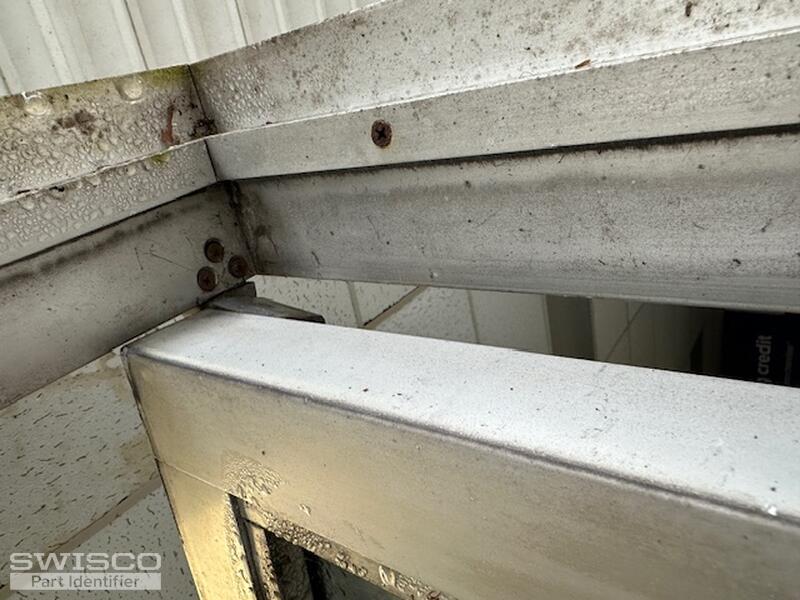

The left door is hinged on the left and opens outward, while the right side is hinged on the right and opens inward.  I do not see any markings on either.

Dave Sr. · Accepted Answer

Hello,

Take a look at the 79-128 commercial door pivot used on Arch Aluminum doors. Your pivot mounting holes seem to line up except for the bottom threshold pivot. The holes in the side jamb appear to be horizontal. The holes in the side jamb for the 79-128 are vertical. You might need to drill new installation holes in the side jamb. Also, your existing pivot might not have the same side vertical leg. Review the specifications of the 79-128, along with the related video to determine if this might work for your application. Thanks for posting!
