Need help identifying the correct replacement channel balancer

Quick Learner from Silverdale, WA

Apr 20, 2018 2:42 pm

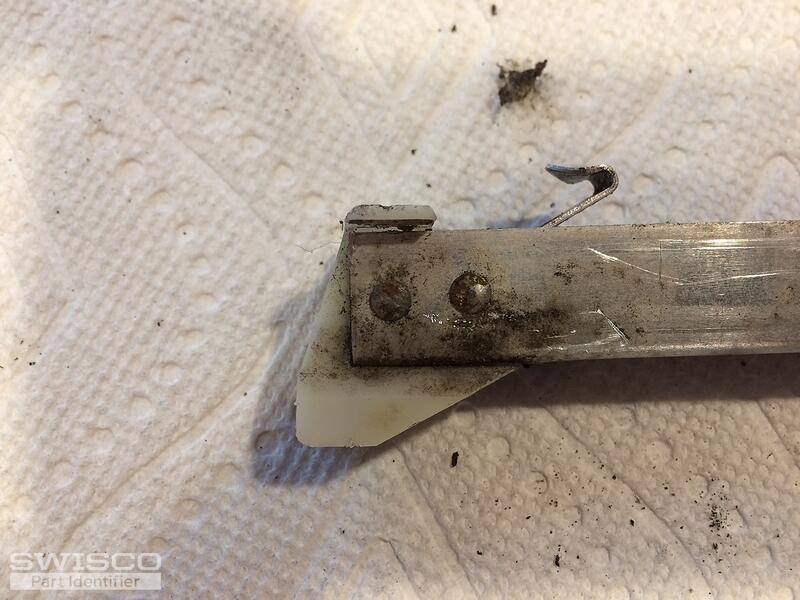

Please see posted pictures. I measure the ones I removed, and they are 28" in length and 1/2" wide. Could you please give me the correct replacement part number.

Weight of the sash 19 lbs.

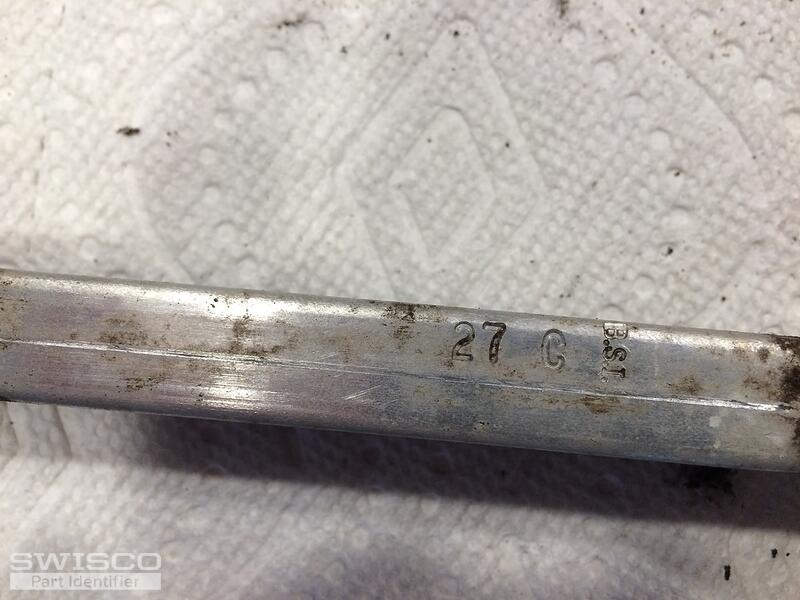

Note: There is also a stamped letters and numbers on the old piece "b.s.i." and "27 C"

Thanks,

Chris

5 user uploaded images

6 Replies

Paul from SWISCO

Apr 23, 2018 12:20 pm

Hi, Chris. You may be able to use our S385-28 channel balance that has a bottom balance shoe with a 1-3/32" measurement. Let us know if this will work. For your stamping of "27 C", you can use our 2730 option.

Quick Learner from Silverdale, WA

Apr 23, 2018 3:15 pm

Sounds good, I will take a look at the depth of my existing rail and see if the size is 1-3/32".

If it is I will put in the order to the S385-28 2730 part.

Thanks for your help.

Paul from SWISCO

Apr 24, 2018 11:16 am

You're welcome! Good luck with your repair.

Quick Learner from Silverdale, WA

May 1, 2018 11:11 pm

Just got the replacement channel balancers, and they fit perfectly! Thanks for your help.

Chris

Paul from SWISCO

May 2, 2018 11:14 am

You're welcome, Chris. We wish your windows a long, healthy life, and we hope you'll think of us next time you need to touch them up!
