Need help identifying these parts

A quick learner from Delran, nj says:

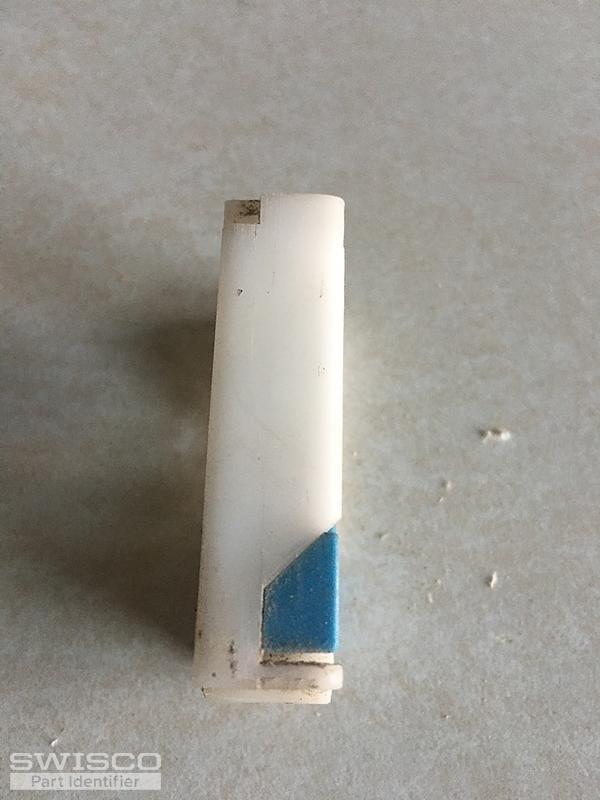

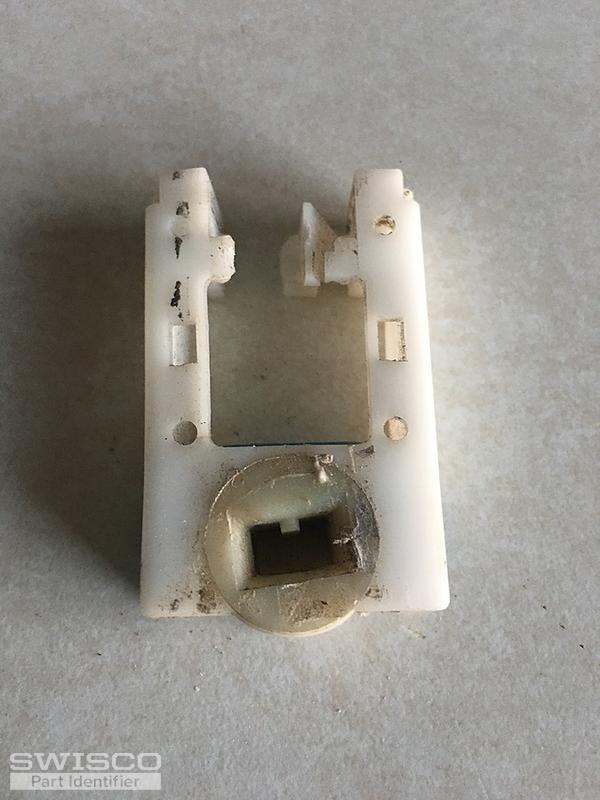

I hope you can help me identify these parts
Thumbnail of the uploaded file named C5EBD4EE-1567-463D-BF8B-12799E2D9946.jpeg
Thumbnail of the uploaded file named 0D77264E-4E4A-4A55-8AD1-5B2E18D4922A.jpeg
Thumbnail of the uploaded file named B552BCF4-E193-4298-B639-6AE4AA93053A.jpeg
Thumbnail of the uploaded file named F134F7E0-FCFF-4CA4-A8EA-EB8D35BBD8B0.jpeg
Thumbnail of the uploaded file named C07D9CDC-36D3-4474-8EE6-120E9E4FD9BA.jpeg
Profile picture of Tom
Tom from SWISCO responded:

We can definitely help. Before I recommend anything, can you tell me the diameter of the outer tube? Can you also tell me how thick that shoe is? Thanks!

A quick learner from Delran, nj says:

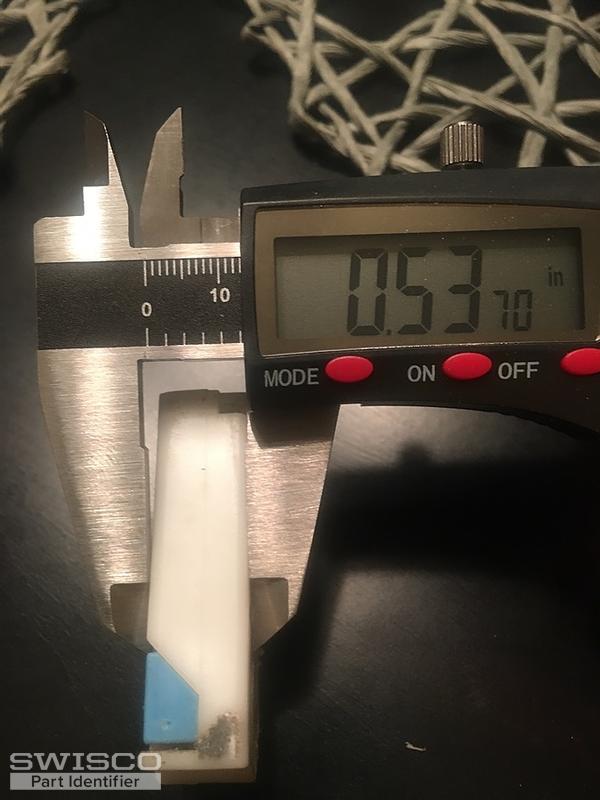

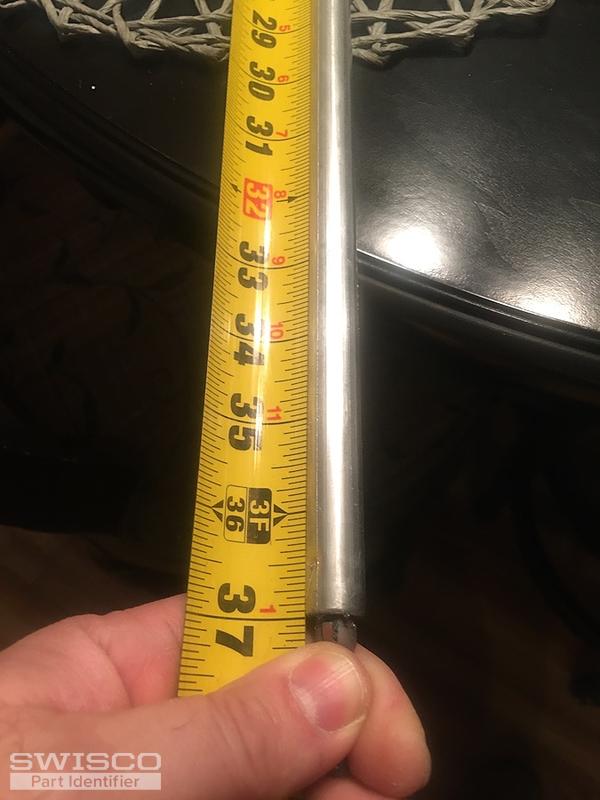

The tube is 37" long and 1/2" in diameter the shoe is 1/2" thick and 2" long
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks! If the shoe is 1/2" thick, then I recommend the 15-046 . I recommend double checking the diameter of the balance. For this style, there are only two sizes: 3/8" and 9/16". There is no 1/2" balance designed like yours.

If your balance is 9/16", then I recommend the Series 600 .

A quick learner from Delran, nj says:
Great thanks so much
