Need help identifying this balance

Handy Person from Mesa, Arizona
I have a 13 year old house and I have no idea who the window manufacturer was. Here's a picture showing the model number? of a balance I removed from one of the windows. I have additional pictures of base and top plastic/nylon connectors if needed. I not yet weighed the sash, but I can if needed.

I would like to buy 6 replacements. Can you please recommend an appropriate replacement.

Thanks - Mark

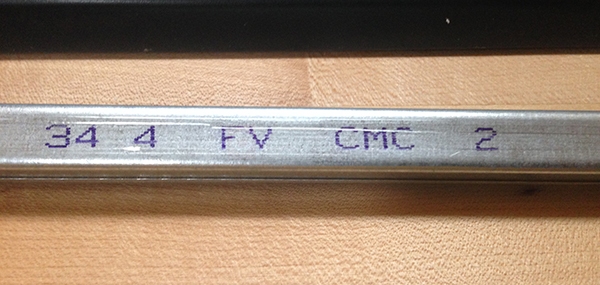

User submitted a photo of a window balance.
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert
This is not the model number, it's just the stamp. All it tells us is the strength of the spring and the length of the metal channel (35"). I recommend that you look at our Channel Balance Home Page and follow the steps in order to find the Series that best matches what you have.
Quick Learner from Mesa Arizona
I visited the home page and ended up with the following identification:

Channel width = 1/2"
Channel length = 35"
Series 395 with 19-005 top and 15-001 bottom

Based on your previous comment about the stamp on the channel of the old balance indicating spring strength, how would I pick a new part to order with a comparable or identical spring strength (what part number would I order)?

Thanks - Mark
Tom
Tom from SWISCO
SWISCO
Expert
Sounds like you have an S395-35 channel balance with a 3440 option. Please review this hardware and let me know if you agree.
