Need help with replacing this part

Home Owner from USA

Apr 6, 2016 2:13 pm

I believe I can use your 82-005 and just purchase the interior part. I know yours is a different color and does not have the night lock button you see on mine which is fine as long as it will marry with my door and existing outside handle and lock.

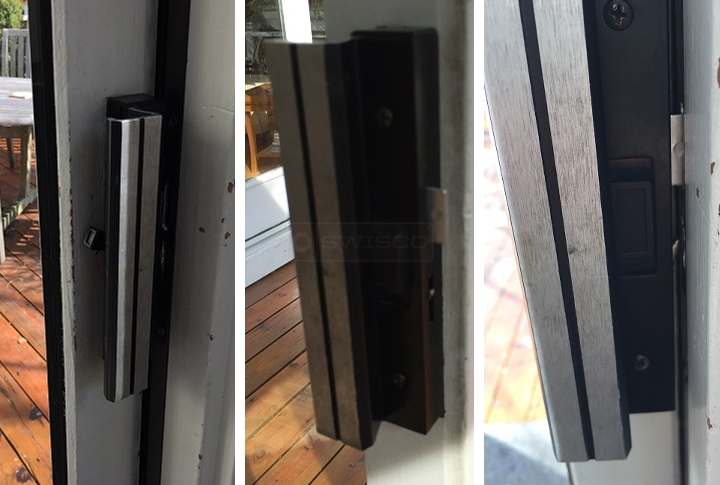

User submitted photos of patio door hardware.

3 Replies

Dave Sr. from SWISCO

Apr 8, 2016 10:06 am

The 82-005 definitely looks close. How do the installation holes match up? The holes on the 82-005 are 4-15/16" apart, measured from the center of each hole. If yours is the same, then this is could be a good choice.

Professional from California

Apr 8, 2016 12:34 pm

I haven't run into this handle, but I think it uses 82-225. Dave should be able to verify. If you get the 82-005, make sure the distance from the face of the door is compatible with your strike.
