Quick Learner from CT

Sep 16, 2025 4:41 pm

I need help with what hardware I need to repair my window cranks

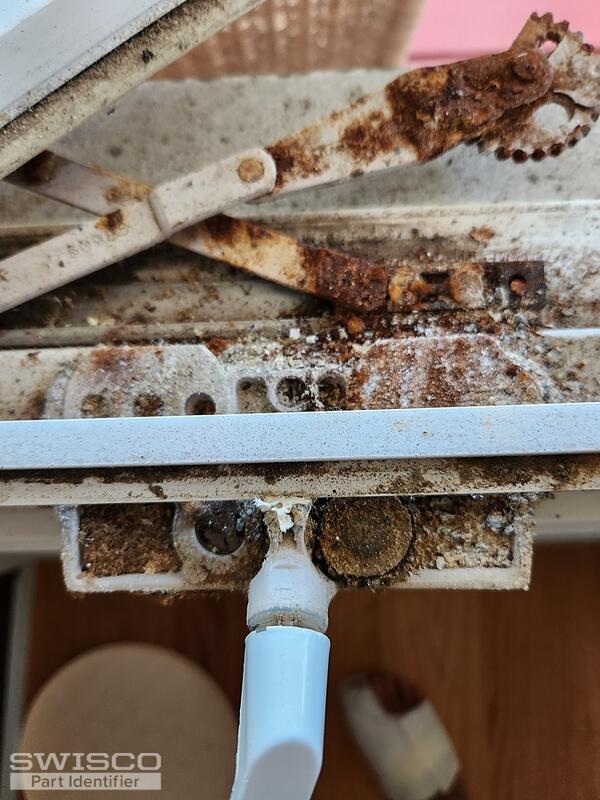

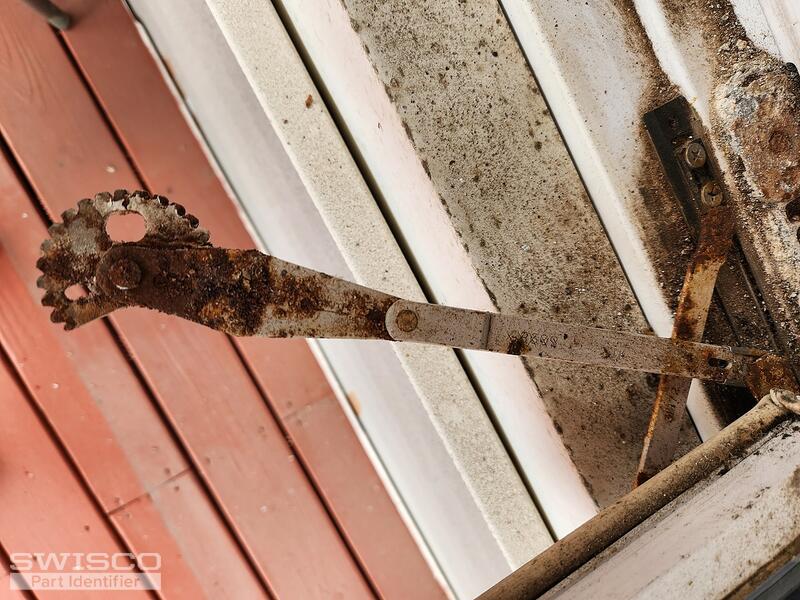

5 user uploaded images

4 Replies

Paul from SWISCO

Sep 23, 2025 11:37 am

Thank you for reaching out to us. Take a look at the 39-036 operator, along with the 36-048 10" hinge. Review the specifications for these parts and see how they compare with your old hardware.

If you'd like us to ID the stud bracket, we must see a clear photo of the whole part.

Note that it's best to replace the top and bottom hinges at the same time.

Dimensions for 39-036

Detail of 36-048

Additional dimensions for 36-048

Quick Learner from CT

Oct 2, 2025 4:35 pm

Everything seems abour right except for the part you have marked 3 15/16" mine seems to be 5 1/2 ". I took a few more pictures that I will attach. Are these still the parts I should order?

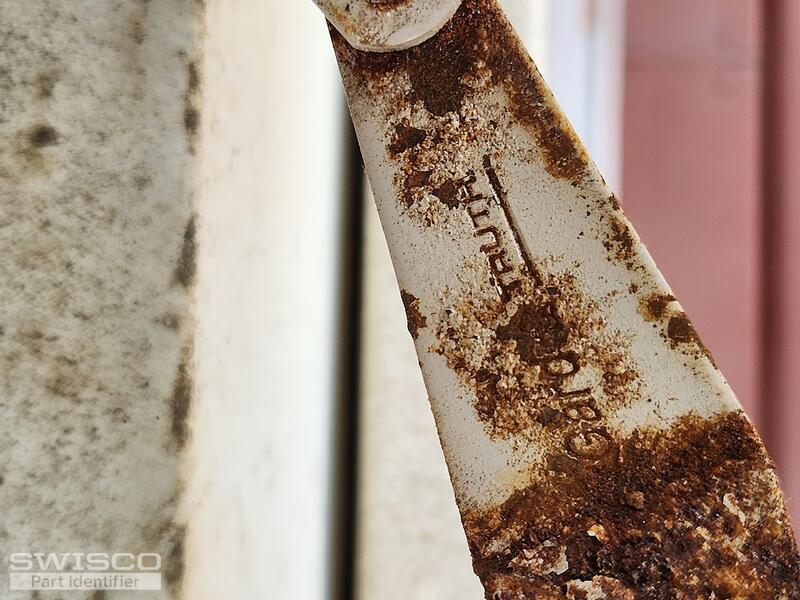

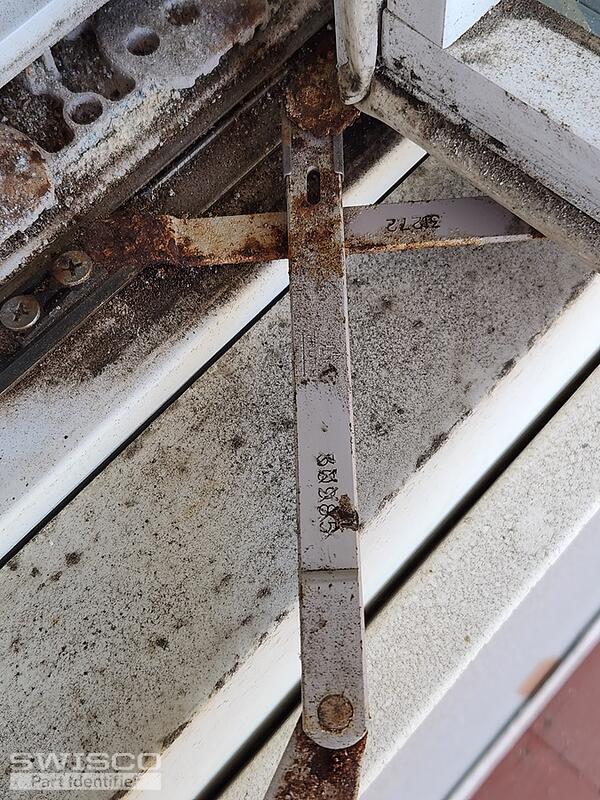

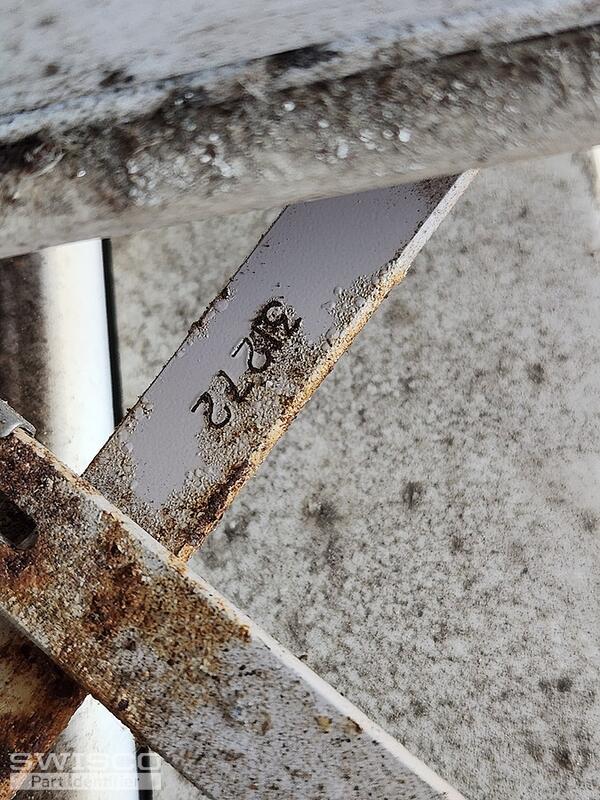

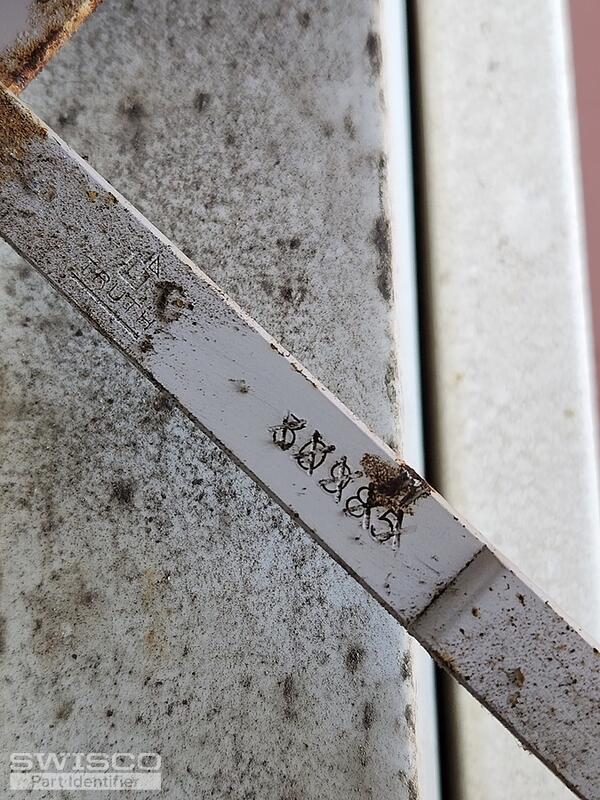

4 user uploaded images

Dave Sr. from SWISCO

Oct 6, 2025 8:14 am

Have a look at the 39-382 operator. This has a link arm that measures 6-1/2" from hinge center to installation hole center. It lacks an offset, however. Review the specifications and see if you think this could be a better match.

Alternate image for 39-382
