Need left and right balances for this window

Start a new Discussion

Quick Learner from Indiana

Aug 3, 2021 10:18 am

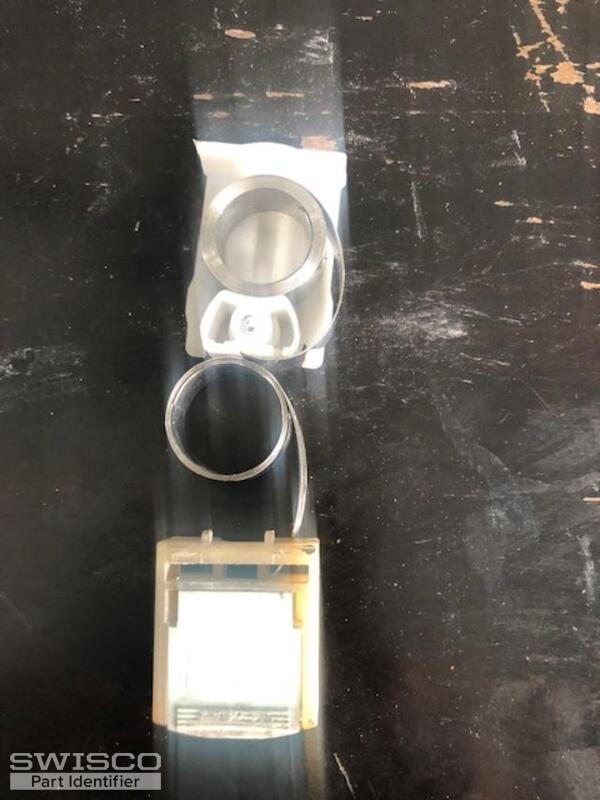

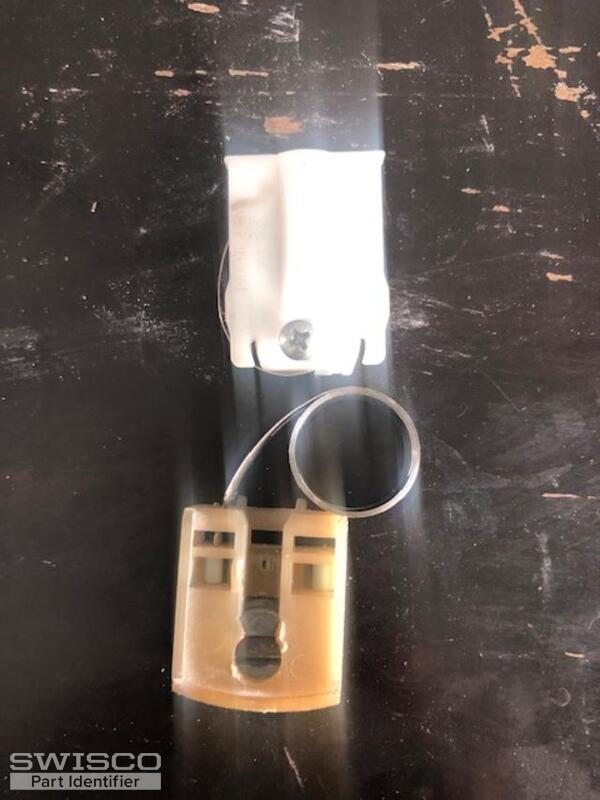

This is a small vinyl single tilt window in a kitchen. It won't stay up. I don't

know much about these parts, but it appears it is a double coil balance system.

Is there a replacement part that will work?

Thanks,

Wes

5 user uploaded images

4 Replies

Emily from SWISCO

Aug 6, 2021 1:14 pm

Hey, Wes.

Take a look at our 15-199 pivot shoe, which uses the Series 160 and Series 165 coil springs. Compare our dimensions to yours and see if this matches what you need.

Quick Learner from Indiana

Aug 6, 2021 1:23 pm

Thank you. Are there instructions included how the shoe and coils work?

What about the cover that screws down over the coils?

Tom from SWISCO

Aug 9, 2021 12:24 pm

These parts do not include instructions, no. I will post a video below that you may find helpful. It's the same balance system as what you have here.

That said, if you've never installed this kind of setup before then you may want professional help. Speaking from experience, replacing coil balances isn't a job for beginners. It can be difficult depending on the window.

Concerning the covers, you should be able to reuse your originals. If not then the cover you want to use will depend on whether you pick the Series 160 or Series 165. We show compatible covers for each under "Related Item(s)" on their respective store pages.
