Need new operators

Start a new Discussion

Quick Learner from Denver CO

Jul 25, 2024 6:26 pm

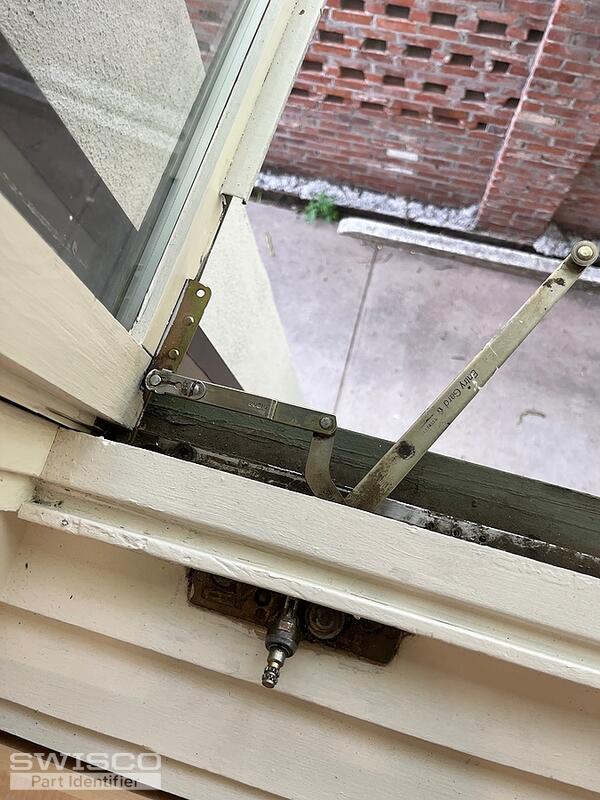

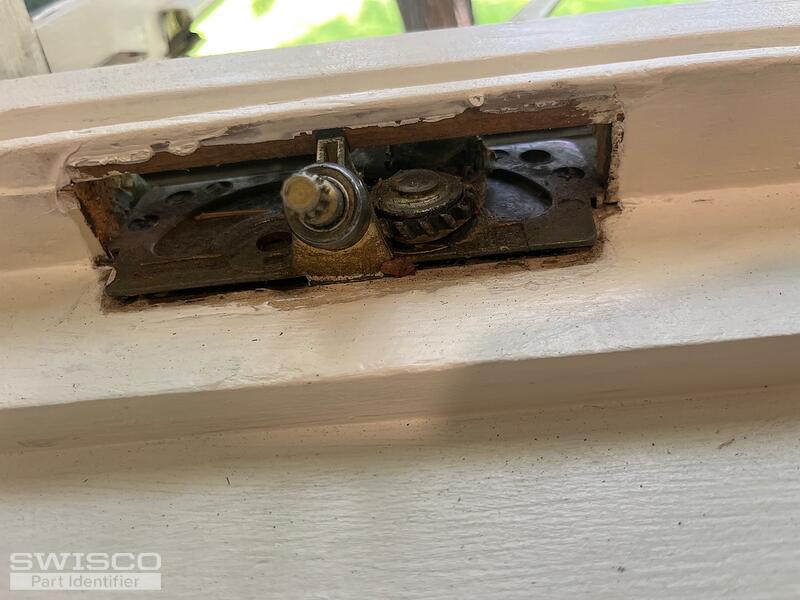

Please identify operators and get me price. Thanks.

5 user uploaded images

4 Replies

Lauren from SWISCO

Jul 26, 2024 11:05 am

Hello, thank you for posting,

Please start by reviewing the 39-031 and 39-032 or the 39-155 and 39-156 operators. The main difference between the two styles is the length of the short link arm. Please review the overall dimensions and match up the orientation to confirm a good fit!

Also see the 39-107 cover and 39-114L handle if needed. Let us know what you think and if you have any additional questions!

Quick Learner from Denver CO

Aug 9, 2024 3:32 pm

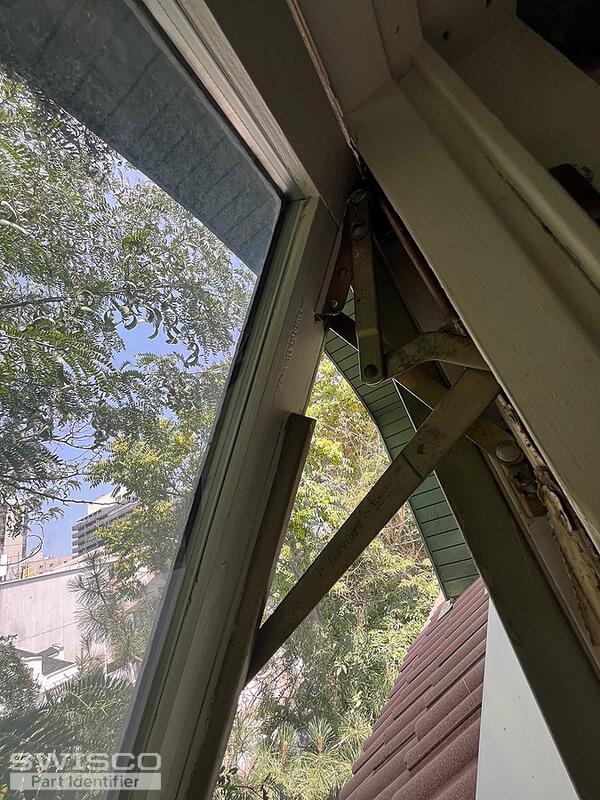

What about identifying this one?

1 user uploaded image

Lauren from SWISCO

Aug 9, 2024 3:56 pm

Hello,

It appears this operator is a similar style to the original above. You will need to measure the length of the short link arm and compare to confirm if it is the 39-031 and 39-032 or the 39-155 and 39-156 style. Let me know if you have any additional questions!
