Need new pulley block for counter balance or new counter balance.

Home Owner from USA

Dec 5, 2017 9:07 am

Please contact me if you have replacement parts that will work in my window. Will send pictures with this email.
Thanks
Jim

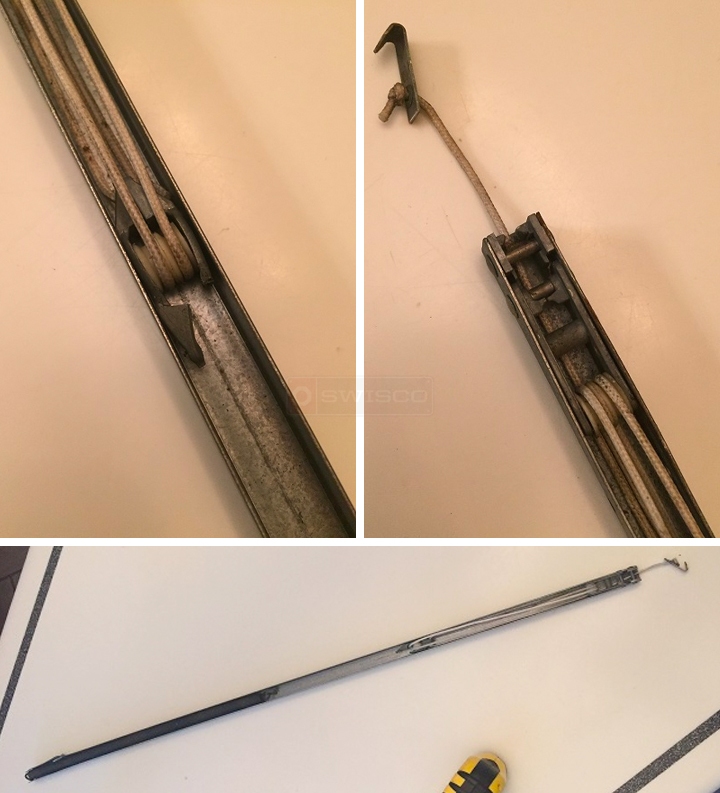

User submitted photos of a window balance.

6 Replies

Paul from SWISCO

Dec 7, 2017 1:57 pm

Thanks for your submission, Jim. Before we proceed, we need a little more information from you. We would need to know the length of the balance as well any stampings or markings that may appear on the metal portion of the balance. Once we have all of that information, we can continue our search for you.

Quick Learner from uS

Dec 15, 2017 2:07 pm

the length of the balance is 29 inches. 1/2 x 1/2 for the width. There are no stampings or markings on the balance. This balance is made for a tilt window. Any help would be great.

Paul from SWISCO

Dec 18, 2017 9:48 am

Thanks for the additional information. It appears you have the older type of tilt balance that used a a 62-105 hook. The photos you provided to us only show the back of the balance where you see the spring and pulleys. The stamped number of your balance should be located on the other exposed side of the balance. The first two numbers should read "28". We would need for you to provide us with the remaining numbers on the balance. If there should not be a stamped number on the balance, you would have to weigh your window sash and provide us with the weight of your window.

Quick Learner from USA

Dec 22, 2017 11:18 am

THE SASH WEIGHT IS BETWEEN 20 AND 21 LBS THERE ARE NO NUMBERS OR LETTERS.

Paul from SWISCO

Jan 3, 2018 10:35 am

Thank you! We will email you a special balance order link for 2 of these right now.
