Need new window balance

Question

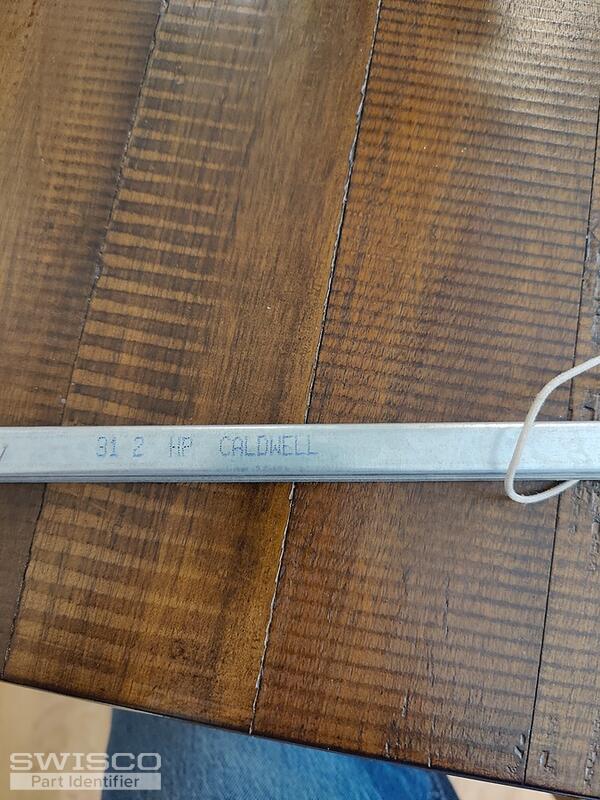

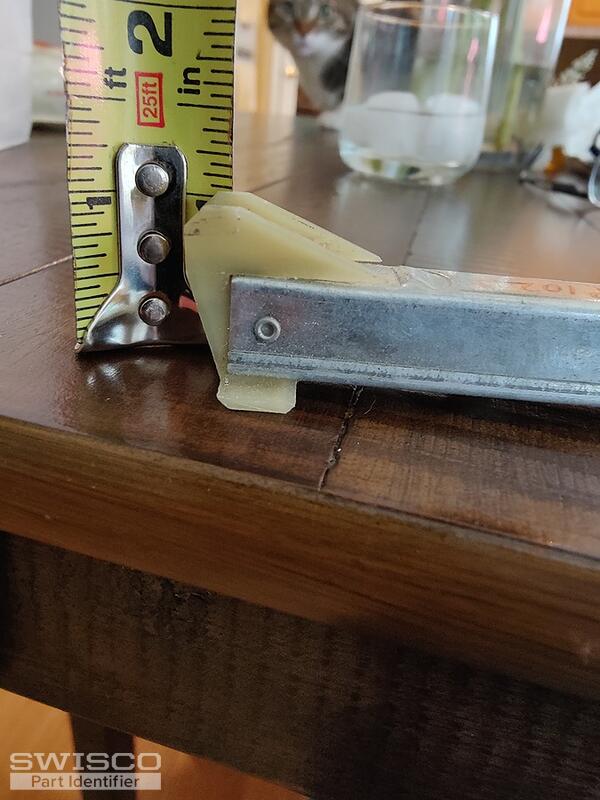

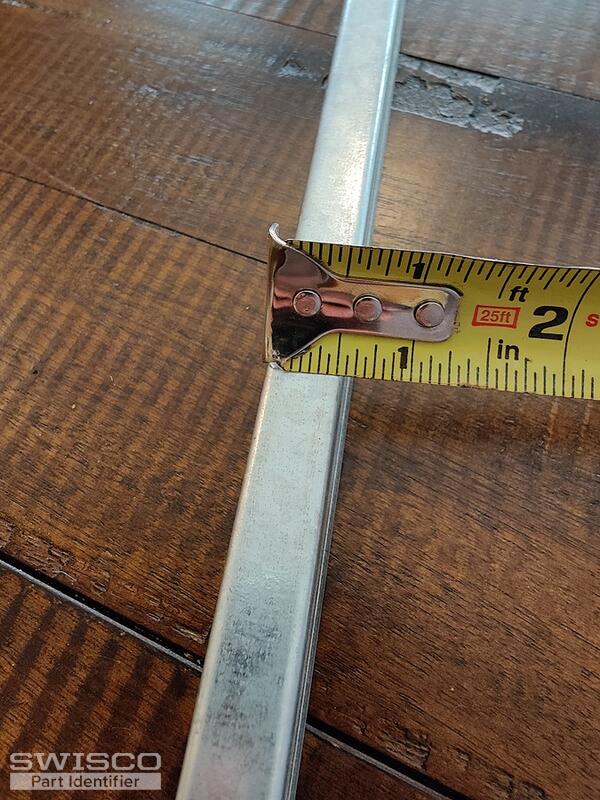

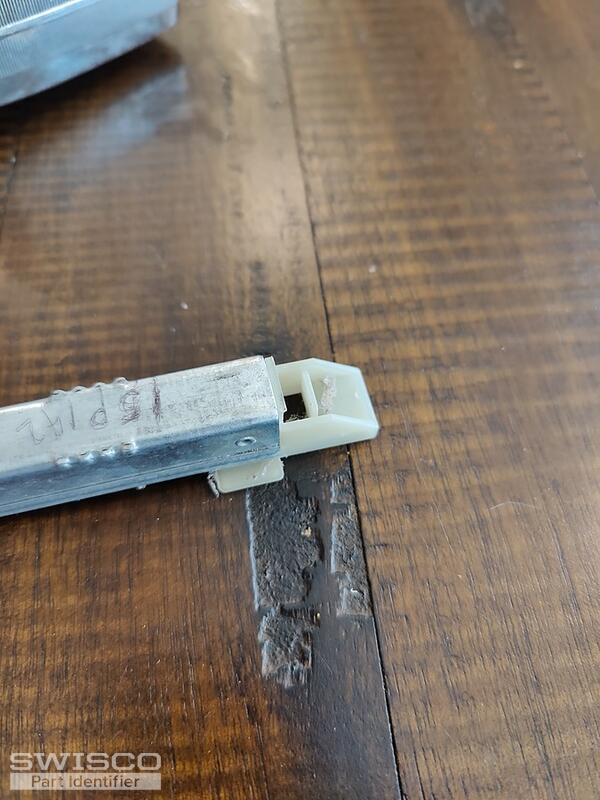

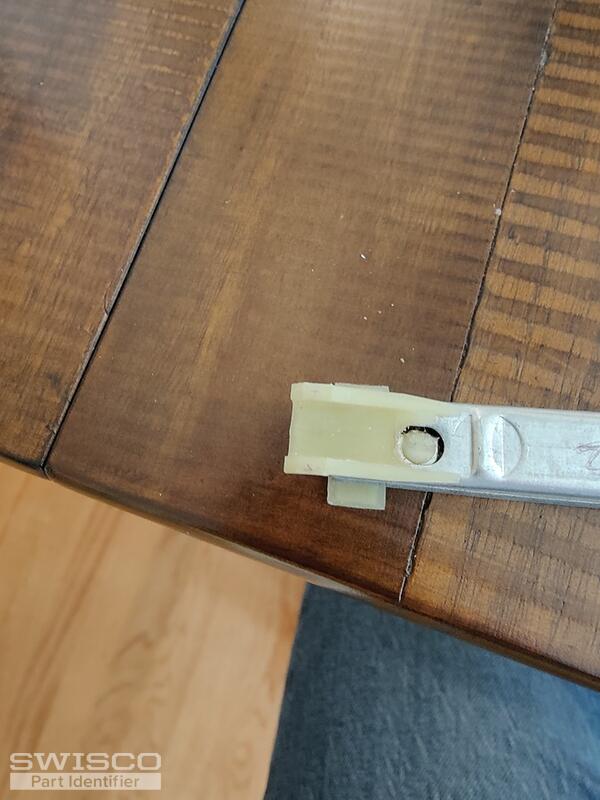

Needing to buy a new window balance. It measures 5/8" wide and 32" metal to metal. It's stamped 31 2 HP Caldwell. I have pictures of the ends.

Emily · Accepted Answer

Hi there!

With this combination of attachments, you could have either an S380-32 or S385-32 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 3120.

If you have any further questions just let us know!

Comparison of the S378, S380 and S385 balance shoes.
