Need parts

Question

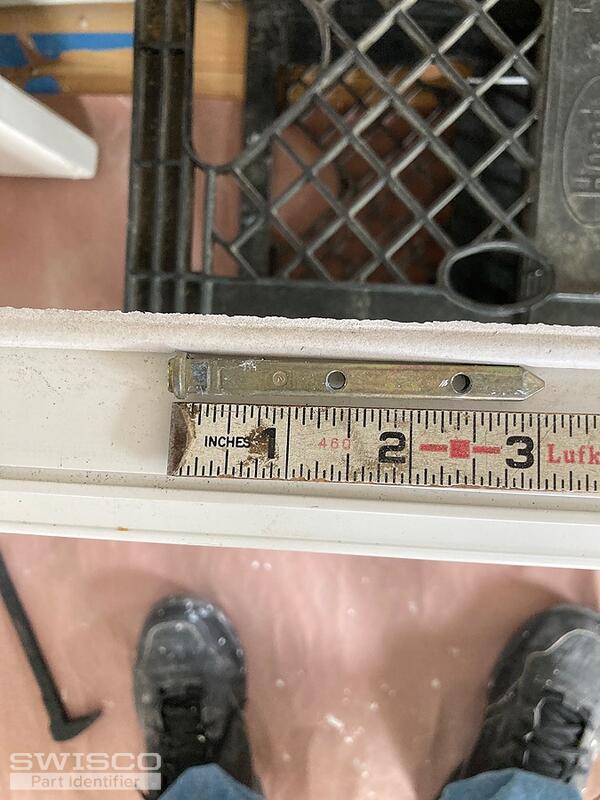

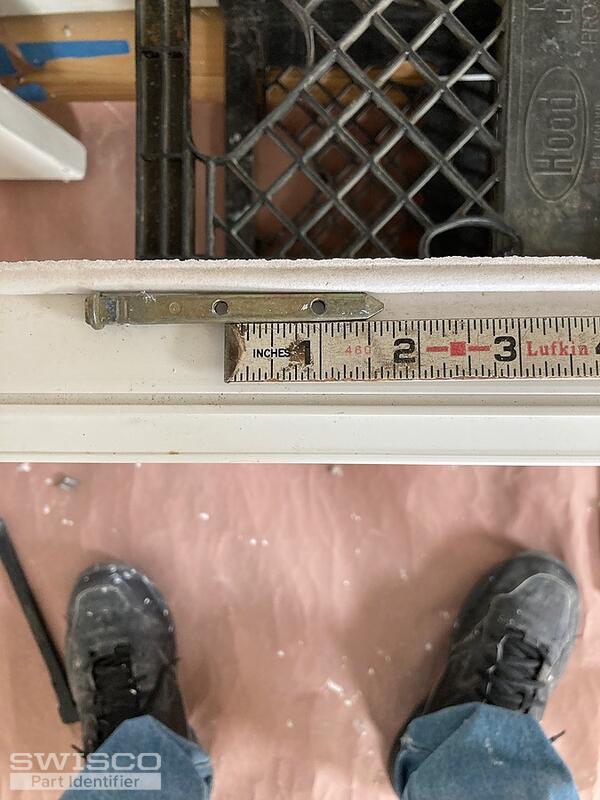

Alside double hung vinyl window. Need two pivot bars, four balances complete, two pivot shoes complete. Only marking on balance sping is the number 8 , the sash weighs 20 pounds.

Lauren · Accepted Answer

Hello, thank you for posting,

Your original pivot shoe has been discontinued, but we recommend reviewing the 15-177 as a replacement option. Compare the dimensions below to confirm a good fit!

Alternate image for 15-177

This shoe is compatible with the Series 152 coil springs. Did you have trouble with the window staying up or sagging?

If the coils are marked with an 8, that would indicate 8 pounds of support on each side, which would support a 16 pound window sash. If the sash weighs 20 pounds, we recommend stacking (2) S152-5 on each side to get to 20 pounds of support.

Also see the 15-143 bushing, 15-144 bushing cap and 15-145 support barrel for each coil spring.

For a new pivot bar, compare the dimensions of the 26-226 to see how it aligns. Let us know if you have any additional questions.

End view of the 26-226 pivot bar
