Quick Learner from Ankeny, Iowa

Nov 29, 2025 2:32 pm

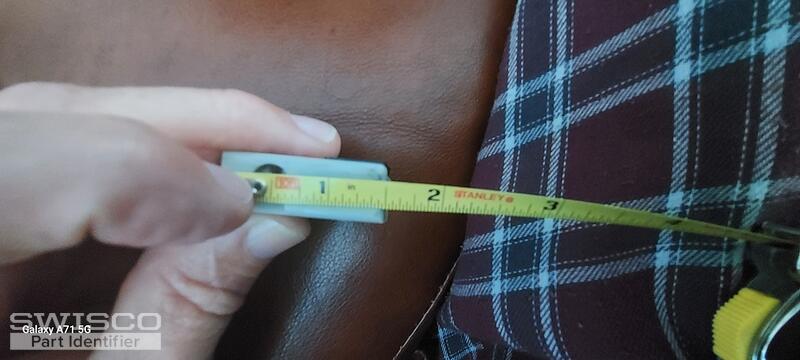

Need balance shoes and pivot pin.
Sent previos post with other parts and pics.

5 user uploaded images

4 Replies

Bob from SWISCO

Nov 30, 2025 12:35 pm

Hello there. The pivot shoe looks like the 15-177, which works with Series 152 Coil balance springs. For the pivot bar, see if the 26-030, 26-352 or 26-466 match what you have.

Alternate view of 26-030

Detail of 26-030

Alternate image for 26-352

Alternate view of 26-352

Dimensions for 26-466

Dimensions and closer look at 26-466

Quick Learner from Ankeny, Iowa

Dec 7, 2025 11:48 am

Will the 15-177 pivot shoe work with a 26-226 pivot pin?

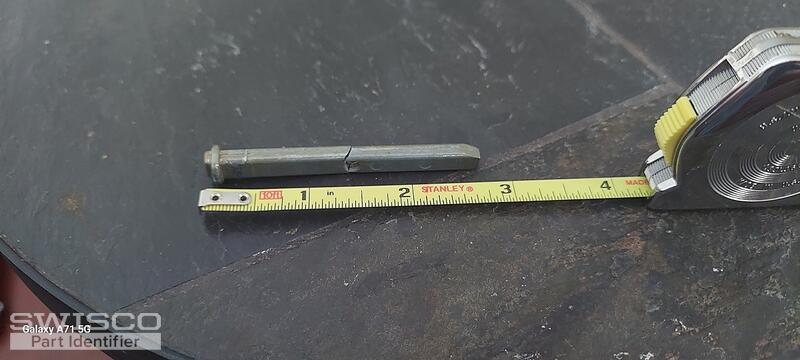

my original pin is 2.75 inches long. Can I use a shorter one like a 26-030? Or am I better off to use the longer 22-226 and grind the end to the proper length and shape?
scott

Bob from SWISCO

Dec 8, 2025 12:22 am

Yes, the 26-226 should work with the 15-177. But note that the overall length of a pivot bar isn't as important as the distance between the pin that fits into the shoe and the center of the mounting holes that are used in installation. Make sure you choose the best pivot bar listed based on that, rather than overall length.
