Need parts for single hung slider windows

Quick Learner from Collingwood, ON
I'm in need of replacement parts for single hung sliding windows and instructions for installing please
The glass /sash weighs 22 lbs so I will need the right coil springs too
please send recommended parts and instructions for installation
thank you

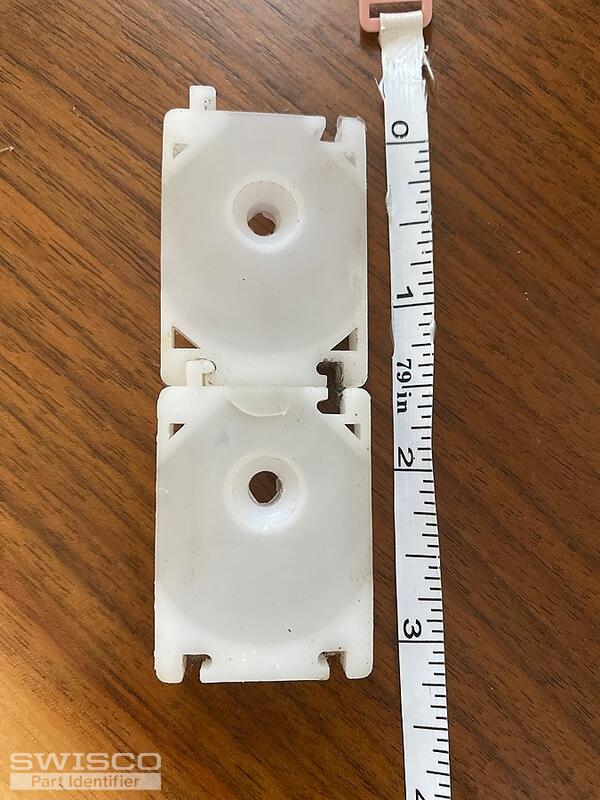

4 user uploaded images
2 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Thank you for reaching out to us. Your pivot shoe is a match for the 15-111 and you can use two S160-05 5.5-pound coil springs on each side of the window. 11 pounds of support on each side will total 22 pounds of overall support. If you need a new double coil support, see the 15-150D.
