Need pin (?) to attach operator arm to window

Quick Learner from Oakland, CA

Aug 23, 2020 6:33 pm

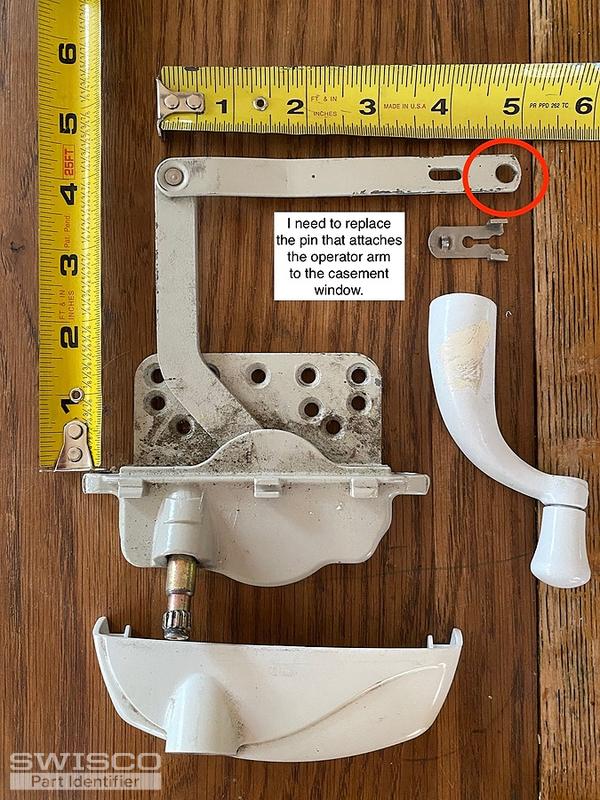

Howdy! My casement window operator arm is no longer attached to the window. It looks like I'm missing the pin that goes through the operator arm into the window. Can you advise?

Many thanks!

Stee

1 user uploaded image

2 Replies

Bob from SWISCO

Aug 26, 2020 2:56 pm

This operator looks a bit like our 39-316, although yours has an offset in the link arm that this replacement lacks. The 39-316 uses a detach clip like the 39-105, as well as the 39-545 and 39-546 Stud Brackets. See if these match what you have.
