Need pivot shoe
Hello,
We'd be happy to look into this for you but, unfortunately, we do not carry an exact match for the coil balance assembly shown in your photo. There's a chance that we may still be able to help but we would need you to write out the exact width and thickness of the pivot shoe to compare to our inventory. The numbers stamped on the coil springs are also important to determine the tension needed for the replacements.
It would also help to see an undamaged version of your pivot bar removed from one of the windows.
As for your tilt latches, we'll need you to write out the exact distance between the center of the installation holes to narrow down your options. Thank you!
The Coil is 1/2" Thick.
The Latches are in perfect condition.

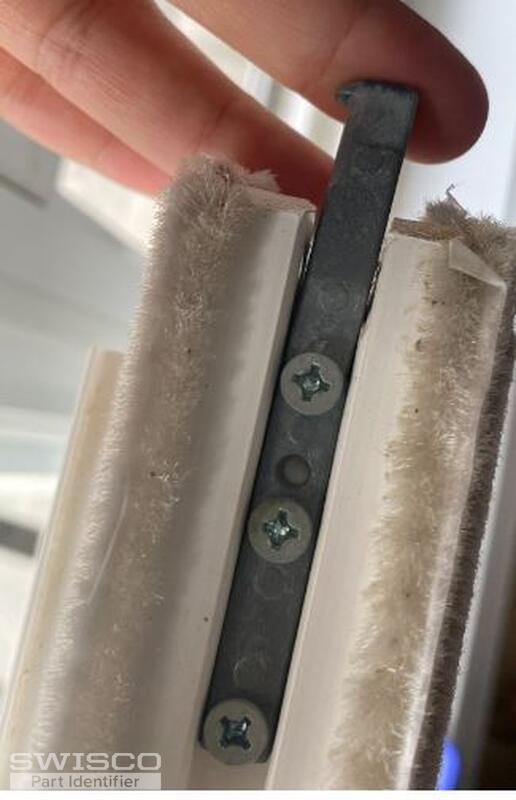

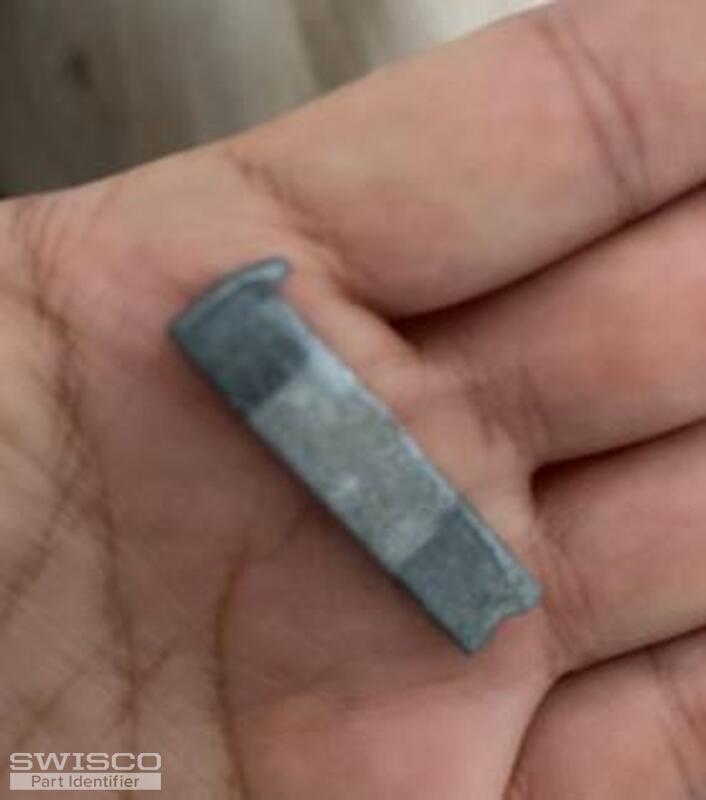

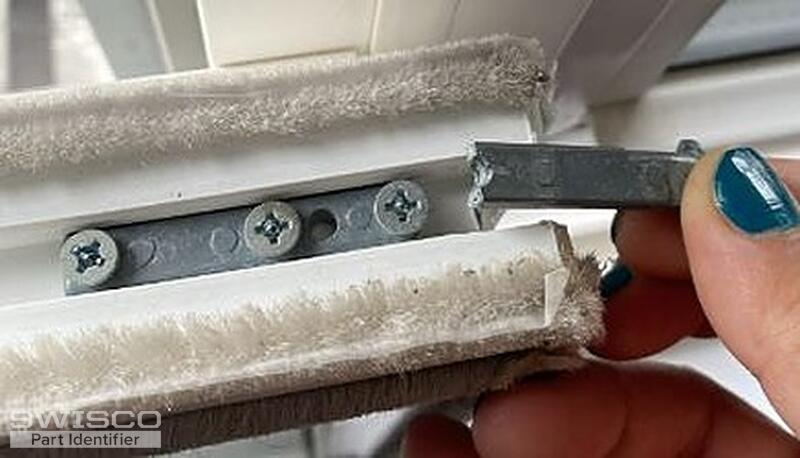

Also, need a Pivot Bar. Uploaded photos of it.
Your pivot bar resembles the 26-241. Your pivot shoe is similar to the 17/32" deep 15-199, which uses the Series 160 coil springs. We've also related some additional parts and media guides on this page to assist you.
