Casey from SWISCO responded:
March 21, 2019
Hi Kyle, we're happy to help with this, but we'll need to see your pivot bar removed from the window. In the meantime, you can view your options here. |

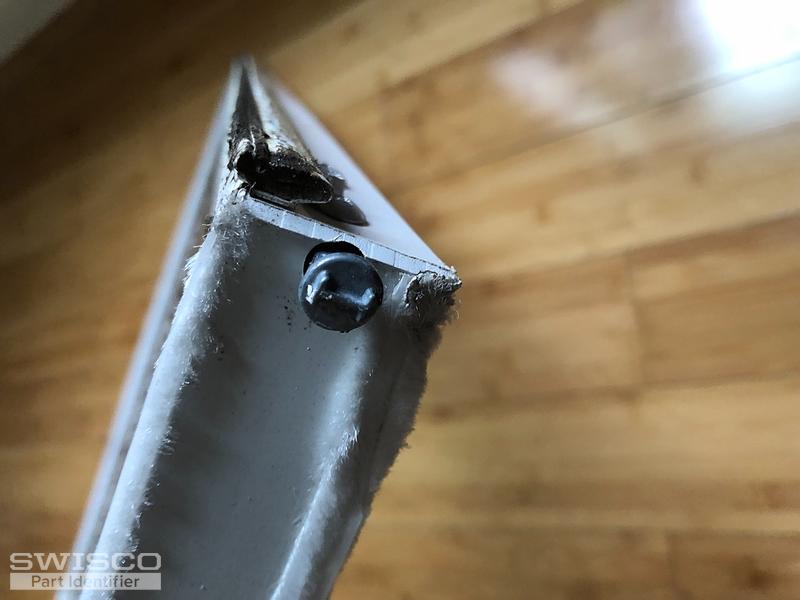

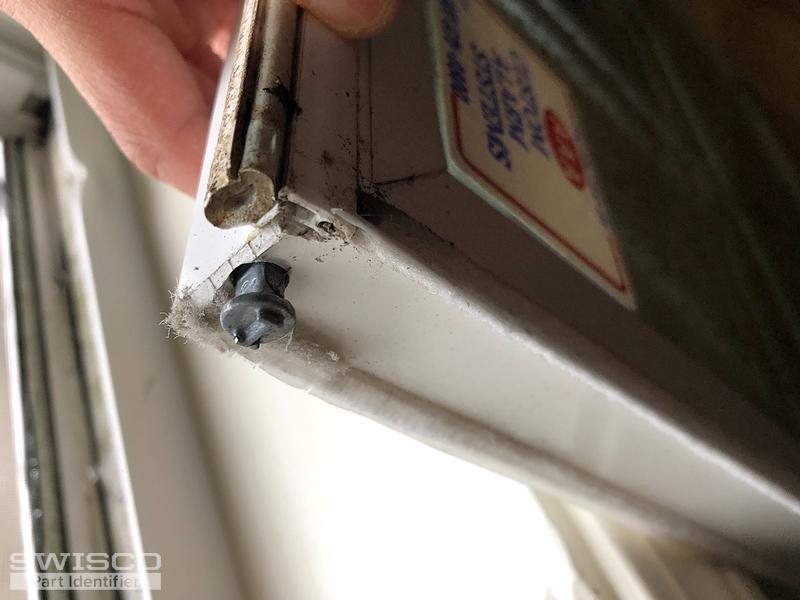

Enclosed photo taken from one of the window. I hope it helps. Thanks.
Bob from SWISCO responded:
March 21, 2019
Your pivot shoe looks like it might be our 15-177. Compare the dimensions, especially the width and thickness of your old pivot shoe, to see if they match. I'm afraid I don't see the pivot bar in your photos; there are quite a few options that might work with this shoe, so if you have an original version of your pivot bar you could show us, that would be helpful. Otherwise, you can see our selection of pivot bars here. |
Bob from SWISCO responded:
March 22, 2019
We're getting there. It would be helpful to see the pivot shoe removed from the window sash. In any event, start by comparing it to the 26-226. I cannot be certain if this is what you need, but compare the dimensions, especially the hole spacing, with your old pivot bar. If the distance between the mounting hole and the tip that interacts with the pivot shoe is the same for at least one mounting hole, then this should work for you. Otherwise, let us see your pivot bar out of the window, with the mounting hole-to-tip dimensions. Many thanks. |
Bob from SWISCO responded:
April 2, 2019

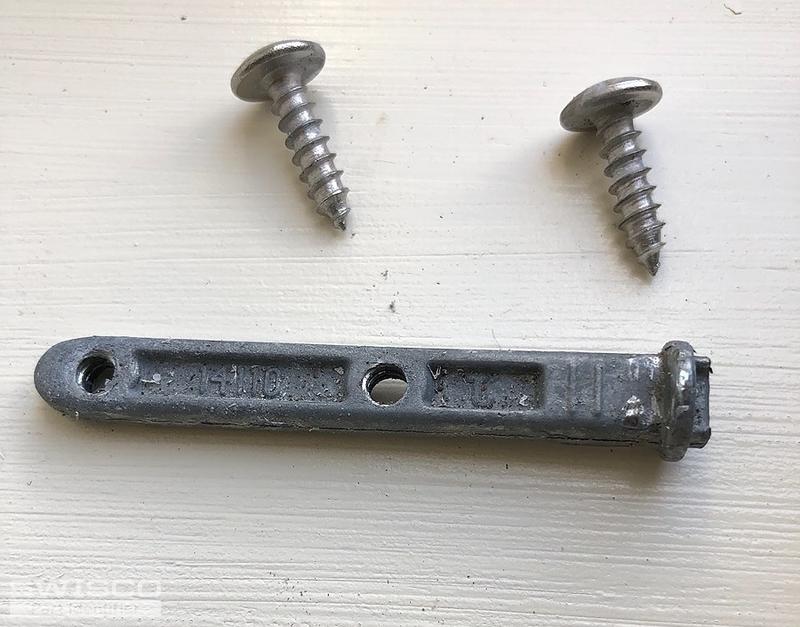

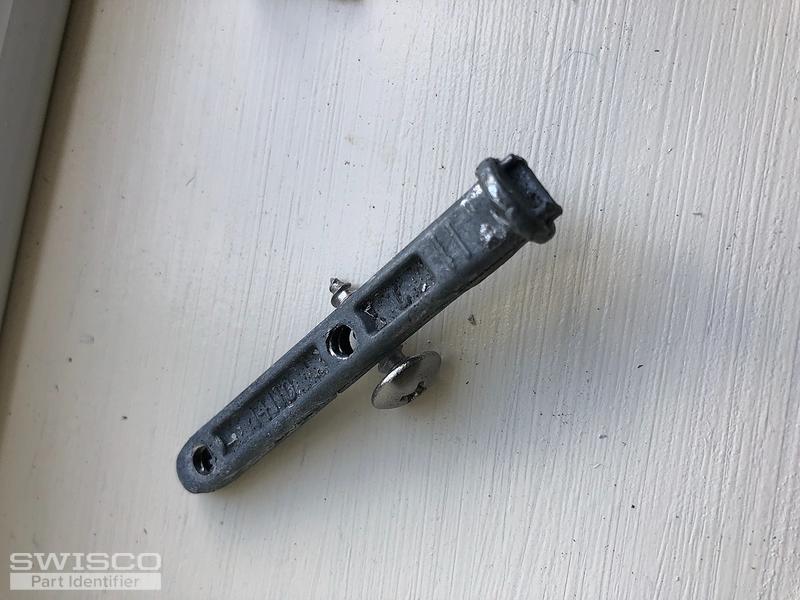

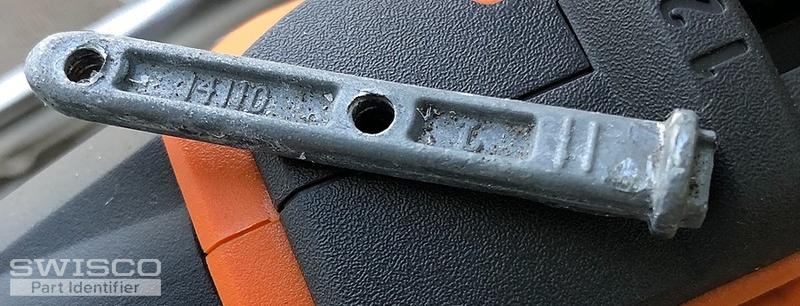

Thanks for these added photos. While I can't be entirely certain without knowing the dimensions, see our 26-398. This is a little different from your old pivot bar, but past customers have successfully used it as a replacement. Take a look and see what you think. |
