Need replacement

A quick learner from Somerset, nj says:
Spiral balance stopper
Thumbnail of the uploaded file named F51D07F9-324F-45C6-8D78-CE8F4B928818.jpeg
Thumbnail of the uploaded file named A5390233-9C93-4BCF-B891-627EE0286031.jpeg
Thumbnail of the uploaded file named F4E6ED83-9CCD-4925-A291-20248000A198.jpeg

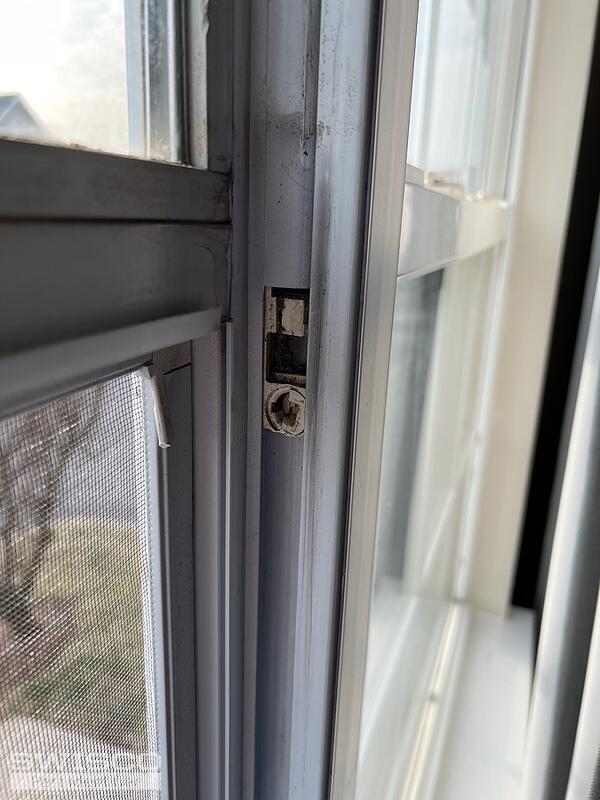

Thumbnail of the uploaded file named 0D959003-18D8-4F86-9BAB-4D44A3B0CDB3.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

We'd be happy to help but we'll need you to remove an undamaged pivot shoe from the window, including the thickness and width dimensions, to compare to our inventory.

Thank you!

A quick learner from Somerset, nj says:
Hi I was able to take additional photos. The measurements are:

2 in long
.5 in deep
1 and 3/4 wide

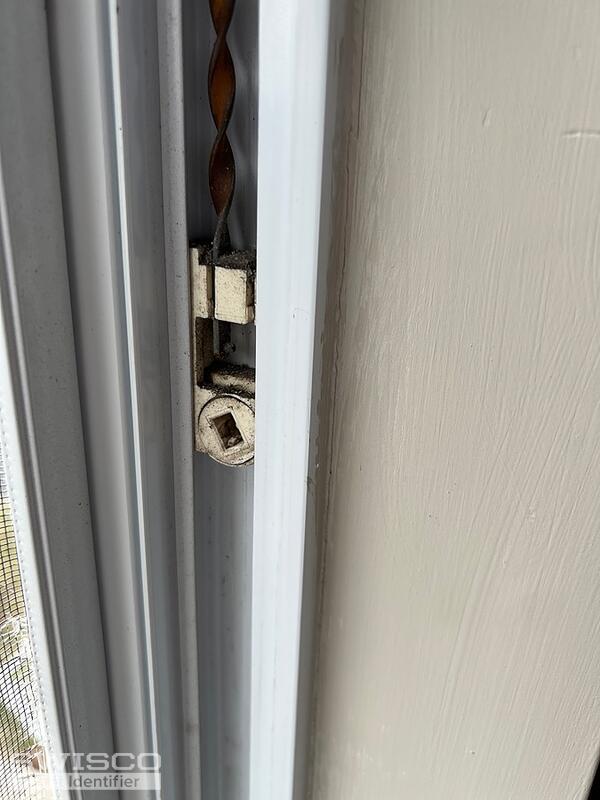

Thumbnail of the uploaded file named 8D967D31-56A9-4B32-B5A4-F6ADC2210FC3.jpeg

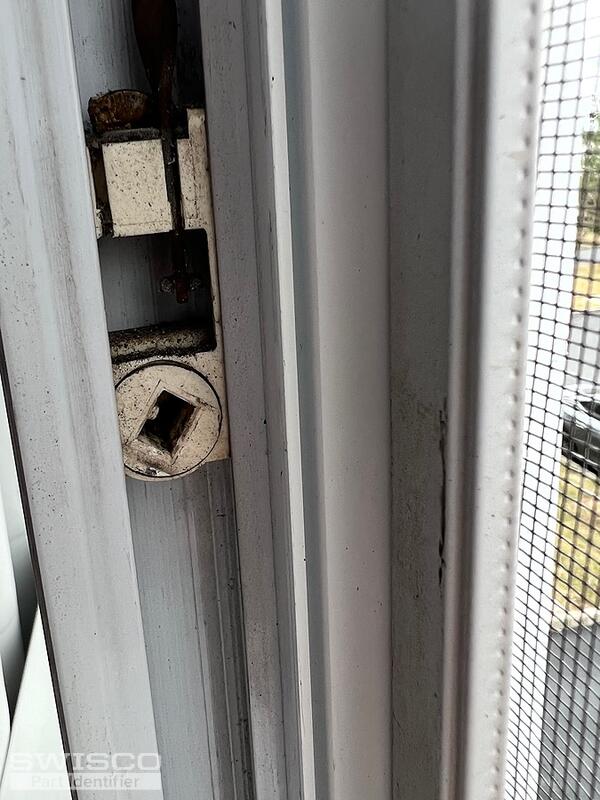

Thumbnail of the uploaded file named A0C2E252-BD99-41A2-A6CB-96F9E1AA3AC7.jpeg

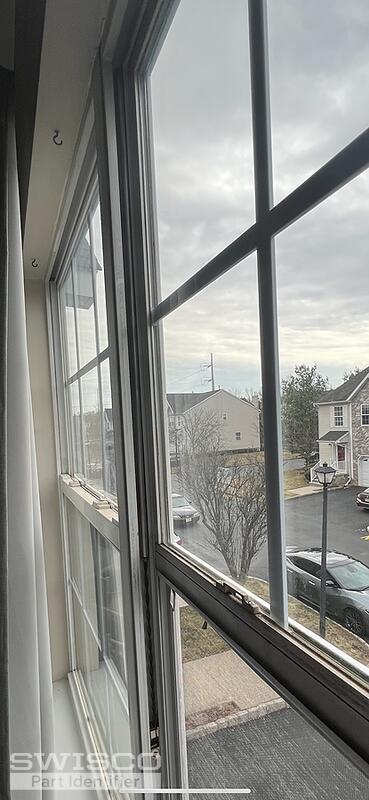

Thumbnail of the uploaded file named B369F259-63C7-4F70-B9DB-7C9B3636FCE7.png
Profile picture of Emily
Emily from SWISCO responded:

We don't have a pivot shoe with your exact specifications, I'm afraid. Our 15-046 is 1/2" thick and if the channel is 1/2" deep then you might be able to use this, but you really should remove the original to get more accurate dimensions. It's hard to measure a pivot shoe while it's still in the track just because of how much of it is obscured. As long as it's 1-1/4" wide and 1/2" thick then the 15-046 can work just fine. Height doesn't matter at all so you can ignore that. Double check your dimensions and see what you think.

A quick learner from Somerset, nj says:
Thank you! I will order the 15-046 and try it.
