Need replacement Channel Balances 2790 BG B.S.I. 30

Home Owner from Minnesota, USA

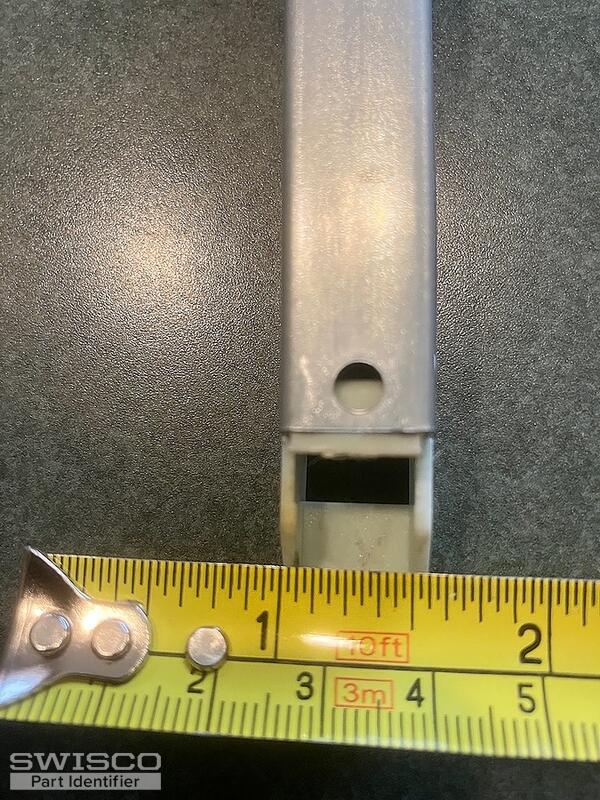

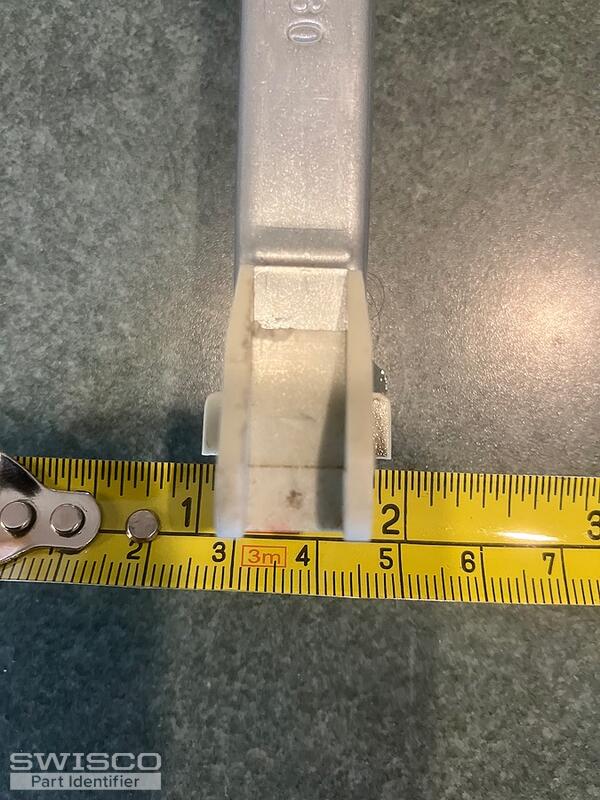

Need a pair of replacement Channel Balances. Photos of current part are attached. Notice the markings: 2790 BG B.S.I. 30 shown in one photo. The metal part is 28" long and 9/16" wide. The sash weighs 33.6 pounds.
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

With this combination of attachments, you could have either an S380-28 or S385-28 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a 2765 strength option, which will support between 33 and 36 lbs.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
