Need replacement balances for Jordan Windows

Start a new Discussion

Handy Person from Lynn Haven FL

Mar 29, 2024 8:53 am

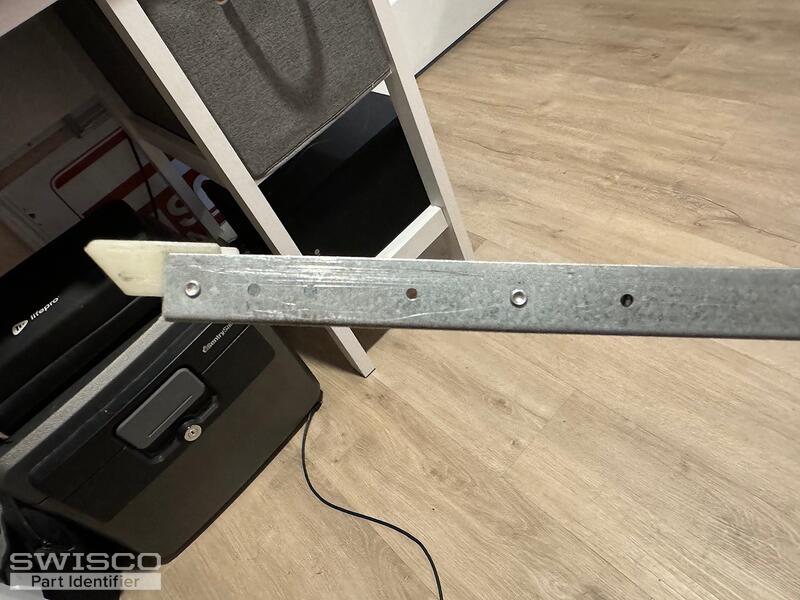

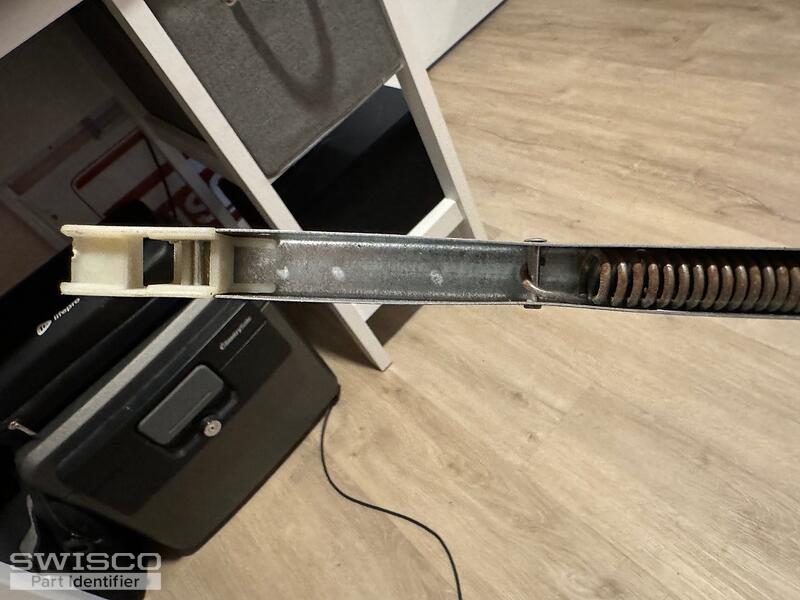

Length from metal to metal is 28 and 13/16 in

5 user uploaded images

4 Replies

Tom from SWISCO

Mar 29, 2024 4:01 pm

Thanks for your photos. Based on what I see here, you have either our S380-29 or S385-29, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S351 and S390 balance shoes.

Handy Person from Lynn Haven FL

Apr 2, 2024 11:32 am

Looks to be 1 inch, thank you

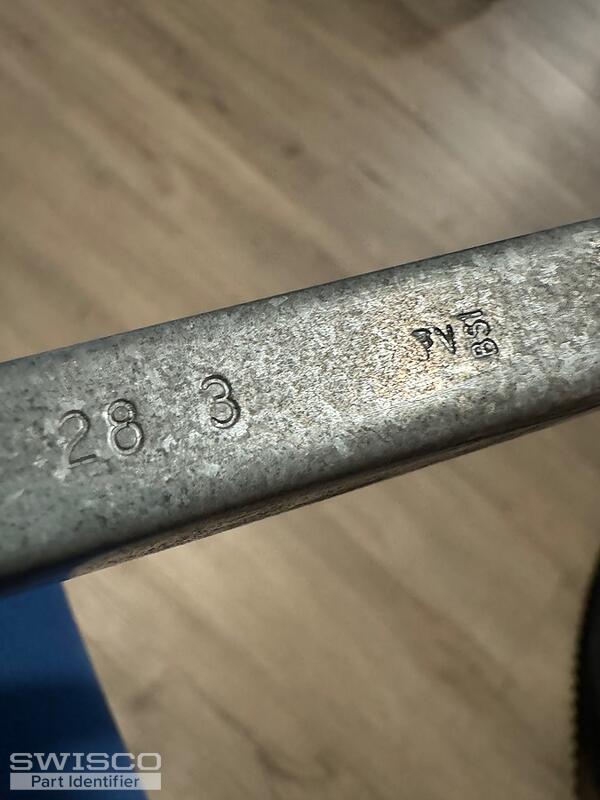

I now have a tenant in the property so I'd rather not have to weigh the sash. Since I have 28 3 stamped on the channel balance, does that mean that I should select the 2830 stamp option? Or is it worth it to go over there and weigh the sash?

Thank you

1 user uploaded image

Tom from SWISCO

Apr 3, 2024 11:51 am

Yep, a stamp of 28-3 almost always matches our 2830. I feel very confident that this option is the right pick for your assembly.
