Need replacement parts

A home owner from Fresno, TX says:
Hello, my David Weekley home was built in 2009, and the windows are tilt type. Yesterday while cleaning the windows in a tilted position, the pivot shoe cracked, and the balance came down. Can you please recommend what replacement parts I need to have this repaired?
Thank you!
Thumbnail of the uploaded file named 15881062159101502289376666125041.jpg
Thumbnail of the uploaded file named 15881062604324722245008022360128.jpg
Thumbnail of the uploaded file named 15881062805854621063768084182518.jpg

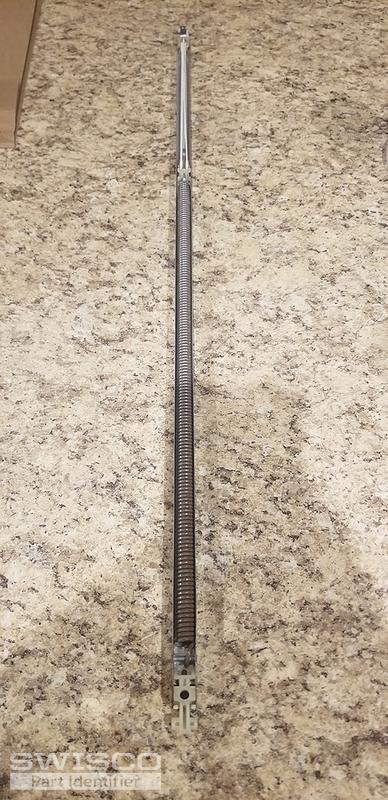

Thumbnail of the uploaded file named 15881062956095660837193177262897.jpg

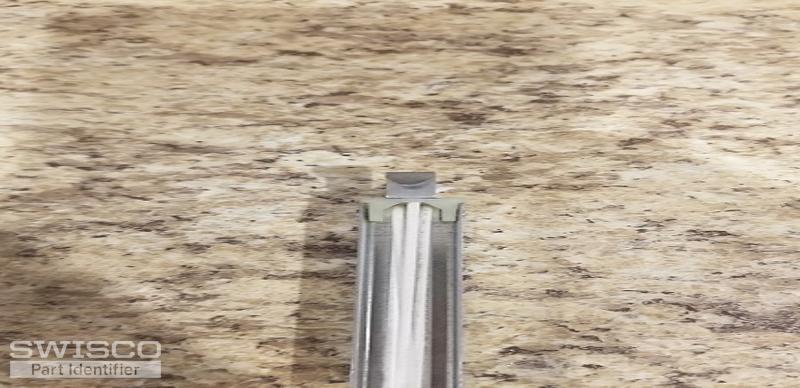

Thumbnail of the uploaded file named 15881063773362567591225394763190.jpg
Profile picture of Tom
Tom from SWISCO responded:

I don't recognize your balance off the top of my head, but I promise that we'll do our best to find a good match for it. Please give us a little more time as we research our options.

A home owner from Fresno, TX says:

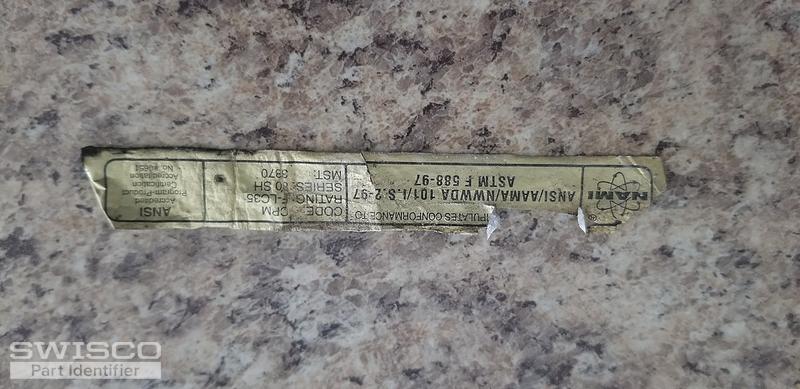

Thank you! I was able to locate the manufacturer sticker from another window.
Thumbnail of the uploaded file named 15883572329047916181448074727354.jpg
Profile picture of Paul
Paul from SWISCO responded:

I do recognize your balance. I'm afraid it's not made anymore and we don't have an exact match. We do have a possible substitute, but it will have to be a custom order.

Specifically, we'd use our S795-27, which comes with a 1-1/4" wide T-Lock shoe at the bottom and a screw tab at the top. What will make this custom is that we would replace that screw tab for our 15-198 hook, to match your original. We would also use a 27D stamp option to match your original.

Do you think you can get this configuration to work? If so, please let me know how many you need and we can email you an order link and price quote according to the specifications I outlined.
