Need replacement pivot shoe

A quick learner from Centralia Illinois says:

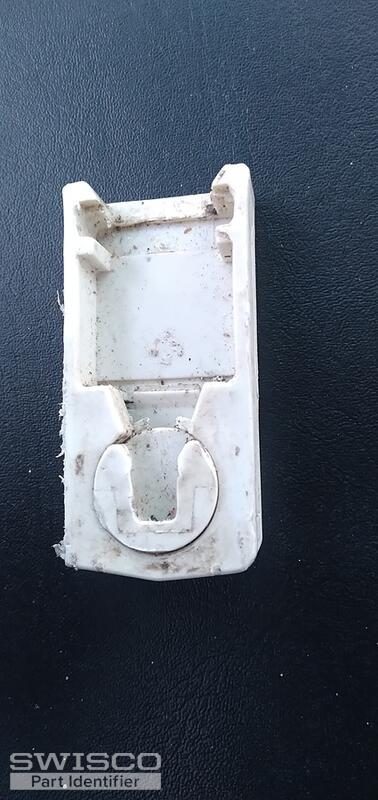

Hi, i am trying to locate a replacement pivot shoe for upper tip in window . Cant find mfg.sticker or model # on any of the windows. Part in attached photo is the broken shoe. It measures 1 inch wide, 2 inches tall, 3/8 inch
Depth (thick) ty
Thumbnail of the uploaded file named 16788859189501759006463076501907.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Unfortunately, we do not carry an exact replacement for the pivot shoe shown in your photo. If you're confident that your shoe measures exactly 3/8" thick, you may be able to adapt something like the 15-134 or 15-212 but you would also need to replace the pivot bars since the cam style is different.

See the 26-040 and 26-068 pivot bars that are commonly used with the 15-212, as well as the 26-297 used with the 15-134. Review the installation hole placement of these pivot bars to see if at least one installation hole would match the ones in your window sash. Thanks for posting!
