Need replacement plastic cover

Quick Learner from East Lansing, MI

May 25, 2024 6:37 pm

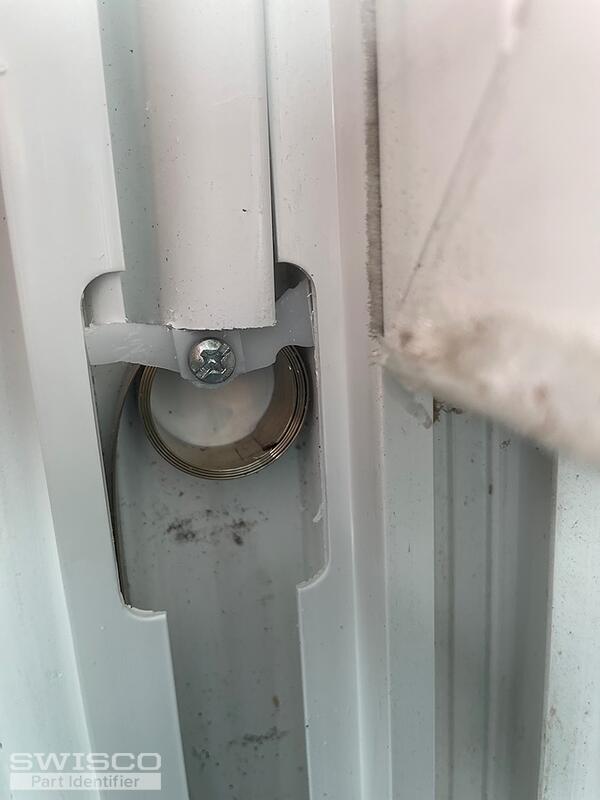

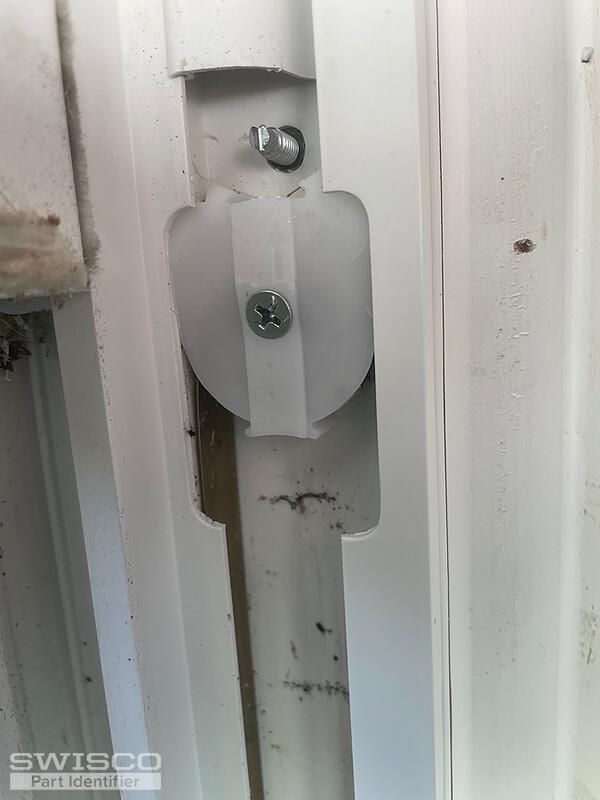

I couldn't find any names, numbers or other window ID. Double hung window. The plastic cover for the coil is broken and is preventing full bottom half of window opening. I need a new plastic part

2 user uploaded images

6 Replies

Emily from SWISCO

May 30, 2024 9:53 am

Hello there! Thanks for reaching out to us. We don't sell this exact coil cover but we may still be able to help. Can you show us a photo of the pivot shoe, preferably removed from the window? If we can ID the pivot shoe, we can determine the compatible springs.

Quick Learner from East Lansing, MI

May 31, 2024 8:41 am

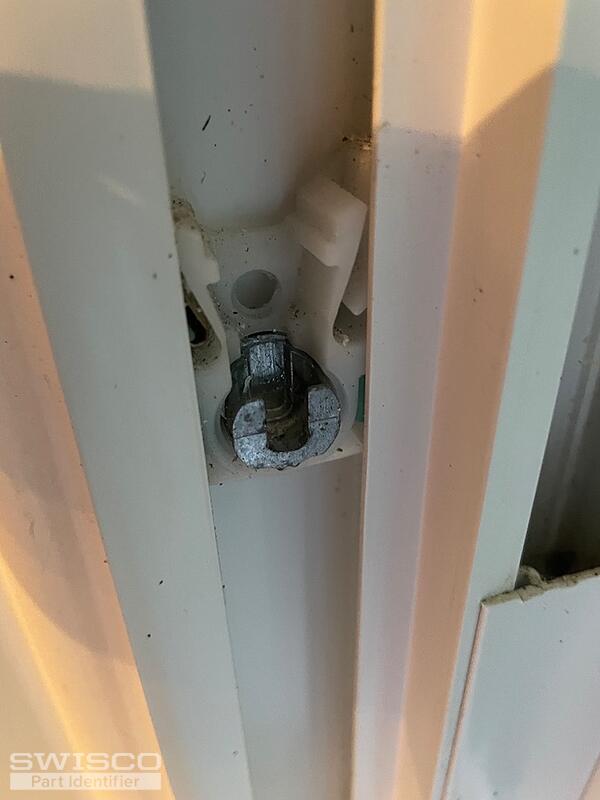

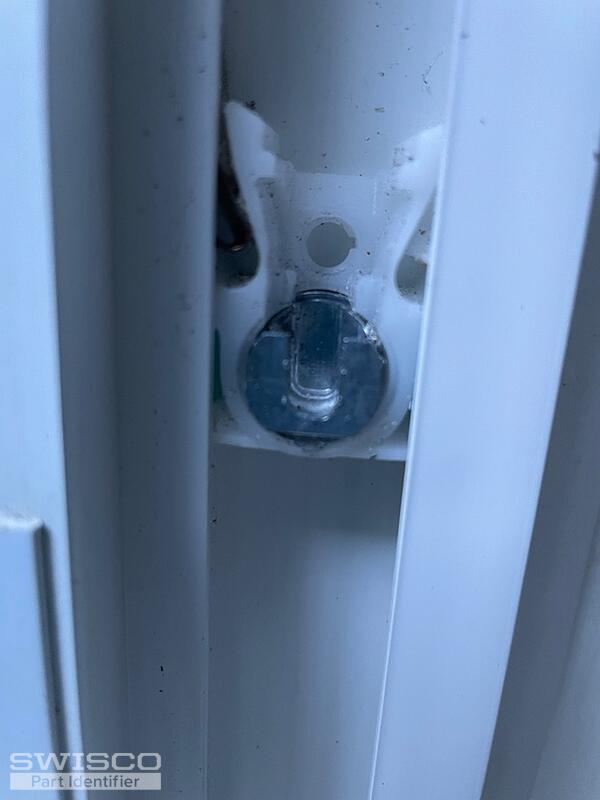

I couldn't remove the pivot shoe. Here is a picture of it.

2 user uploaded images

Emily from SWISCO

May 31, 2024 8:57 am

This will do! This pivot shoe isn't something we sell but the 15-177 is very similar. The Series 152 are the compatible springs. If your old spring band is 1/2" wide, you may be able to use the 15-143 bushing, 15-144 cap, and 15-145 barrel which "sandwich" around the spring.

Quick Learner from East Lansing, MI

May 31, 2024 10:35 am

Thanks so much for your quick reply. I've ordered the parts and I'll give it a shot.

Emily from SWISCO

May 31, 2024 12:55 pm

I'm happy to help. Thank you for your order! I'll be here if you need anything else.
