Need replacement rollers

Home Owner from Stover, MO 65078
We have an "ANSI AAMA 101-85 SGD-R20, Series M-800/M825/M850 door". We are needing replacement rollers for the glass sliding door, bottom.
6 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Unfortunately, that code doesn't tell me what you have. There is no code, sticker, stamp, or marking that will tell you what your rollers are. The only way you can learn that is to remove the originals and show us photos of them to ID.

When you take your photos, make sure we can see the rollers from the side, top, and rear. We will also need detailed dimensions.

Home Owner from Stover,MO 65078

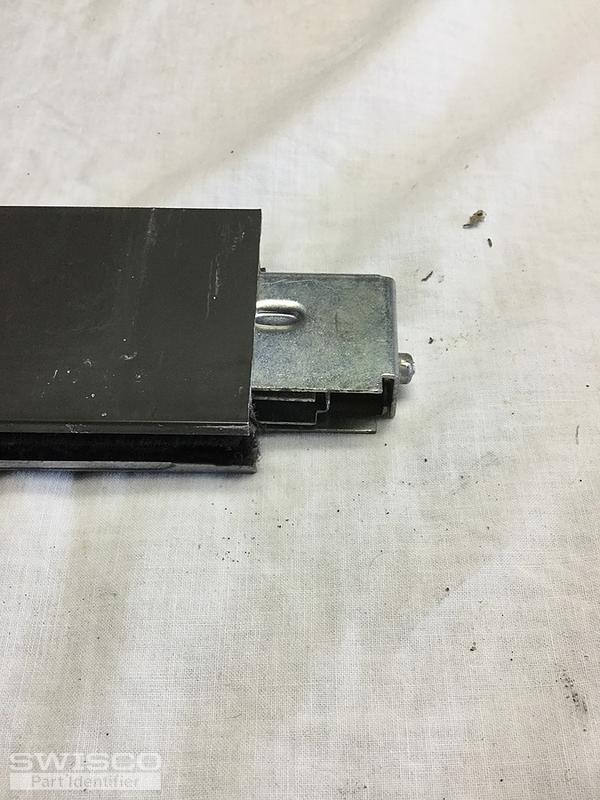

Attached are photos for replacement rollers. Do they come in pairs or can you buy one to replace the broken one ?
What is the total price & do they come by USPS ?

Thank You
5 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thank you. This roller looks like a match for one of four styles: either the 81-023, 81-278, 81-279, or 81-282. You need to carefully review the dimensions we show on each products' store page to confirm the best match. You can also find a detailed price breakdown on these store pages.

These rollers are sold individually, not in pairs. Delivery cost is calculated for you automatically during checkout depending on what shipping option you choose.

Handy Person from Sun City West AZ
We have exact same patio door as homeowner from Stover MO.. we're having trouble removing the "slider" part of the door. Can't get it to "lift" up enough for removal...so, any suggestions. Been working on this project all morning.. husband is retired farmer so you know he can fix anything..but this project is frustrating him. Thanks for your advise.
Paul
Paul from SWISCO
SWISCO
Expert

Hello,

The doors aren't meant to be removed to the outside. You can't lift sliding door up and swing it in because of the track inside lip. To remove the sliding door, you first need to remove the screen door and stationary door, then you can lift and swing out the sliding door. To remove the rollers, carefully lay the door down on a flat surface, unscrew the two bottom frame screws and with a wood block and hammer knock off the bottom door rail. Now you can remove the rollers to compare to confirm a good fit.

If the roller looks different than the styles related on the page, please provide pictures to move forward.

Let us know if you have any additional questions.
