Need replacement window balance

Question

Hello,

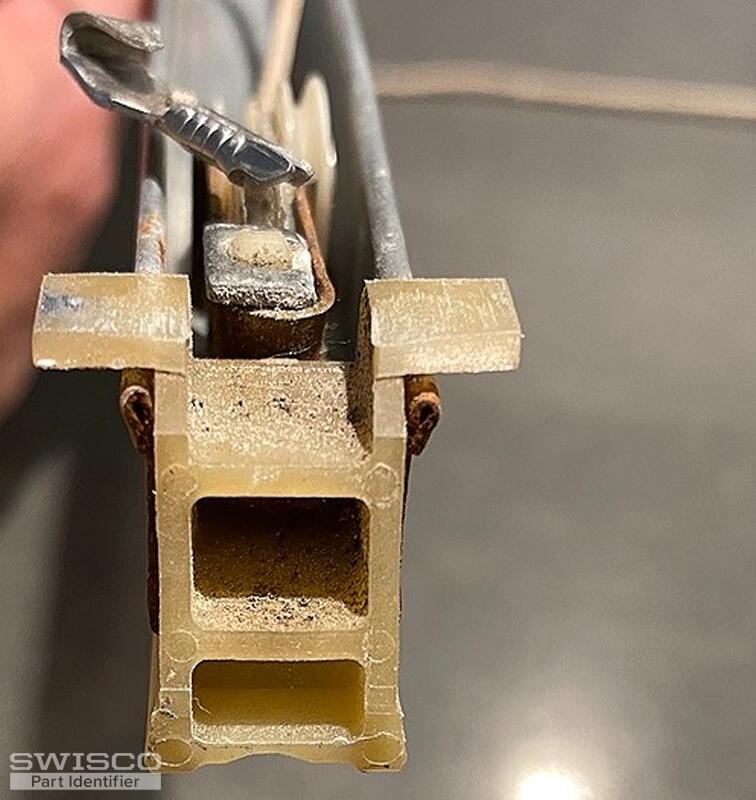

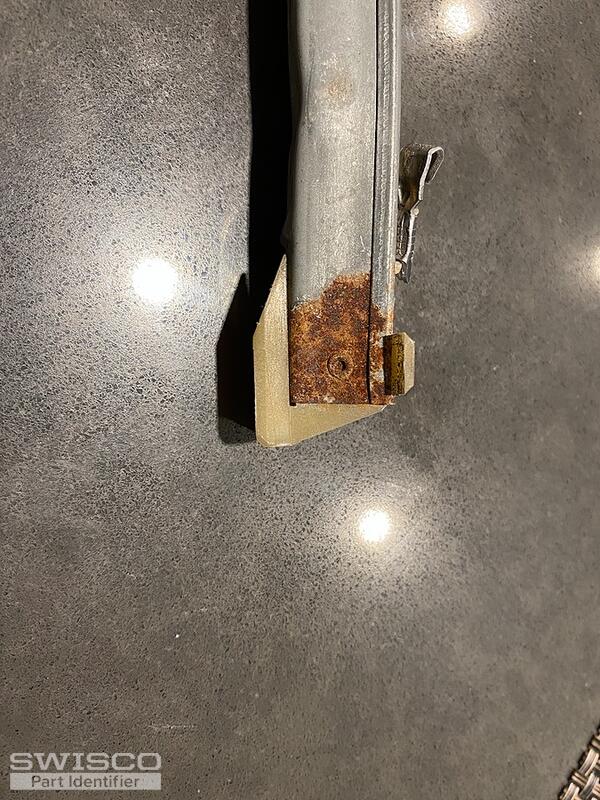

I have attached the photos of the old balance. Can you please tell me which replacement I need to buy? Please include the correct top and bottom guides. Thank you.

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2830 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
