Need replacement window balances
Home Owner from junction City OR
Sep 15, 2025 1:24 pm

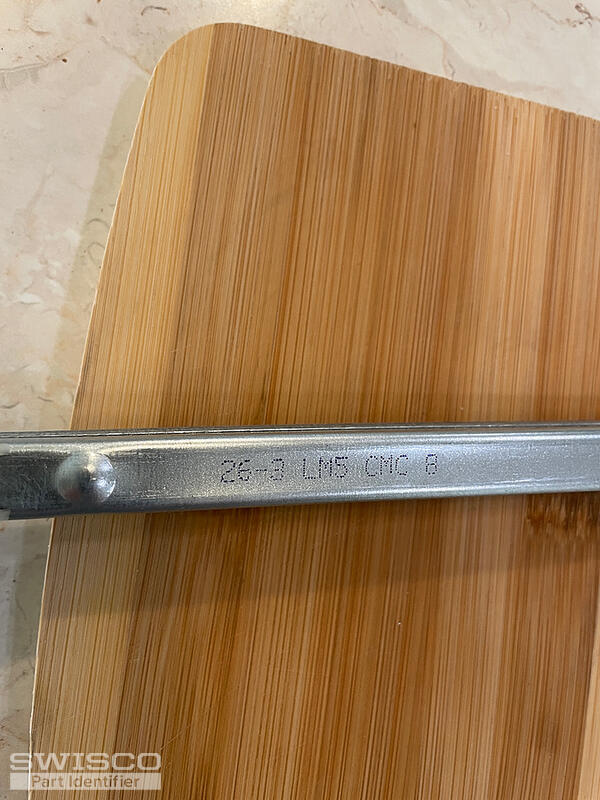

Manufactored house, I need two sets of window balances. The metal channels are 26 7/8" long and marked with 26-3 LM5 CMC 8. Both sets of the window balances have broken strings. I will also need two takeout clips, the broken clips are 1/4" wide.
5 user uploaded images
4 Replies
Jasmine from SWISCO
Sep 19, 2025 12:25 pm
Hello,

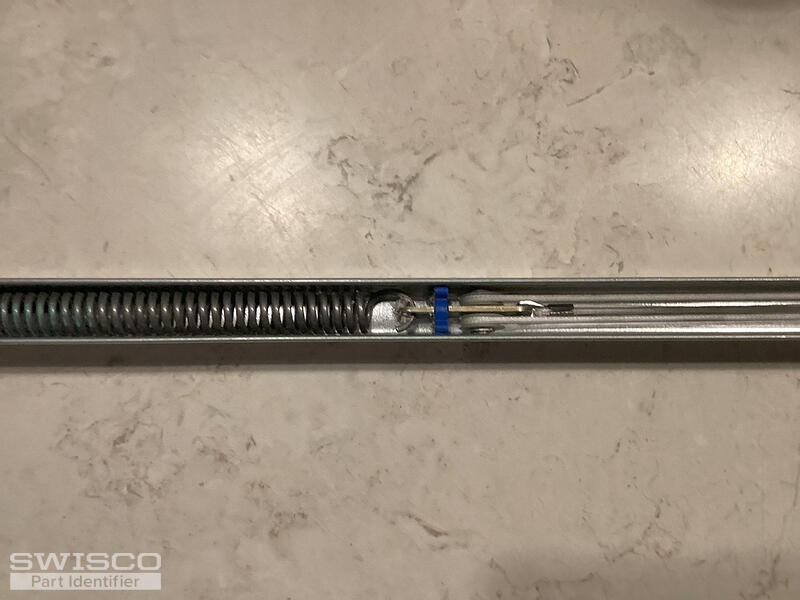

I'm confident we can provide the replacement balances needed to repair your windows. Although, I'll need to see a photo of the bracket connecting the spring and cord (string) in the middle of the balances to narrow down the correct match.
The clip can likely be replaced with the 16-002 Take Out Clip. Be sure to compare the dimensions to confirm that this is what you have.
Alternate image for 16-002
Home Owner from Junction City OR
Sep 21, 2025 11:46 am

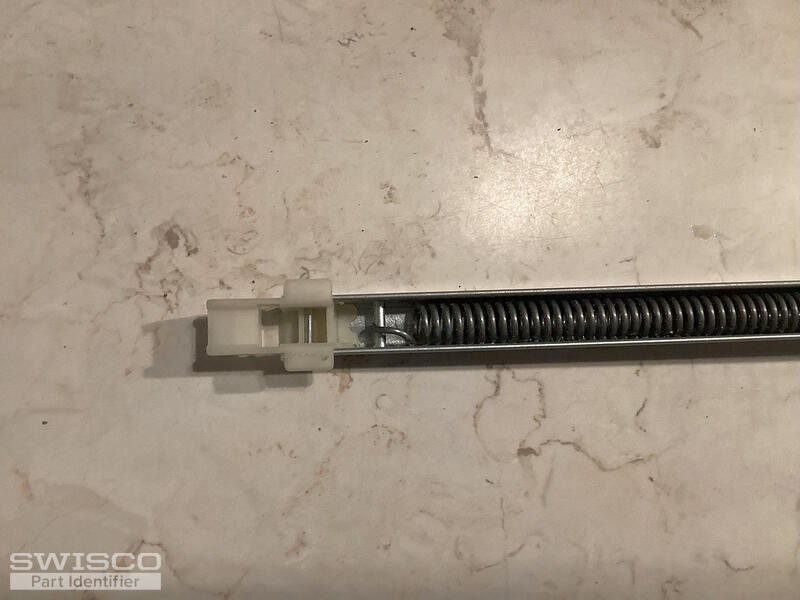

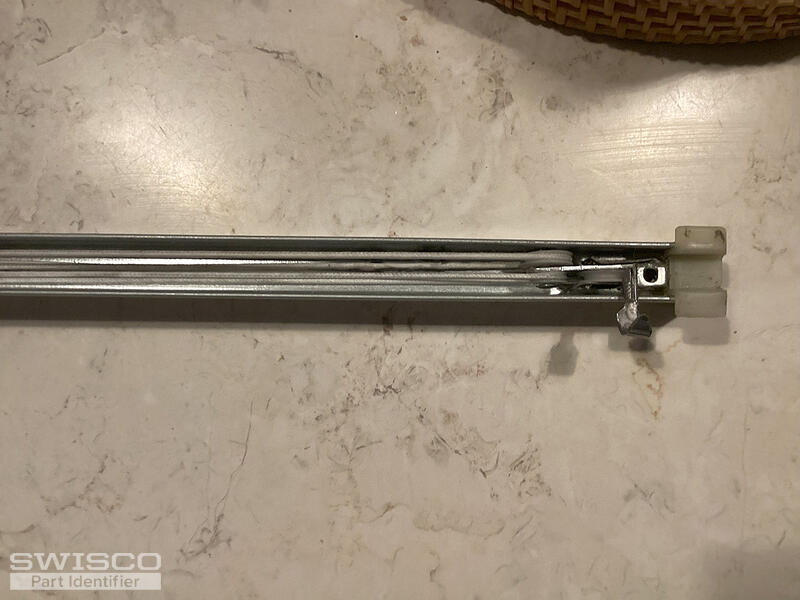

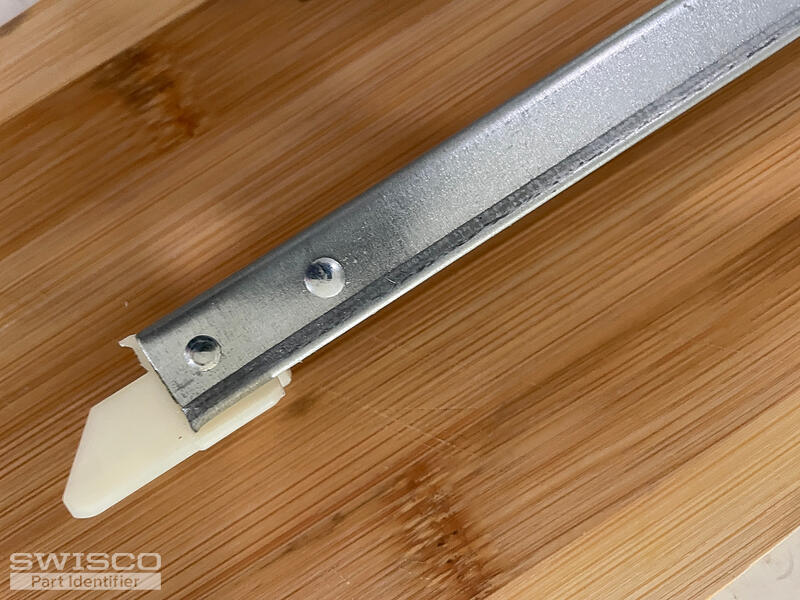

Additional pictures as requested. Hope I got it right. The take out clip looks like the originals.
3 user uploaded images
Jasmine from SWISCO
Sep 22, 2025 10:40 am
The balance you have here is an 86 style Caldwell balance. I've forwarded a quote for (4) of these balances as requested. You'll need to use the quote to place the order from your online cart.
Please let me know if you have any other questions!
