Need replacement window tilt sash channel balances 25 3 GX CMC 4 H

Handy Person from Clarksville TN

Jun 7, 2021 11:57 am

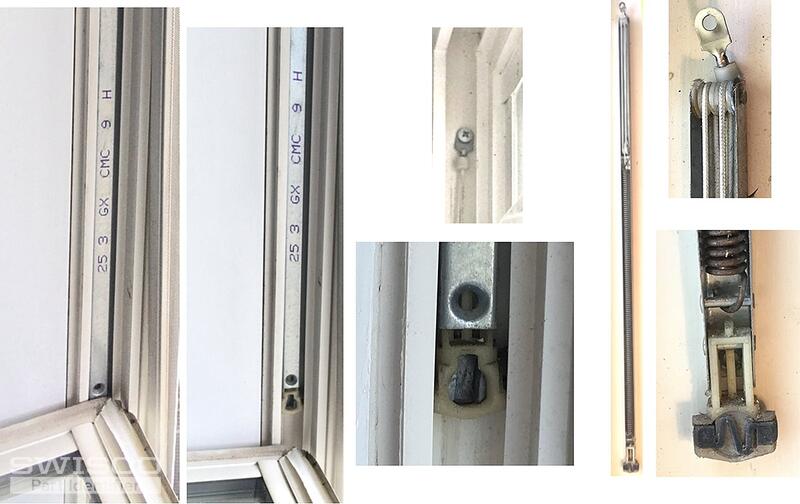

Hello...I need replacement window tilt sash channel balances 25 3 GX CMC 4 H.
Thank you for help to find proper replacements for the original balances.

1 user uploaded image

6 Replies

Bob from SWISCO

Jun 10, 2021 2:43 pm

This might be our Series 795 Channel Balance, but I'd like to be sure. Can you remove the balance and measure the metal channel length? Can you also confirm how wide it is? Is it 1/2", or a different width? Can you also show a clearer picture of the bottom T-Lock Shoe? From there we'll do our best to narrow this down quickly for you.

Handy Person from Clarksville TN

Jun 10, 2021 4:54 pm

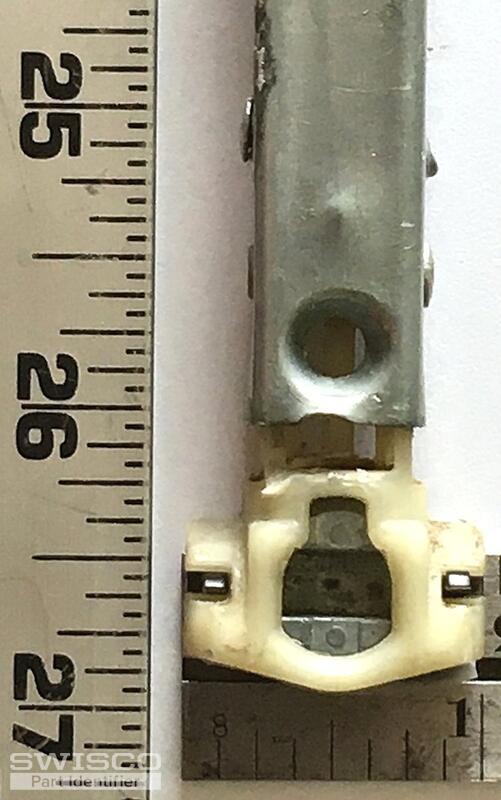

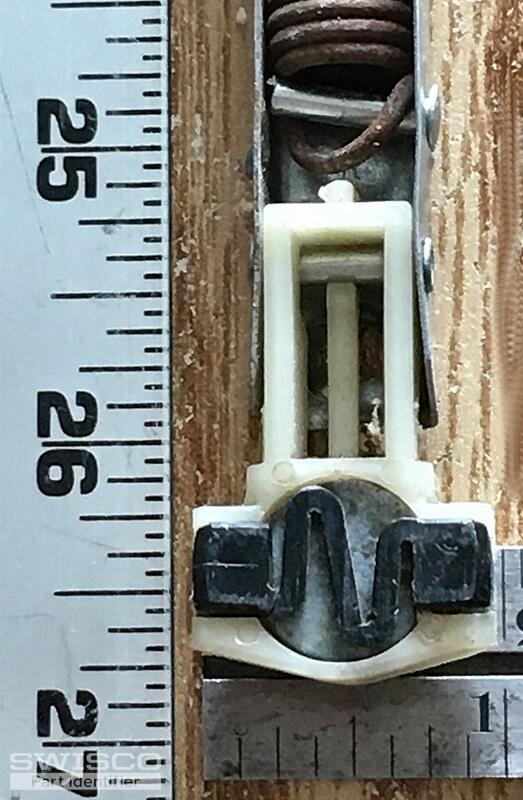

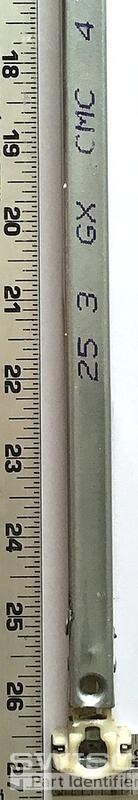

Thank you for your reply and assistance. Measuring from end to end, the metal channel length is 26 inches and the width is 1/2 inch. Here are detailed photos of the T-Lock Shoe and the model number printed on the metal channel.

3 user uploaded images

Tom from SWISCO

Jun 11, 2021 11:00 am

Thanks for getting back to us! I agree with Bob, I think your balance is just an older version of our Series 795. I feel fairly confident that ours will work perfectly well for you as a replacement. The only thing you have to do is weigh your sash on a scale to confirm which S795-26 stamp option to go with, since our rating system is different compared to yours. We have a chart on the S795-26 store page that shows you how much weight each one can support.

Handy Person from Clarksville TN

Jun 11, 2021 1:10 pm

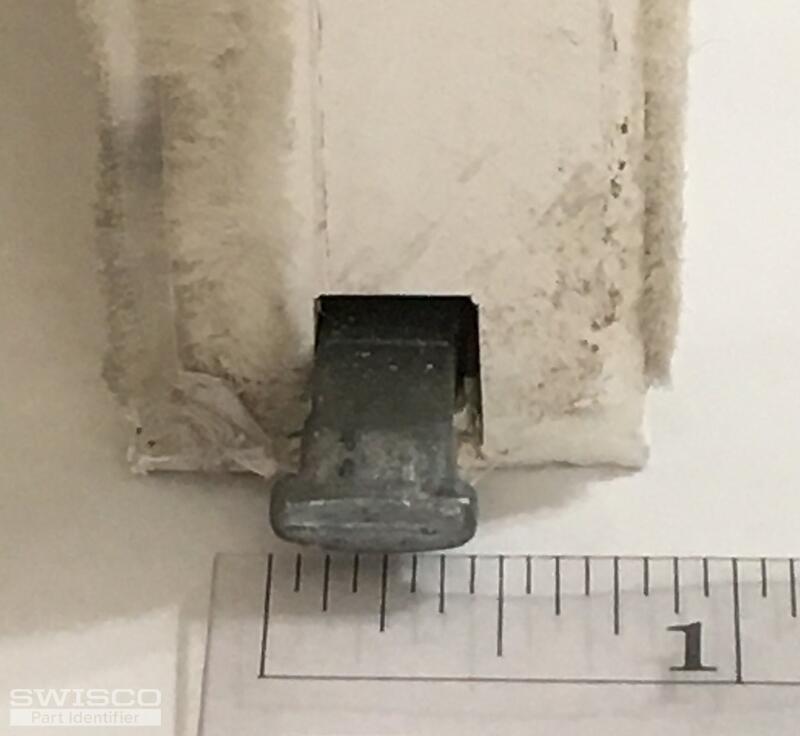

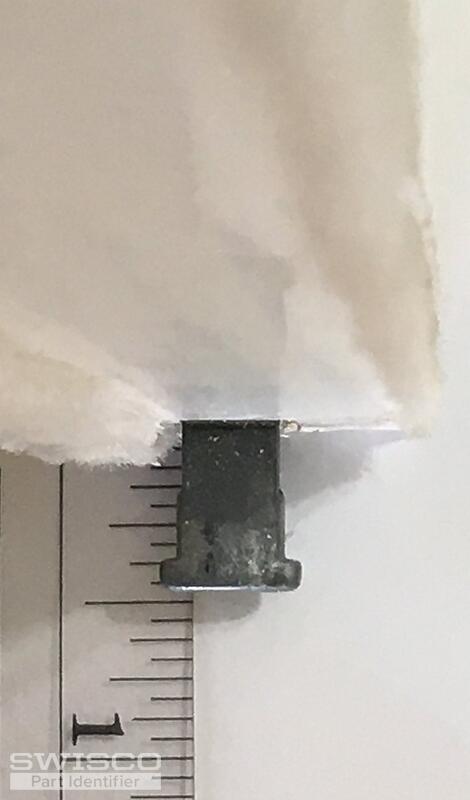

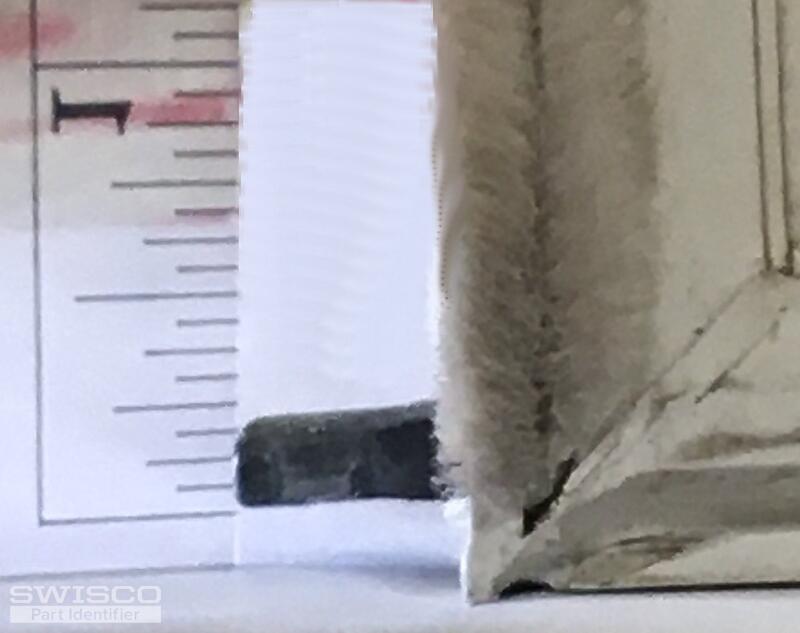

Thank you for the great information. The window sash weight is 17.6 lbs. Please advise the model number that should be ordered. I want to confirm I am correctly determining it. The S795-26C model comes with a 1.50 inch wide 15-195 T-Lock Balance Shoe with a Closed Cam. My window channel pocket is 1.00 inch wide. Do I purchase the S795-26C and purchase the 1.00 inch wide 15-194 T-Lock Balance Shoe with a Closed Cam separately? Do I change the shoes in the channel myself? Is it an easy installation? Here are photos of my window sash pivot bar. Will my pivot bar fit in the 15-194 T-Lock Balance Shoe? Thank you.

3 user uploaded images

Tom from SWISCO

Jun 11, 2021 1:24 pm

If your sash weight is 17.6 pounds then the 26C option should be fine. As for the shoe, it does look like your original shoe is only 1" wide. I'm sorry for overlooking that detail before. In that case yes, you want to purchase the 15-194 separately. These just pop on and off, it's real easy. We even have a video on how to do it which I'll share at the end of this post.

Concerning the pivot bar, I do believe your original will be compatible with the new shoe.
