Need replacements for pivot lock shoes and sash pivot bars

Question

Hello, I need help finding the right kind of hardware parts for my tilt windows. The hardware in right now is broken on all my windows.

I need pivot lock shoes and sash pivot bars.

Measurement of pivot lock shoes:
Depth is 17/32" (although is MIGHT be 1/2")
Width is 1 1/4"
Height of plastic piece was 1 1/2", but the metal retractable pieces made it taller.

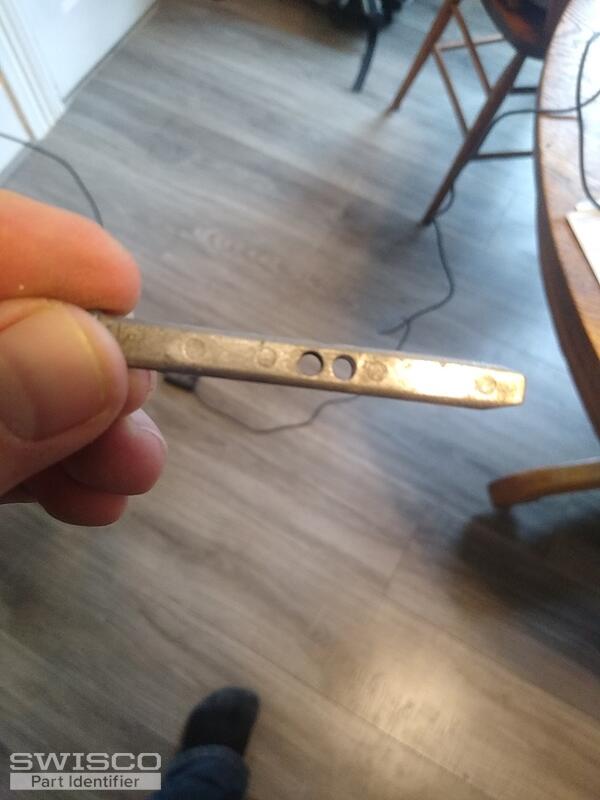

Measurement of sash pivot bars:
Length: 2 11/16"
The holes to tighten it to the inside of the window were at app. 1 3/8" & 1 5/8" from the outside.

Thanks for any help!

Emily · Accepted Answer

Hi there!

Thank you for reaching out to us. The pivot shoe shown in your photos is no longer available but the 15-177 can work in its place. You can reuse your old springs if they're in good shape.

As for the pivot bar, have a look at the 26-030 and 26-226. Review the specifications and see if one of them matches what you need.

Alternate view of 26-030

Detail of 26-030

End view of the 26-226 pivot bar
