Need replacements for windows

Start a new Discussion

Home Owner from 02852

Jun 15, 2023 2:49 pm

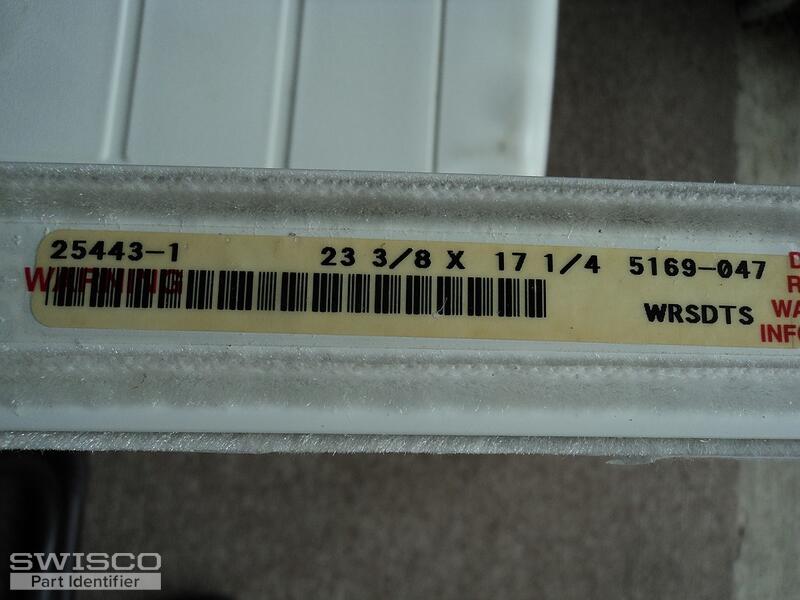

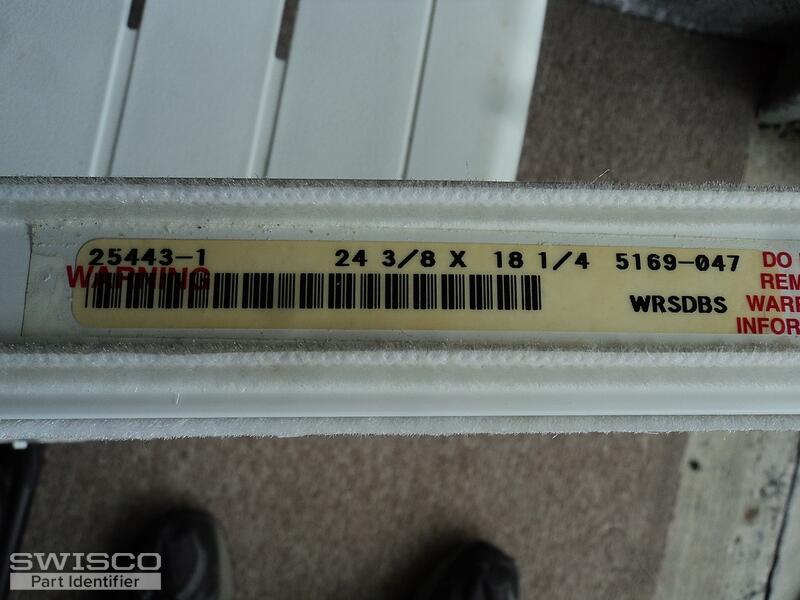

Photos show identification info on uppper & lower window frames

4 user uploaded images

4 Replies

Casey from SWISCO

Jun 16, 2023 11:30 am

Hello,

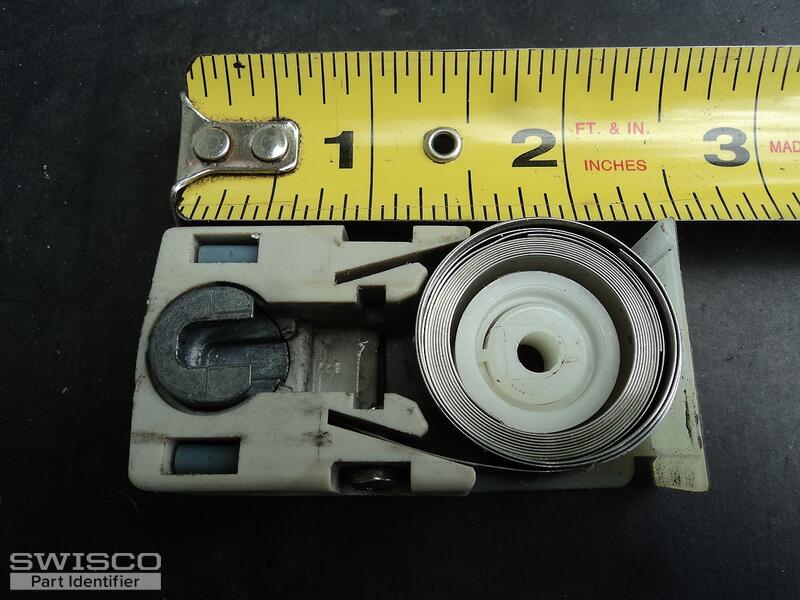

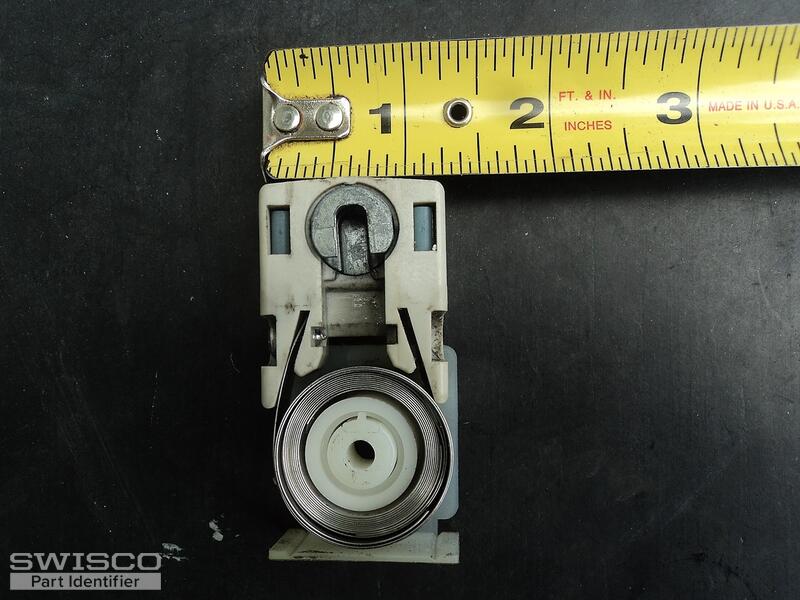

The pivot shoe shown in your photos looks like a match to the 15-177 shown below. This shoe is used with the Series 152 coil springs and related items listed on our product pages. Take a look at these parts, as well as the videos related on this page, to help you through the repair process. Thank you!

Alternate image for 15-177

Home Owner from 02852

Jun 18, 2023 6:37 pm

My window weighs in at 8 pounds do i use 2 4 lbs or 2 8 lbs springs left & right

Casey from SWISCO

Jun 20, 2023 8:40 am

You would need one S152-4 coil spring on each side to support an 8-pound sash. Just let us know if you have any other questions.
