Need some cranks 60-c-7041-62. Small 6.

Hello,

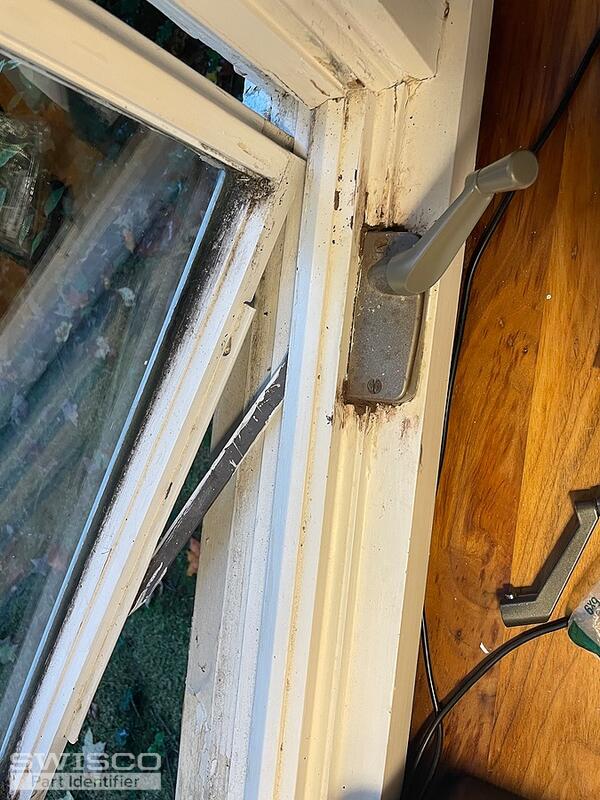

It looks like you may have a handle from an Andersen operator. If so, see the 39-286, which attaches to a 3/8" gear bore. You would place the handle over the operator spline and then tighten it with a set screw. However, a set screw can only do so much to secure the handle if the operator's spline is worn down. If that is the case, we would need to see your entire operator, including the arms that move the sash, to compare to our inventory.  Thank you.

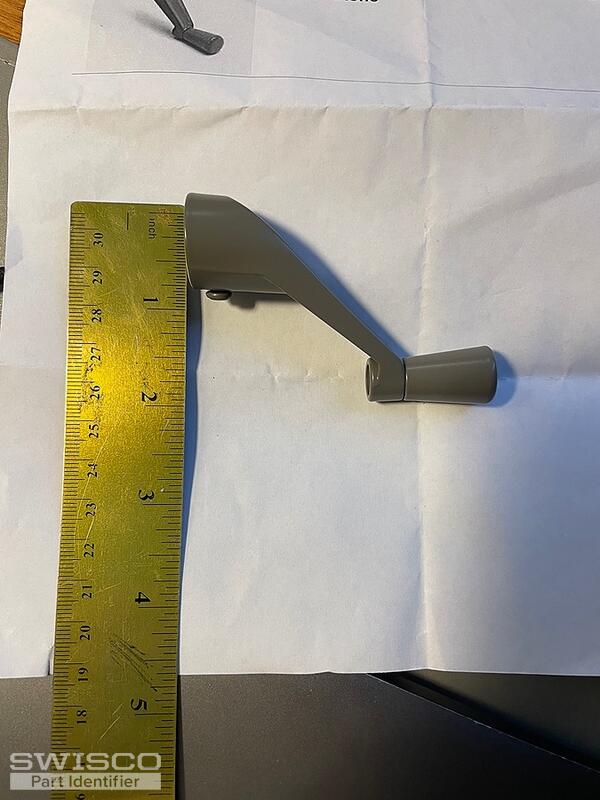

Side profile view with measurements

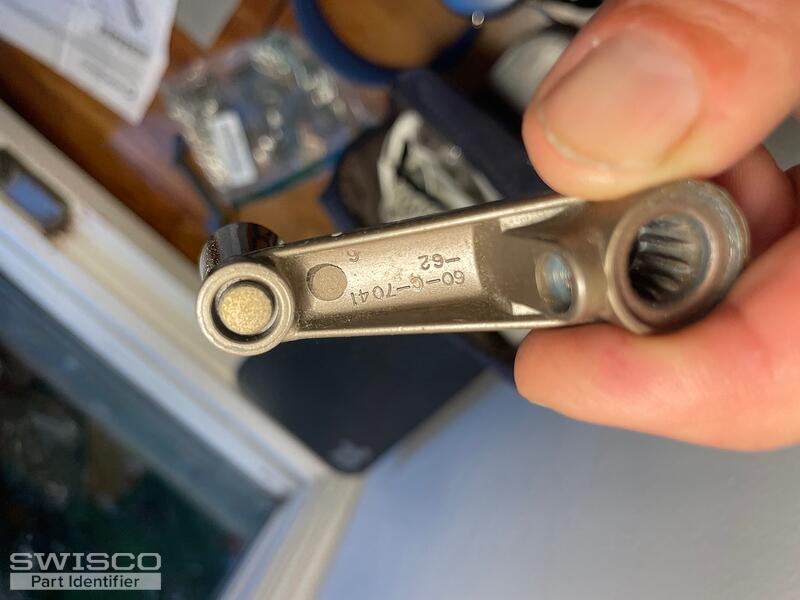

View of the gear hole with measurements

Were you able to loosen the set screw before attaching the handle? If the set screw is tight, that would make it difficult to attach the handle. Give it a try and if you're still having trouble, please get back to us with photos of the operator the handle attaches to with the window open so the arms that move the sash are fully visible. If we can identify your operator, we'll be able to confirm which handles would be compatible.

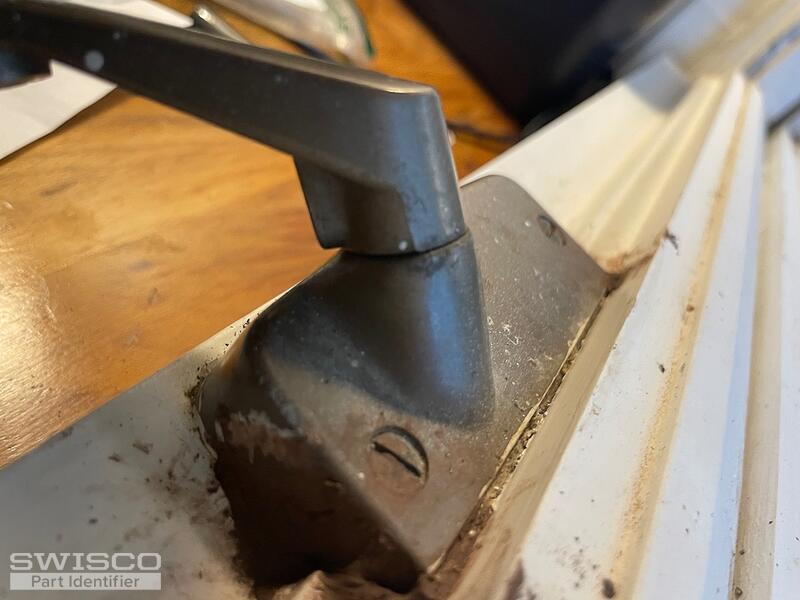

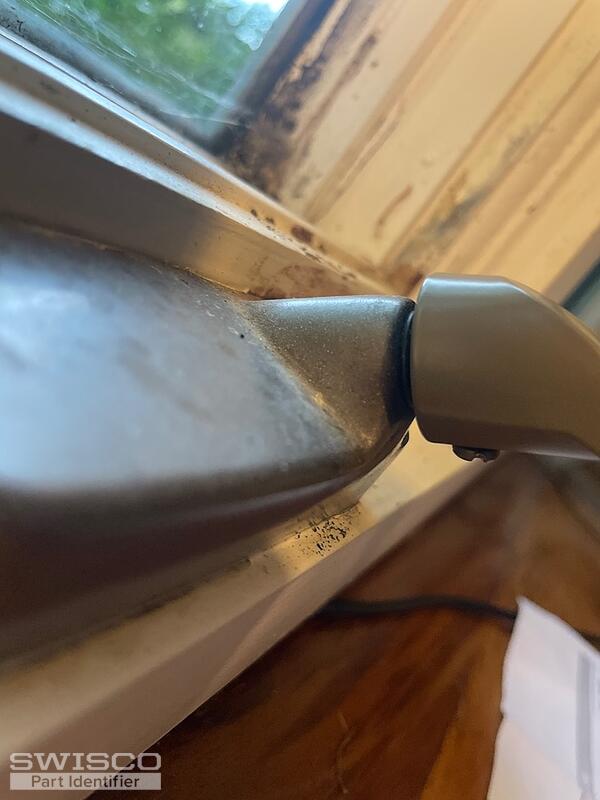

Thanks for getting back to us. We did carry your old-style Andersen operator handle at one time but it is no longer available. I can see that the handle is not set all the way down on the operator base in your photos.

We do offer the 39-104 handle that has the 3/8" bore. This handle might be set down further on the operator's body. However, we do not have your operator to try it out and note that this handle only comes in white or aluminum color options. Look it over and see what you think.

Sure, the 39-104 can be purchased directly on our website by clicking on the highlighted product code or by giving our customer service team a call at (888) 991-1929.

Unfortunately, we do not have a closer match for your original handle that will attach to your operator. Your best option at this point would be to see if you could adapt something like our 39-365 and 39-366 operators, as well as the 39-504 track, to replace your original hardware. Note that these operators use the 39-114L handles.

Alternate image for 39-365

Alternate image for 39-504

Keep in mind that there are still no guarantees and converting your window to use this hardware would require adaptations such as making new screw holes and modifying the sill trim to accept the operator base. Take a look and see what you think.
