Need spring type balances for 1 single hung tilt sash

Handy Person from 33884

Feb 2, 2023 12:35 pm

No identifying marks or manufacturer marks on the window. I do have a picture of an order number, but I don't think that will get us any info. Balances on both sides are busted. triple spring, not seeing the plastic parts on your website. I did pull out the springs where they attach to the sash pivot. no markings. I think the only way we get this is with pictures. Can you help?

Thanks,

Sam

6 Replies

Jasmine from SWISCO

Feb 3, 2023 2:14 pm

Thanks for posting. We should certainly be able to help you. Although, to ensure that we can, the best way for us to assist with recommending a replacement would be to see photos of your balances.

You can upload them to this thread and we'd be happy to review them for you.

Handy Person from 33884

Feb 3, 2023 2:32 pm

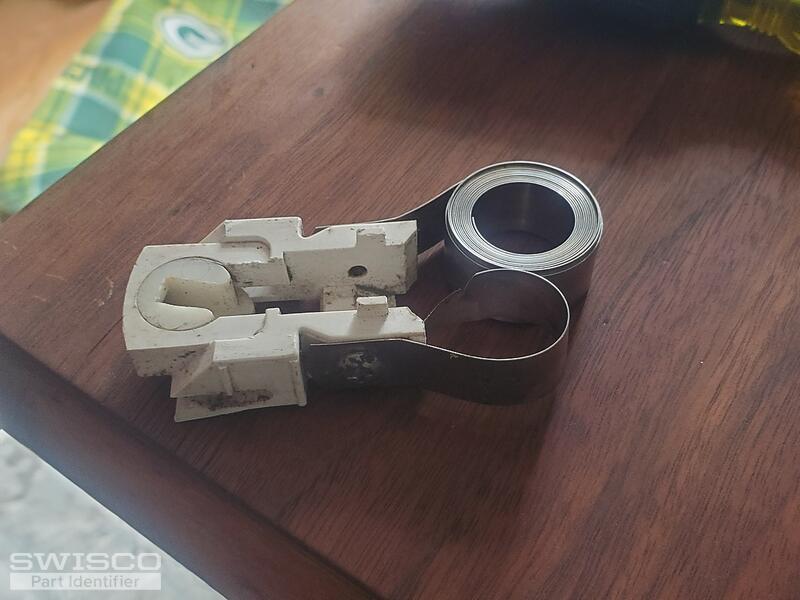

Hi Jasmine, Both balances are broken. I removed the left side balance, took pictures and took a picture of the right side balance while still in the window frame. Also a picture of the only identifying mark I could find.

Thanks for your help,

Sam

4 user uploaded images

Jasmine from SWISCO

Feb 6, 2023 12:31 pm

I am confident our 15-180 pivot shoe is the correct replacement. These are compatible with the Series 190 coil balance springs.

To confirm which spring strength is needed, you'll need to confirm if there are any stamps on the metal coil.

Handy Person from 33884

Feb 6, 2023 3:15 pm

I took another look at the springs and there is indeed very lightly stamped numbers. The end the "single coil" has a 6 stamped in it, and the end that broke off the "double coil" has a 5 stamped on it.

Also do you sell tilt latches as well. One of them is broke on the window and needs to be replaced. I can get the dimensions and a picture, just did not know if you sold them.

Thanks for your help!!

Sam

Jasmine from SWISCO

Feb 7, 2023 10:57 am

Okay, great! So then you'll need the S190-540 and S190-640 coil balances.

To identify the tilt latches, I'll need to see a photo of them to make the best replacement recommendation.
