Need this whole rod replaced

Quick Learner from california
Jun 30, 2024 4:10 pm

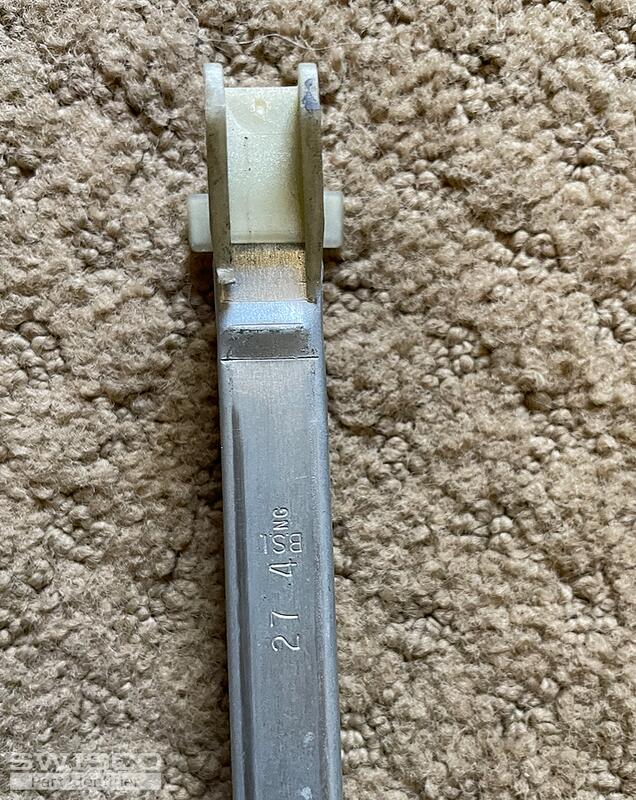

The numbers on here are 274 BSI NG

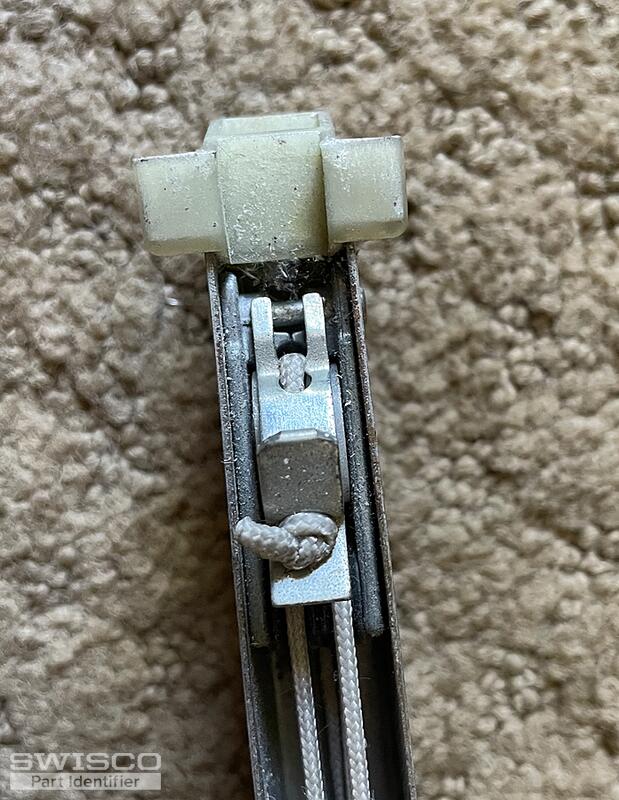

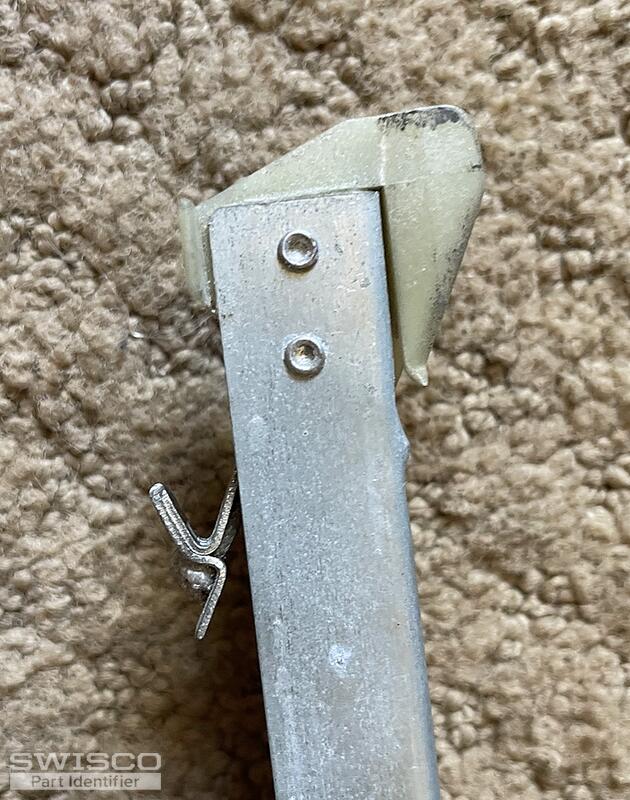

Screenshot 2024-06-30 at 1.08.59?PM Screenshot 2024-06-30 at 1.09.05?PM Screenshot 2024-06-30 at 1.09.15?PM
3 user uploaded images
5 Replies
Bob
Bob from SWISCO
Jun 30, 2024 4:45 pm
SWISCO
EXPERT

Hello there. I'm confident we can replace this channel balance, but we need to see the nylon attachment on the other end of the metal channel as well. The combination of attachments determines the right replacement. Many thanks.

Quick Learner from california
Jun 30, 2024 7:49 pm
Thanks for such a quick reply!

I added some photos of the other side and then also the other end. Let me know if you need anything else.

Thanks!

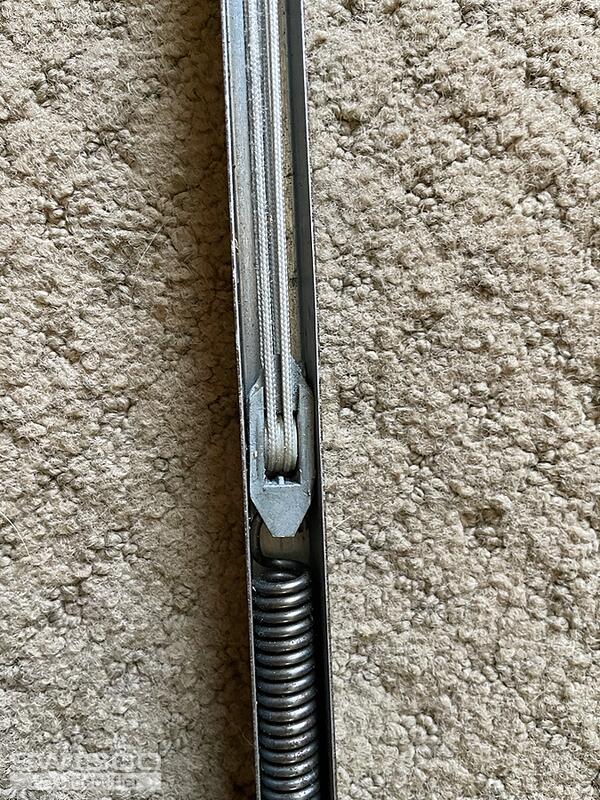

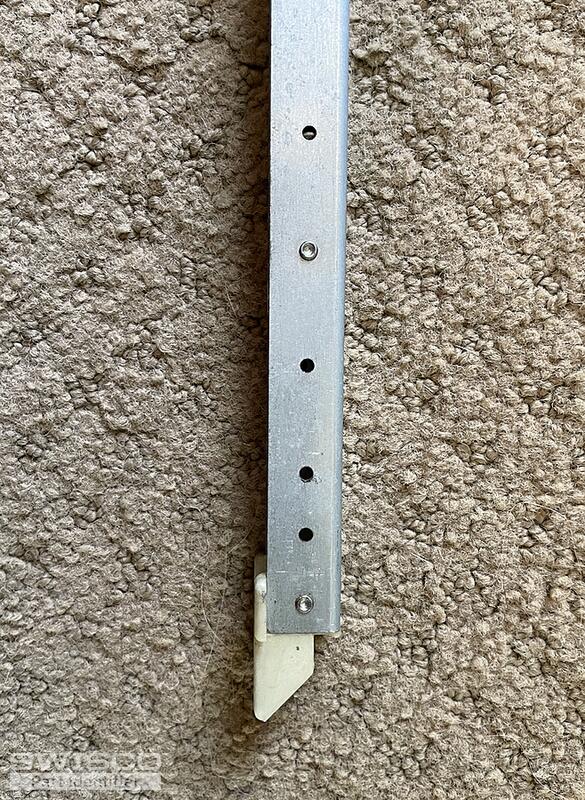

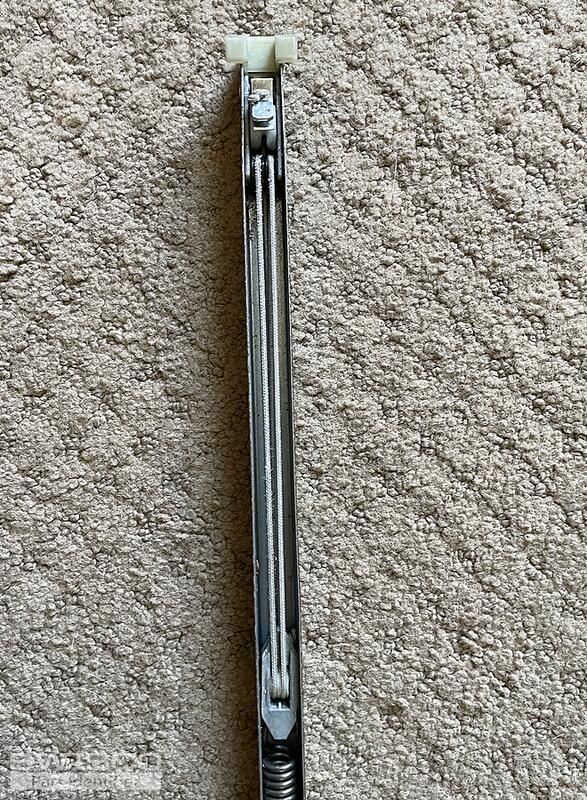

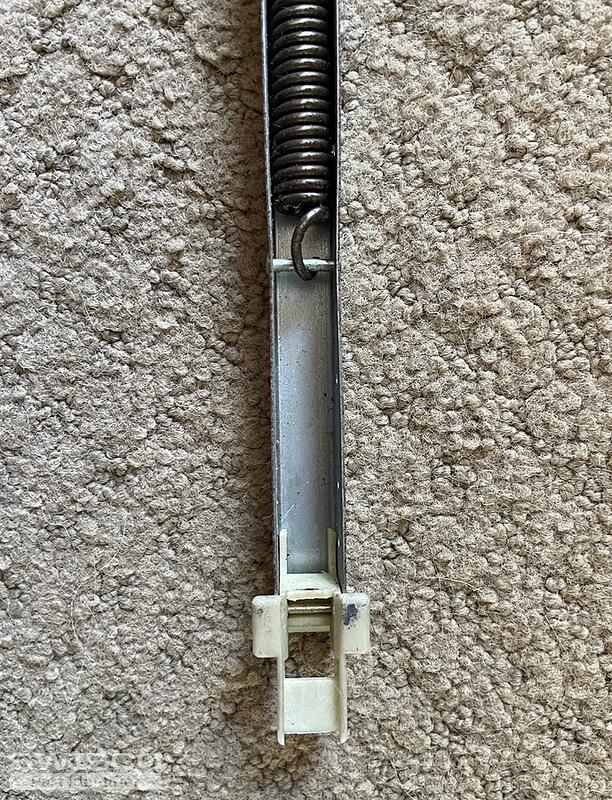

Screenshot 2024-06-30 at 4.47.54?PM Screenshot 2024-06-30 at 4.48.03?PM Screenshot 2024-06-30 at 4.48.10?PM Screenshot 2024-06-30 at 4.48.18?PM
4 user uploaded images
Bob
Bob from SWISCO
Jun 30, 2024 9:13 pm
SWISCO
EXPERT

That's perfect, thanks. This looks like either our S380-28 or S385-28 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Compare both with your old hardware to see what matches best. In either case, for a stamp option choose 2740. Let me know if you have further questions.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

Quick Learner from california
Jun 30, 2024 11:10 pm
Awesome. Thank you for all your help, you have been great.

Cheers!
Bob
Bob from SWISCO
Jul 2, 2024 12:22 pm
SWISCO
EXPERT

You're very welcome! Please don't hesitate to reach out if we can be of any further assistance.
