Need this window part

A quick learner from NJ says:
January 22, 2022

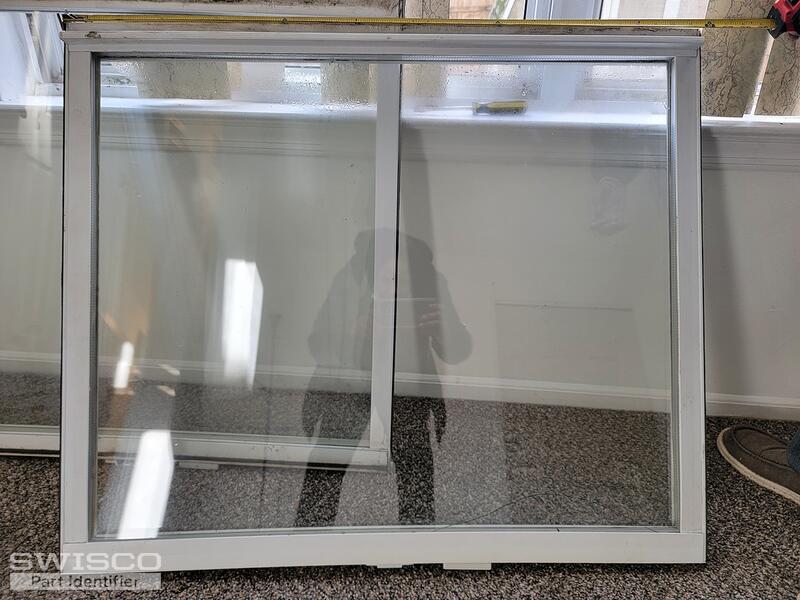

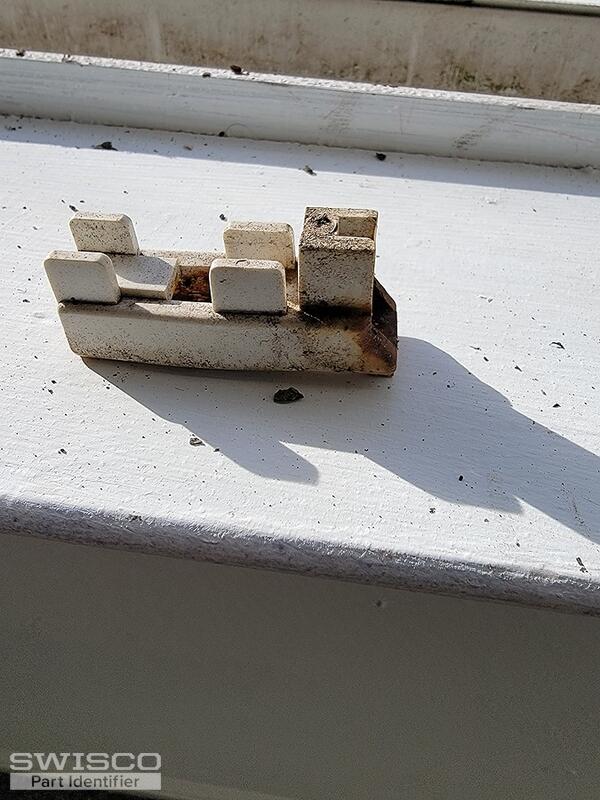

This is keeping the window from staying up on its own. The window and copy of the part is attached.
Thumbnail of the uploaded file named 20220121_104230.jpg
Thumbnail of the uploaded file named 20220121_103629.jpg
Profile picture of Paul
Paul from SWISCO responded:
January 25, 2022

Looks like you have the old Silverline 4000 Series window. The nylon pivot bar carrier looks like the 26-399 for the top sash. The pivot bar that is used with this is the 26-400 . The bottom sash pivot bar would be the 26-330 , which usually uses the 26-040 pivot bar. Compare dimensions to see what you think.

Pivot Bar, 3"
Pivot Bar, 3"
26-040
$1.57
Pivot Bar Housing, Bottom Sash
Pivot Bar Housing, Bottom Sash
26-330
$2.10
Pivot Bar Housing, Upper Sash
Pivot Bar Housing, Upper Sash
26-399
$2.10
Top Sash Pivot Bar, 2-5/16"
Top Sash Pivot Bar, 2-5/16"
26-400
$2.42
Tilt Latch Pair
Tilt Latch Pair
26-393B
$6.12
