Need three sets of channel balances and caps for Viking windows

Quick Learner from Beaverton, Oregon

Jul 23, 2023 7:23 pm

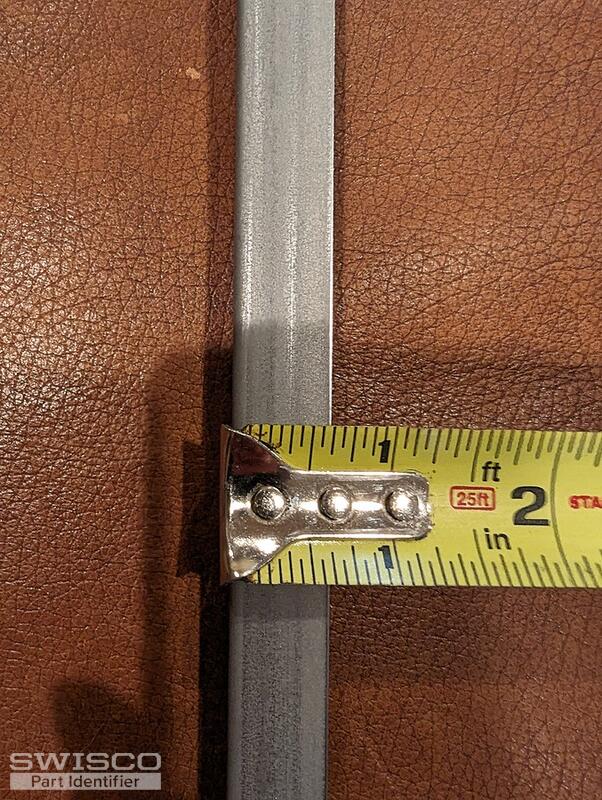

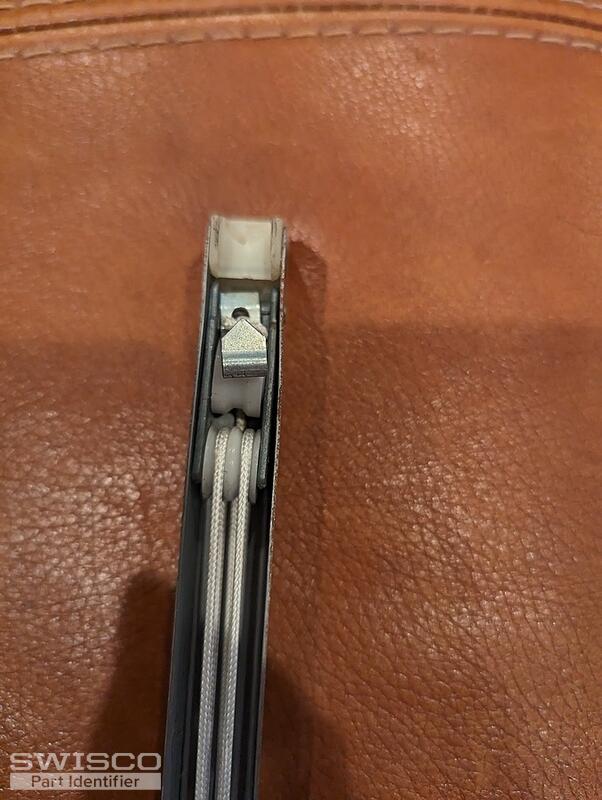

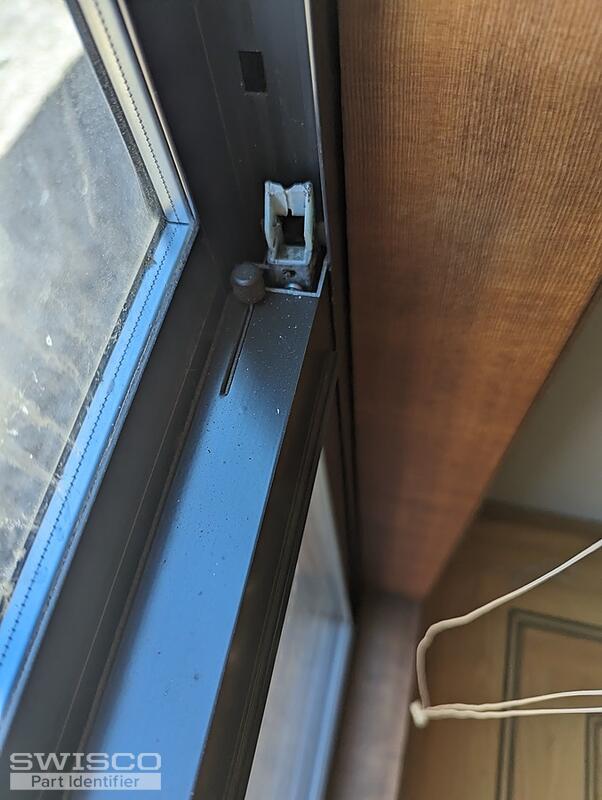

I have three windows that have damage to one or both of their channel balances or plastic end attachments and they need to be replaced. I will send in three different requests as to not get the pictures mixed up. Here is the first set of pictures for the biggest window. The channel balance says 2840

5 user uploaded images

4 Replies

Bob from SWISCO

Jul 23, 2023 7:53 pm

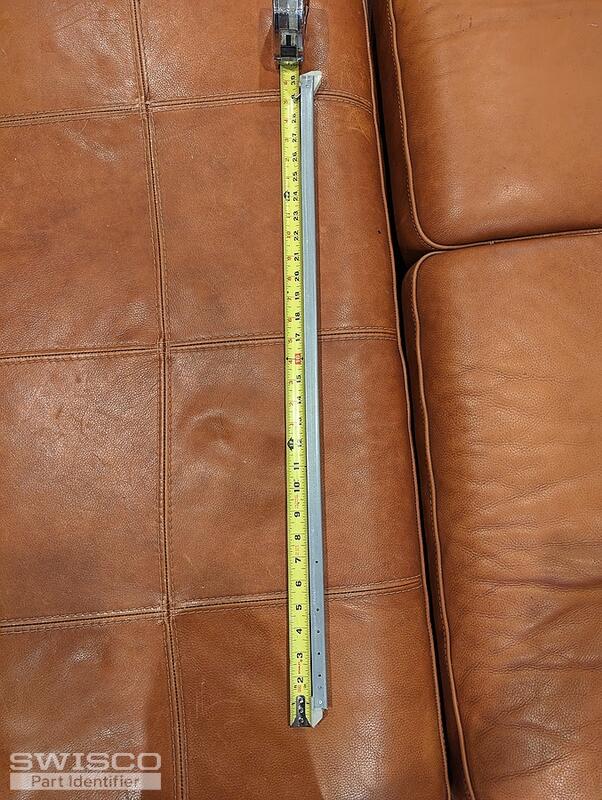

Thanks for posting. Is the metal channel, not including the fittings on either end, 29" long? If so I believe this is a S395-29. For a stamp option choose 2840.

Quick Learner from Beaverton, Oregon

Jul 23, 2023 8:04 pm

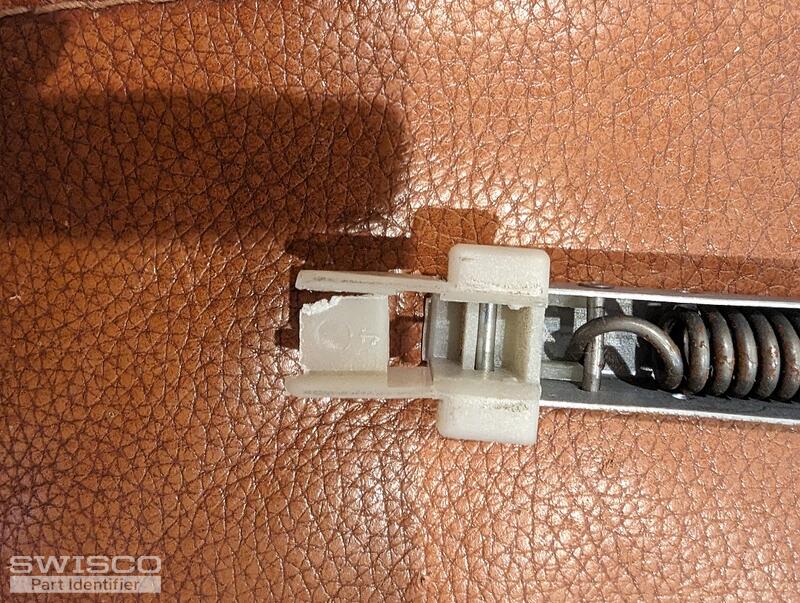

Yes 29" without the plastic attachments. There is no way to buy the plastic attachments without the metal channel balance is there? A couple of the channel balances are fine, just the plastic is busted.

1 user uploaded image

Bob from SWISCO

Jul 23, 2023 9:19 pm

You sure could. The Series 395 uses the 19-005 Top and 15-001 Bottom fittings. The video below shows how to replace fittings on a metal channel. It's certainly doable if you're game to do some drilling and riveting. Take a look and see what you think. If you're uncertain, you can always just go with a new balance instead.
