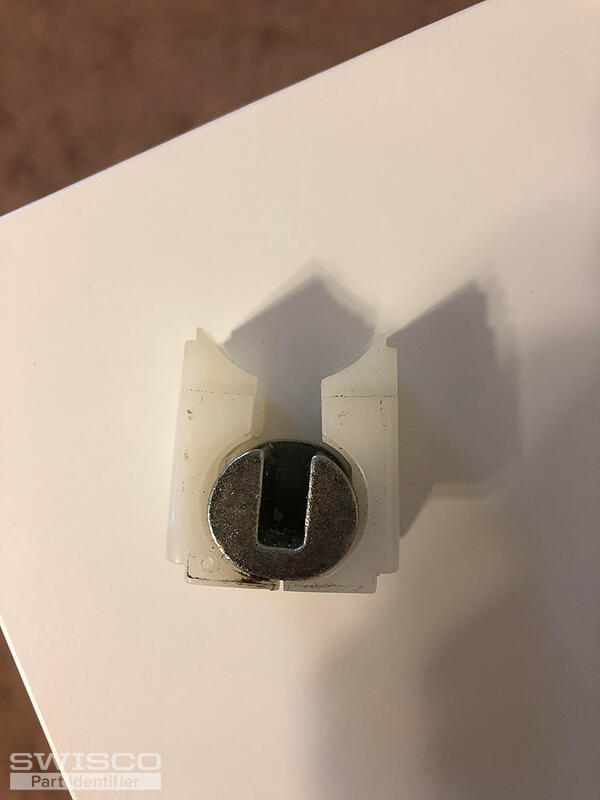

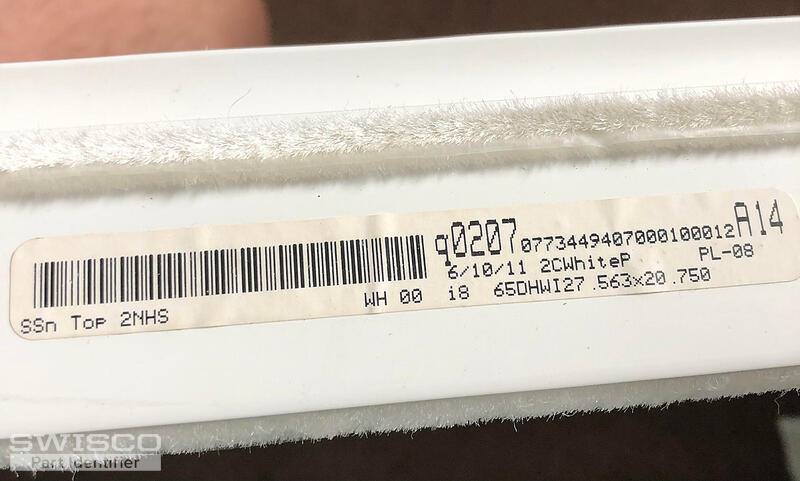

Looking to ID this tilt pivot shoe. Many of them have broken in my windows and need to be replaced. I believe the windows were bought from home depot in the past. The size i measured for this broken one is 1 1/2" L, 1 3/8" W, 7/8" H. I attached pictures to help with the identification.
Some appear to be free floating with just a piece of plastic and a metal insert. The others are attached to what looks like a pullet system behind a plastic insert that has a screw in it.
Thanks in advance.
Need to ID pivot shoe

Home Owner from new york
Jul 17, 2021 8:07 pm
5 user uploaded images
2 Replies

Bob from SWISCO
Jul 22, 2021 10:44 am


This reminds me of a Simonton pivot shoe that is no longer made, but can be replaced with the 15-259. Note however that the old coil system will also need replacing. The video below explains how.
