Need to identify Top Sash Guide for winow

Home Owner from Marietta, GA
Apr 17, 2023 10:17 pm
Please suggest if you have matching Top Sash Guide as per the attached images. I believe these windows are around year 1985/1986 as the house was constructed at 1986.
The approximate measurement is given below. The measurement in inches.
top rectangle part is -13/16" x 7/8"
Total height 15/16
bottom part- 7/16 x 9/16
screw hole from top of the sash - 3/8
hole from top of the window of a window - 2/8

When I referred your "5/8" Top Sash Guide", thought of if I can use this...however not sure its below part width 5/8 inch will work with existing window sash below part width 7/16"

Please let me know if you need anything.

Thank you in advance

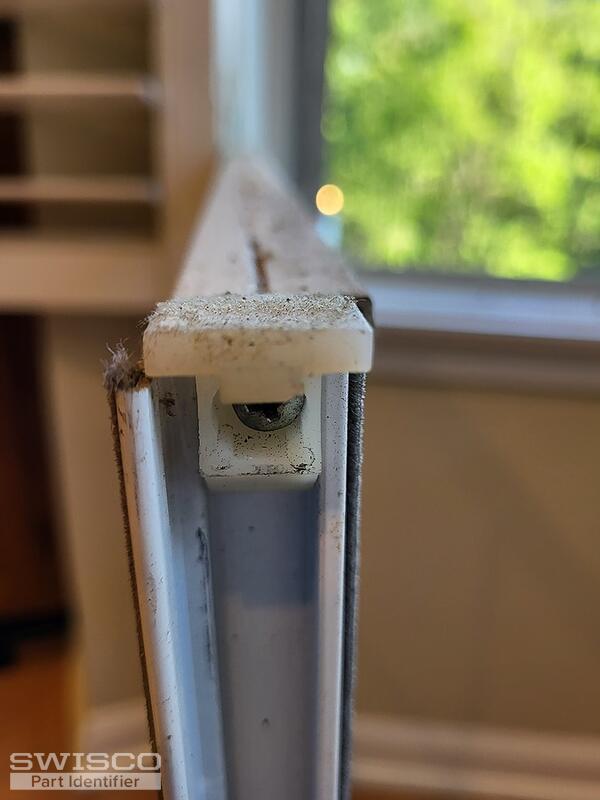

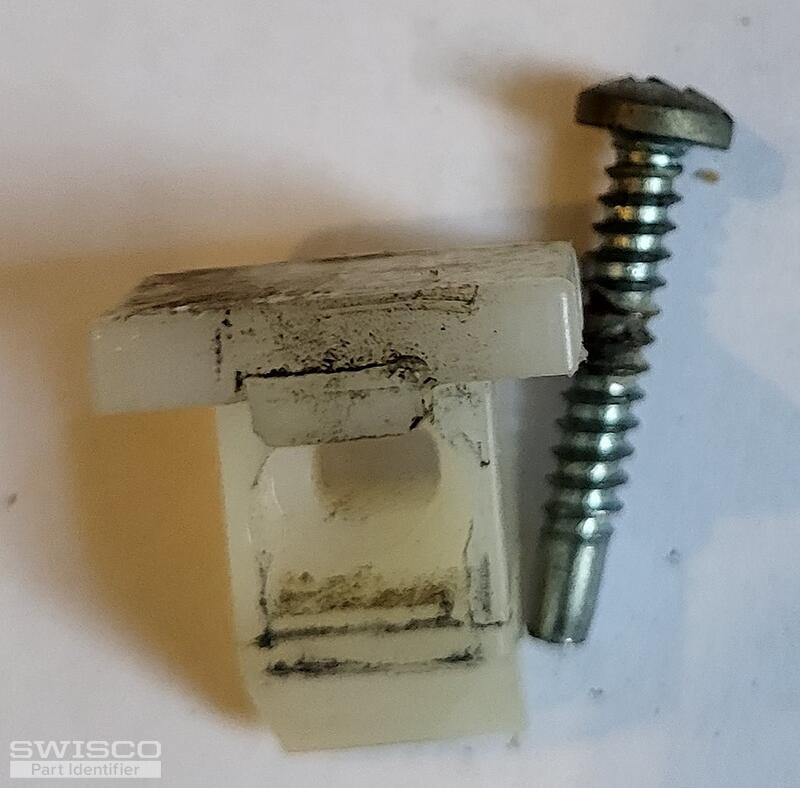

Top sash guide2 Top sash guide3 Top sash guide4 Top sash1 20230417_181052
5 user uploaded images
6 Replies
Emily
Emily from SWISCO
Apr 18, 2023 1:31 pm
SWISCO
EXPERT

Hi there!

Thank you for reaching out to us. Our 18-060 top sash guide looks similar to what you have here. Have a look at the specifications and see how they compare with your old guide.

Alternate image for 18-060
Alternate image for 18-060

Alternate view of 18-060
Alternate view of 18-060

Home Owner from Marietta, GA
Apr 18, 2023 2:45 pm
Thank you for your quick response and suggestion on Top Sash Guide. I feel that it should fit, only slight difference see in bottom width. In your suggested file, it is showing 1/2" and my measurement shows 7/16". I took these measurement yesterday and I don't have part with me so hopefully that should work. I will order this part (15 count) along with other parts.

Also, I need suggestion on Channel Balance. The height is 28" and the balance shoe width is 1 1/8". I am attaching few images for your reference. I feel this is a match with "28" Series 390 Channel Balance - S390-28 (2730)" however not sure since both balance top and shoe looks slightly different. Both does not have small wings coming at outer side.

Please let me know if need more information. Thank you in advance.

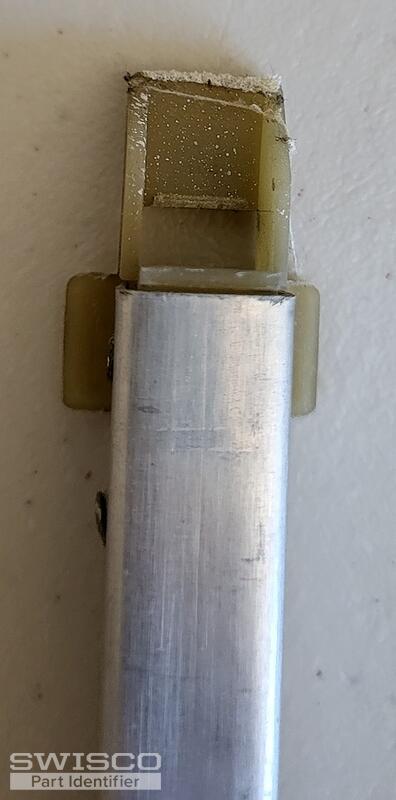

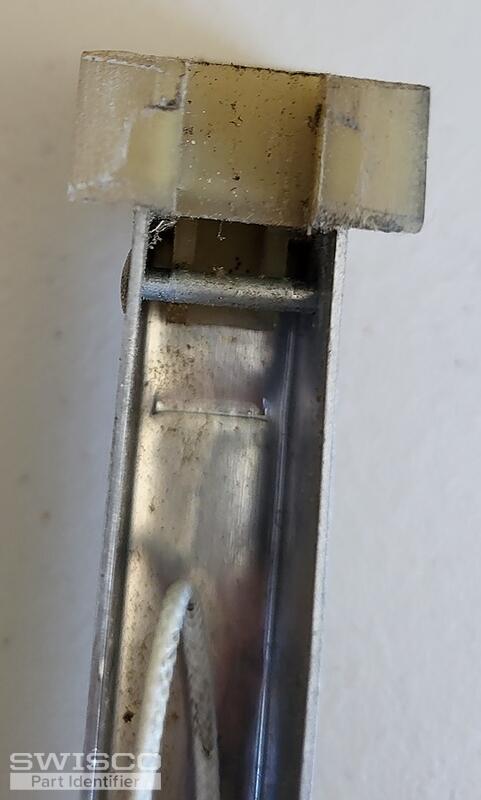

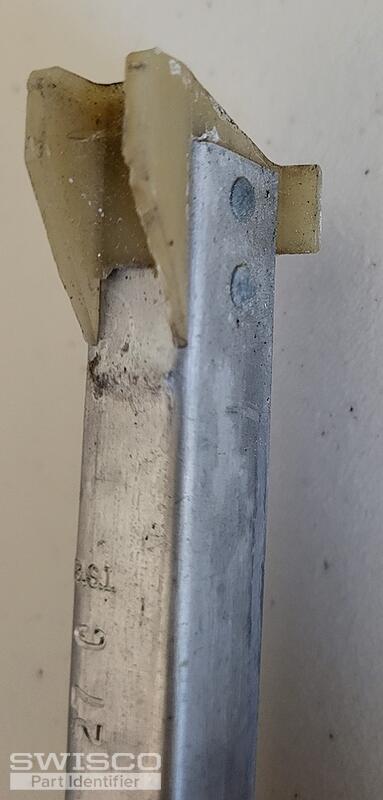

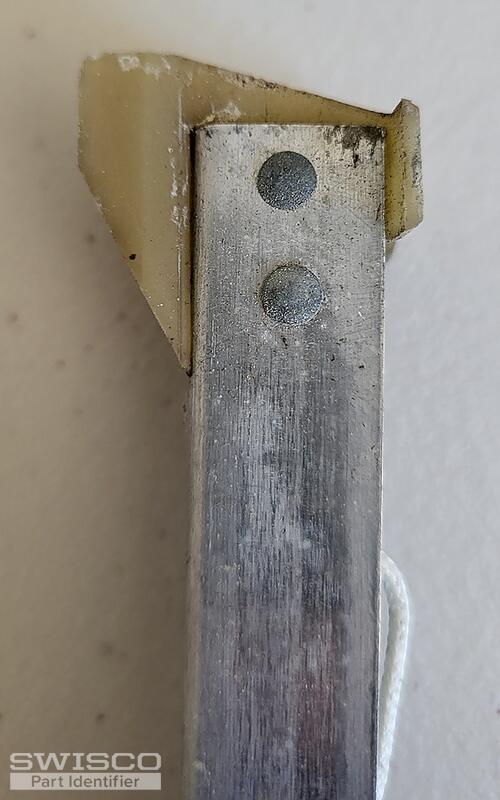

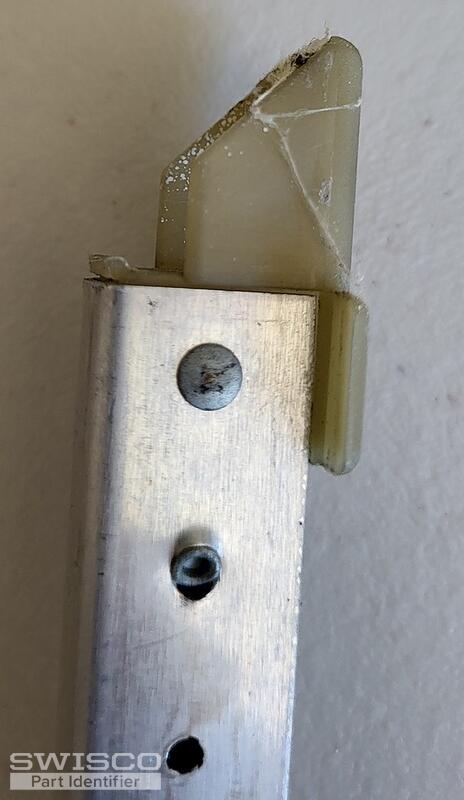

Channel balance shoe2 Channel balance shoe3 Channel balance shoe5 Channel balance top3 Channel balance top4
5 user uploaded images
Home Owner from Marietta, GA
Apr 18, 2023 3:19 pm
One more thing I forgot to mention for the channel balance is that, it is stamped 27 C BSI.
Home Owner from Marietta, GA
Apr 18, 2023 3:56 pm
I believe this "28" Series 385 Channel Balance - S385-28" should work. I rechecked the shoe length it is 1 3/32". I am not clear on which option I should select based on weight. The stamp says 27 C BSI.
Emily
Emily from SWISCO
Apr 19, 2023 9:03 am
SWISCO
EXPERT

I agree with the Series you picked out. You'd definitely want the S385-28 since the bottom shoe measures 1-3/32" deep. Your 27C stamp likely translates to the 2730 option for a sash weighing 13 to 19 pounds but you could always weigh your sash to confirm.

Home Owner from Marietta, GA
Apr 19, 2023 9:22 am
Thank you for the confirmation.
