Need to know what model to order

Home Owner from Florida
Oct 20, 2024 7:52 pm

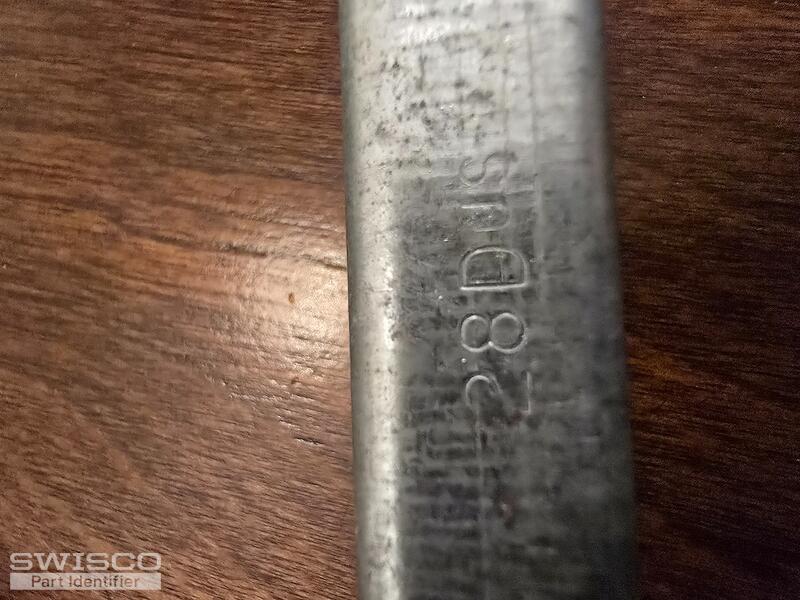

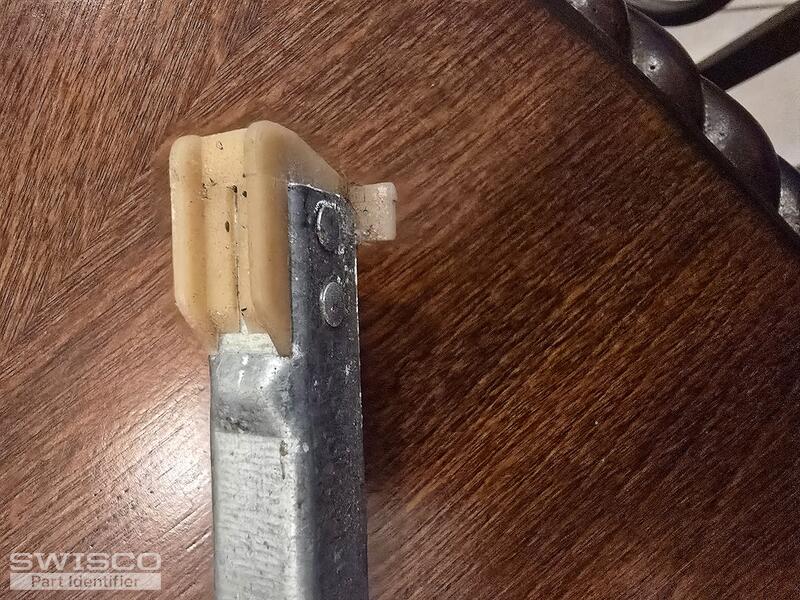

These are 1/2 in by 29in with a 28D number
20241020_193939 20241020_193944 20241020_193955 20241020_194018 20241020_194046
5 user uploaded images
3 Replies
Bob
Bob from SWISCO
Oct 20, 2024 8:59 pm
SWISCO
EXPERT

Thanks for posting. See our S380-29 Channel Balance. This might be what you have, but make sure the shoe depth is 1". The shoe depth is the 'heel-to-toe' measurement. See below. Let me know if your shoe's depth differs. For a stamp option choose 2840.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

Home Owner from Florida
Oct 21, 2024 8:14 am
The shoe depth actual measurement is 7/8...would the 1" work
Bob
Bob from SWISCO
Oct 21, 2024 1:06 pm
SWISCO
EXPERT

If your shoe is 7/8", then you have two options available to you.

The first is to go with the 1" shoe that's included with the S380-29 and shave it down to size. I've done this myself in a pinch and it works perfectly fine. Just note that any product altered in this way cannot be returned for a refund.

The other option is to have a balance custom ordered with our 15-029 shoe. We can make this for you here in our shop to the same specifications as the original assembly. However, custom balances also cannot be returned for a refund, so that's another thing to keep in mind.

The choice is ultimately yours. Just let me know how you want to proceed.
