Need to replace 26 6 GW CMC 11 balance

Handy Person from Lubbock, TX
Trying to identify this channel balance for replace/repair work.
Channel identifier: 26 6 GW CMC 11
Total length is 27"

Unsure how to figure out the spring weight/strength....weigh the window?

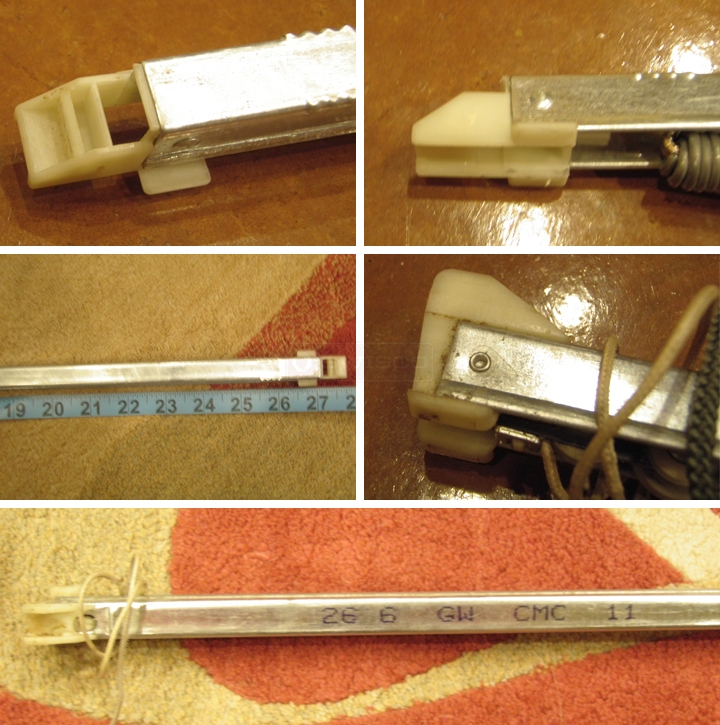

User submitted photos of a window balance.
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Thanks for posting! Before I can offer an applicable replacement for this channel balance, I just need to know a bit more information about the bottom attachment. Please take a look at our 15-004 and 15-005 channel balance shoes, and note their depths. As you can see, they are 1-3/32" deep and 1" deep, respectively. Which one more closely matches your own bottom attachment?
Handy Person from Lubbock, TX
They resemble the 15-005 channel balance shoes, that being 1" deep.
Tom
Tom from SWISCO
SWISCO
Expert
In that case, check out our S380-27 balance with a 2660 option. Let me know what you think.
