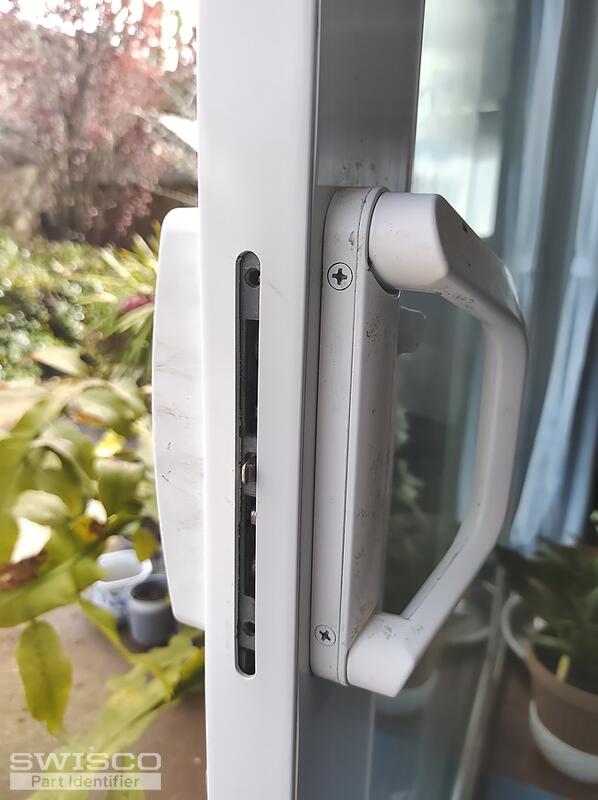

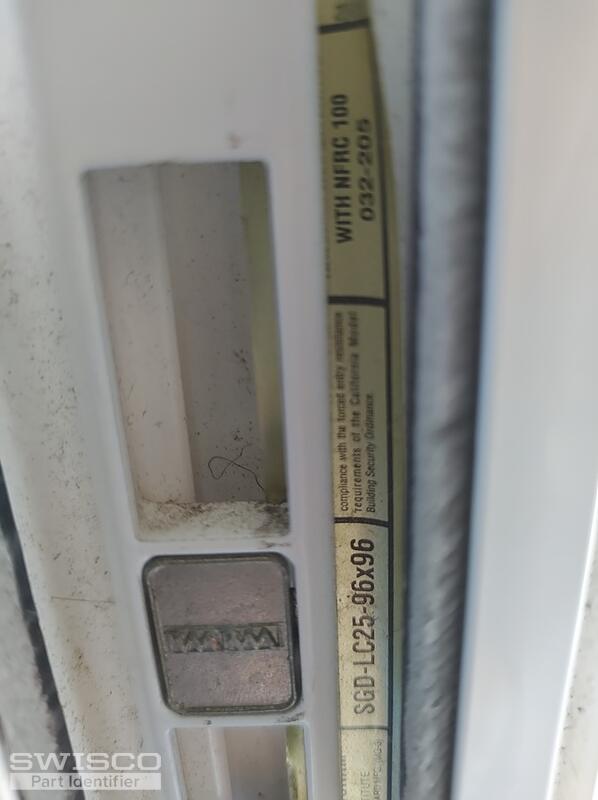

Need to replace the handle set of sgd-lc25-96x96 sliding glass door

A quick learner from foster city, ca 94404 says:

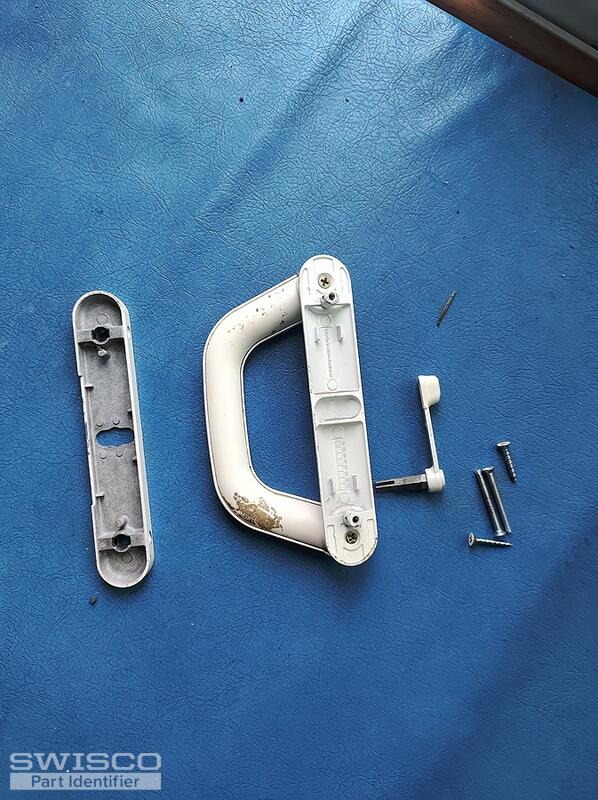

The iron plate between the handle and the door has a hole wear out and can not hold the screw which passing through, causing the handle fall apart from the door.

Thank you

wenshen

Thumbnail of the uploaded file named IMG_20230310_133939.jpg
Thumbnail of the uploaded file named IMG_20230310_133529.jpg
Thumbnail of the uploaded file named IMG_20230310_132720.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:

Thanks for reaching out! Your handle appears to be an older version of our 82-080 which has a 4-15/16" installation hole measurements. The keyed version is part 82-081. Take a look at the dimensions below to confirm that this will be a fit.

Dimensions for 82-080
Dimensions for 82-080

The keeper you have pictured is part 89-042 and the strike plate cover (the metal plate) is part 89-043. This is typically compatible with our mortise lock part 82-268B. Although, I can't confirm that this is the one you'd need with certainty because yours is obstructed by the door.
