Need to replace window balance on 3 windows

Handy Person from North Carolina

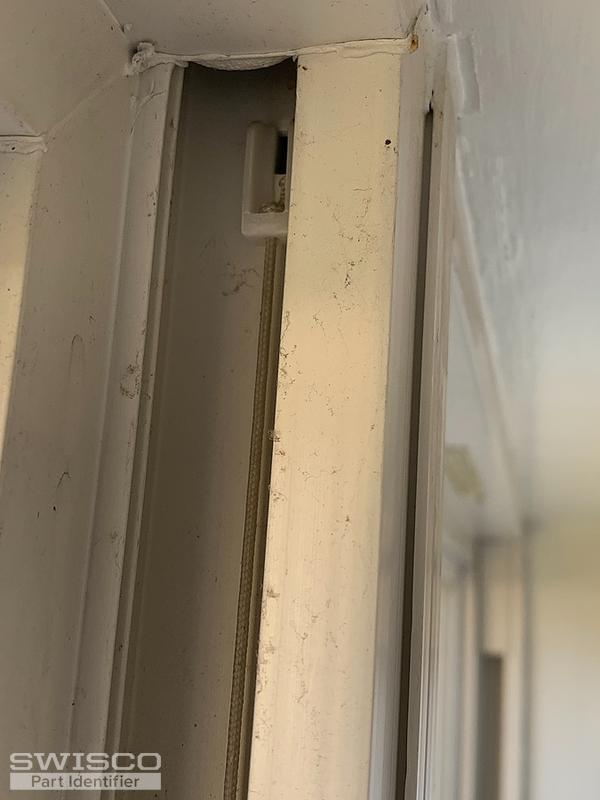

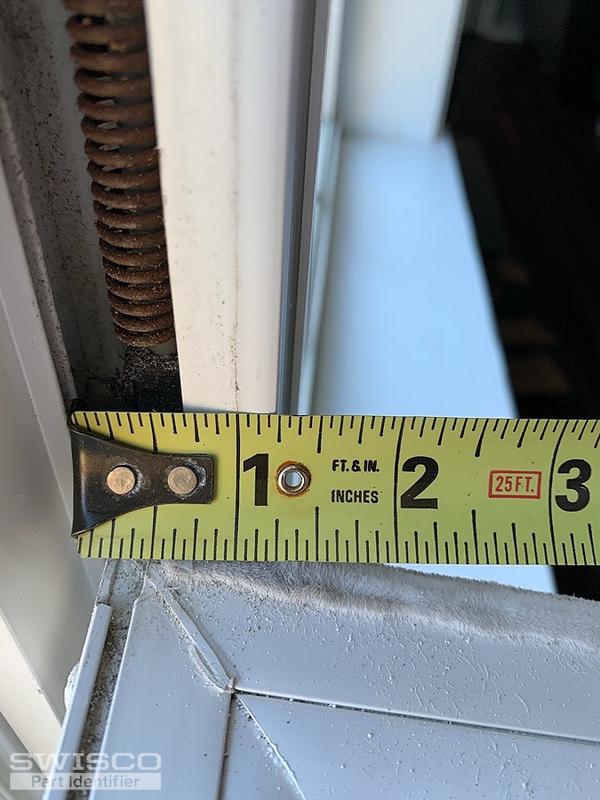

I am unable to find the maker of this window and I'm having trouble finding replacement parts. They are the original windows from a 2002 build. I cannot afford to replace the whole window. The window shown still works, I have 3 other windows that have the exact same window balance that need to be replaced. The bottom piece is shaped like a "T" and when twisted can be removed, it measures 1 1/4" wide when removed . From my research they are " bait and tackle" type balance's. They don't have a metal "U" shaped channel like all the rest I see online. The gap is about 5/8" wide. The channel is 51" tall. Please help lol
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

This old crossbow balance isn't made anymore, but you should be able to replace it with our Series 795 Channel Balance. The video below explains more.
