Need vinal spiral ballance shoe.

A quick learner from Duvall wa says:
August 12, 2021
Has become VERY hard to either raise or lower. Marked as 550C. Size is 2.272 H 1.250 W and. .555 D. Has cut some plastic strings where shoe brake pressed,but are minor & should not be a problem. In 1994 manufacture home.

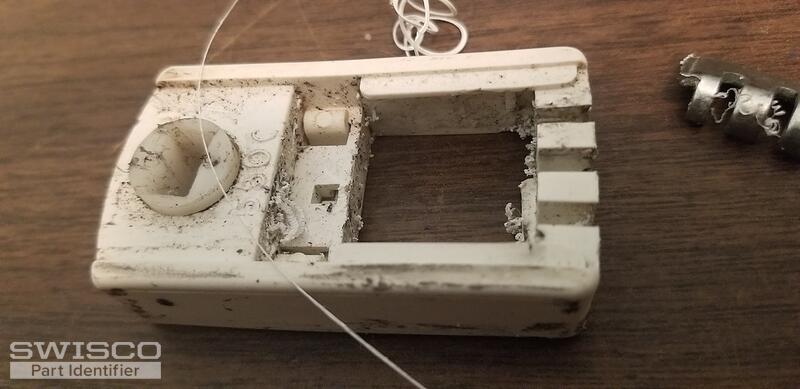

Thumbnail of the uploaded file named 20210812_110711.jpg

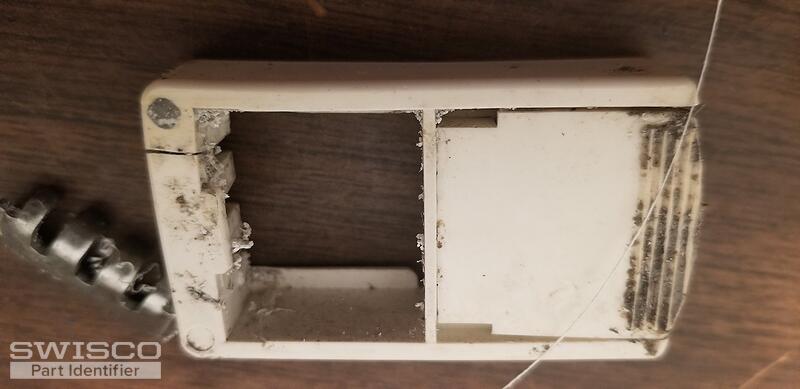

Thumbnail of the uploaded file named 20210812_110700.jpg
A quick learner from Duvall wa says:
August 13, 2021
is your #15-046 a suitable replacmen? In the photos you can see where the shoe or brake have shaved some strings off the back of channel it rides in.
Profile picture of Emily
Emily from SWISCO responded:
August 17, 2021

Hi there!

With your dimensions, take a look at our 15-118 or 15-121 instead. Carefully look over the dimensions for each and compare them to your original pivot shoe to see if either of these match what you need.
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-118
$2.20
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-121
$2.37
