Need window balancer hardware - Milgard Tuscany Double Hung Window

Handy Person from Pagosa Springs, CO

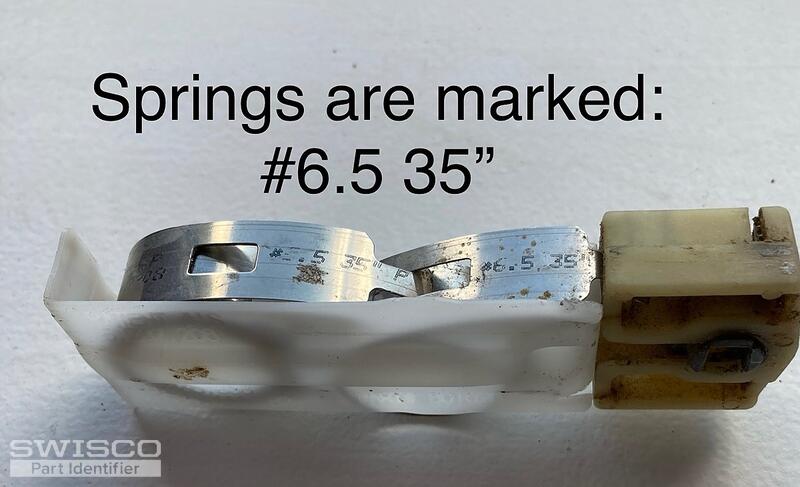

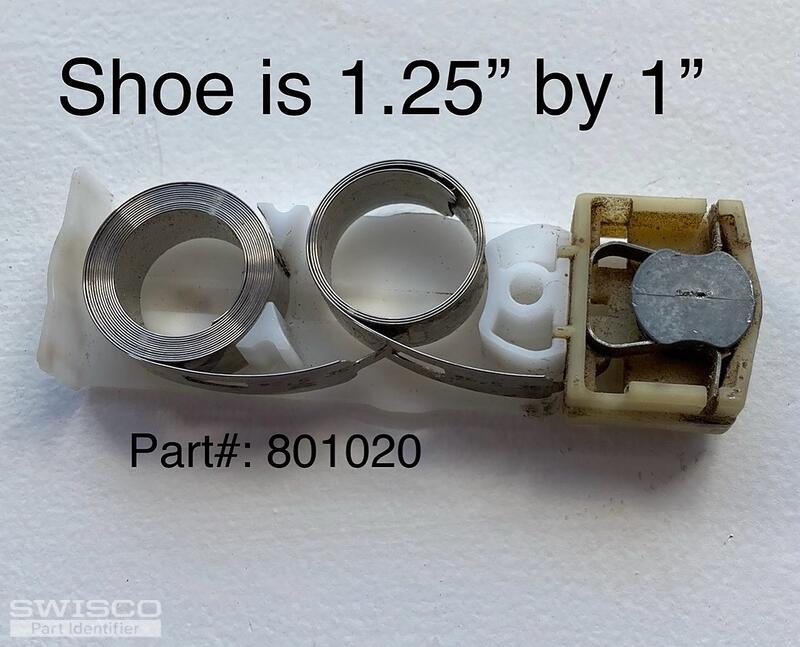

I need replacement springs and shoes for the window balancer parts shown in the attached images. Details of the markings on the existing parts are shown in the pictures. The balancer itself is marked with Part #801020. In one case, the internal coil spring is marked #7.5, 35" -- I interpret this to mean the spring has a 7.5 pound pull and is 35 inches long. In the other case, the spring is marked #6.5, 35". There are two identical springs in each balancer.

In addition, you can see in the photo the shoe on one of the balancers is broken. I will need a suitable replacement shoe.

The windows are Milgard Tuscany Double Hung manufactured in 2007. There is no Milgard supplier or service center in my area (rural southern Colorado).

I would appreciate your recommendations for the suitable replacement parts available from Swisco. I will likely order extra parts so I have some inventory on hand for future service. Thank you!
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out to us! Your coil balance shoe reminds me of the 15-111 Pivot Shoe, carefully look over the dimensions to confirm.

This shoe is compatible with the 1/2" thick Series 160 Coil Balance. To replace your coils, you'll need the S160-06 and the S160-07 coil springs. If you are also looking to replace the cover, you'll need the 15-150D Coil Double Support.

Alternate image for 15-111
Alternate image for 15-111

Handy Person from Pagosa Springs, CO
Thank you, Jasmine! I will figure out the quantity of parts needed and place an order.
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Sure! Please don't hesitate to reach out with any other hardware repairs you might come across.

Have a great weekend!
