Needed window parts : SWISCO.com

Landlord from Berryville Virginia

Jan 2, 2026 9:11 pm

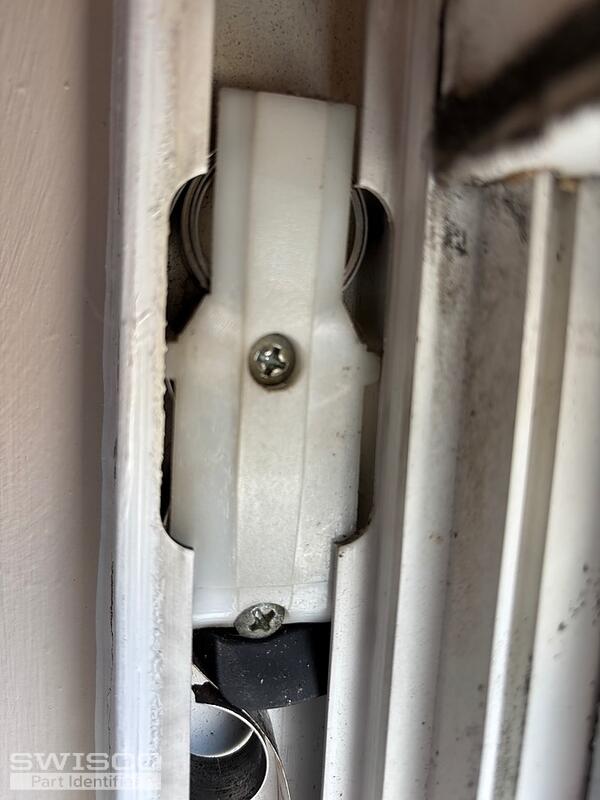

I'm a builder/developer/landlord in need of 2 coil counter balances for a vinyl window, 2 stops (? - is that what they're called), 2 pair of the toe tabs (at the top of the sash enabling the sash removal). I also need the same nsulation strip that run along the side of the window in the track

4 user uploaded images

9 Replies

Casey from SWISCO

Jan 7, 2026 10:32 am

Hello,

We can't be sure with the hardware still installed, but it looks like you may be showing the 15-111 Pivot Shoe. If so, this shoe works with either 1/2" thick Series 160 Coil Balance springs or 3/8" thick Series 165 springs. Measure your old spring thickness to confirm.

Alternate image for 15-111

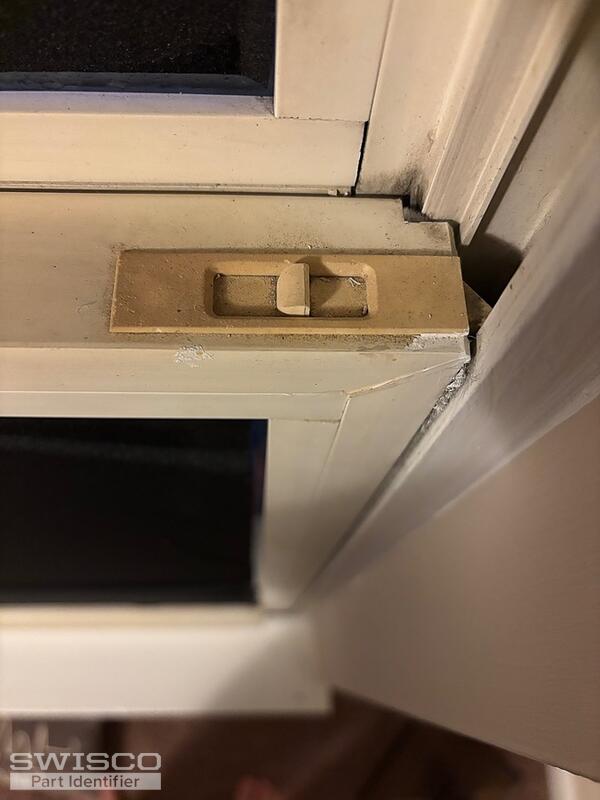

As for the tilt latches, see if the 26-243A and 26-244A match your specifications. Thanks for posting!

Dimensions for 26-244A

Landlord from Berryville Virginia

Jan 19, 2026 1:03 pm

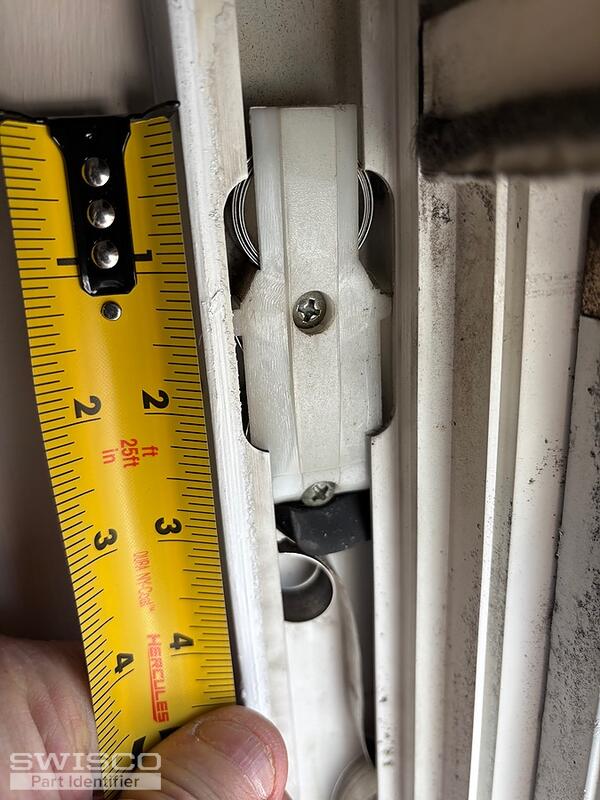

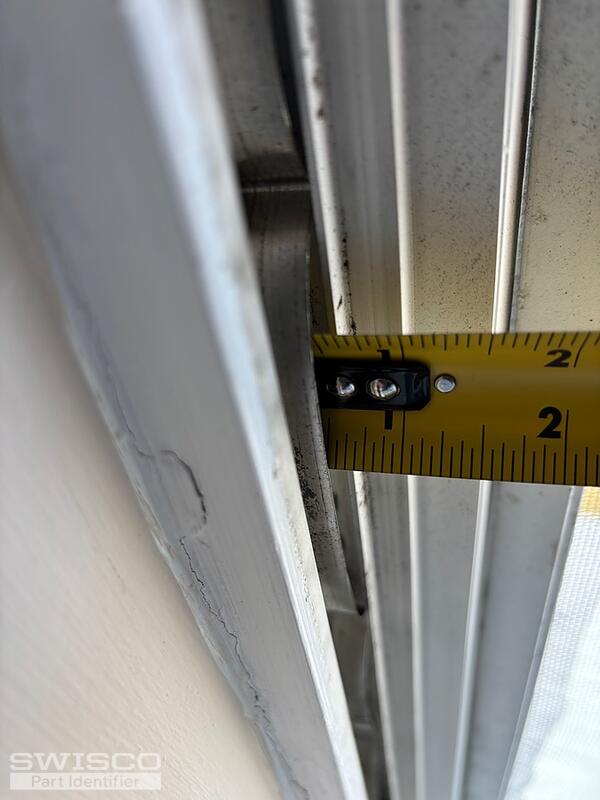

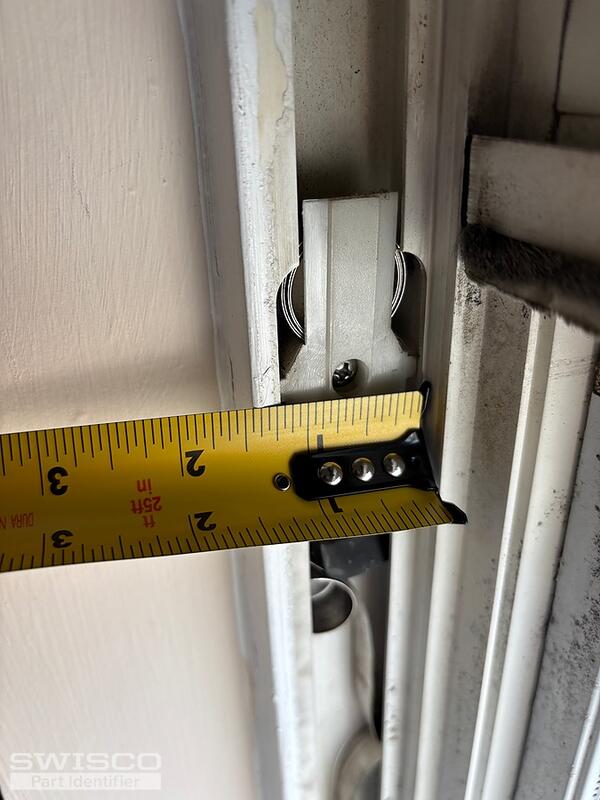

Here's some additional measurements and pictures. The dual glazed sash serviced by the spring measures 33-1/4"x29". The sping measures 1/2" and the spring unit is 1-1/4"x3". See attached pictures. I'll order the recommended replacement parts following your response. Thanks, Eric

4 user uploaded images

Casey from SWISCO

Jan 20, 2026 8:37 am

If your coils measure 1/2" wide, you'll need the Series 160 replacements. There should be numbers stamped on the originals that you'll need to choose the corresponding strength options.

Landlord from Berryville

Jan 20, 2026 11:18 am

Casey, I'll remove the Spring and look for the numbers and send a picture to confirm I'm looking at the right numbers. Since the spring is 1/2" on sash size provided above, I believe the 15-111 would work unless you think I should upgrade to the heavy duty. Do you have a recommendation one way or another? this is my first time using replacing window parts but I have a lot of windows in my rental portfolio and need to focus more on maintaining what I have
Thanks,
Eric

Casey from SWISCO

Jan 20, 2026 11:42 am

Either the standard or heavy-duty option will work if the dimensions match, but we generally suggest sticking with the exact parts your window came with.

Quick Learner

Jan 24, 2026 6:13 pm

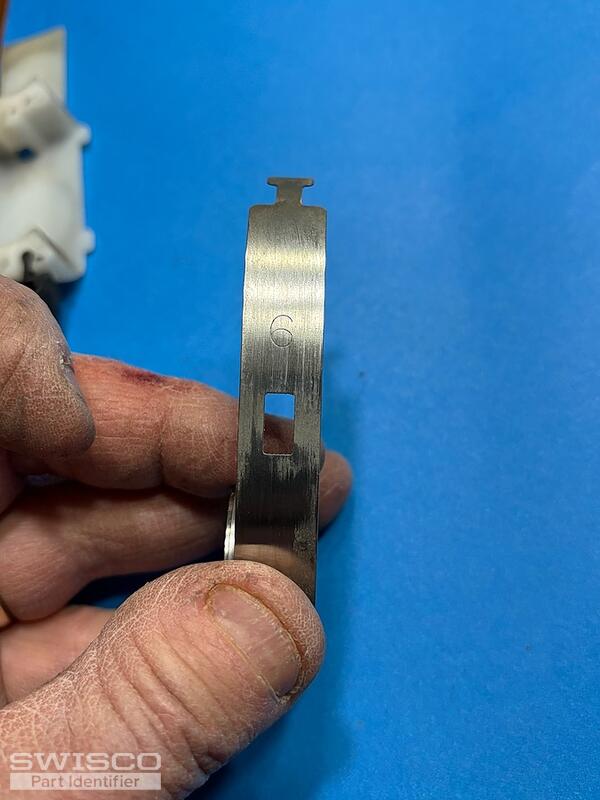

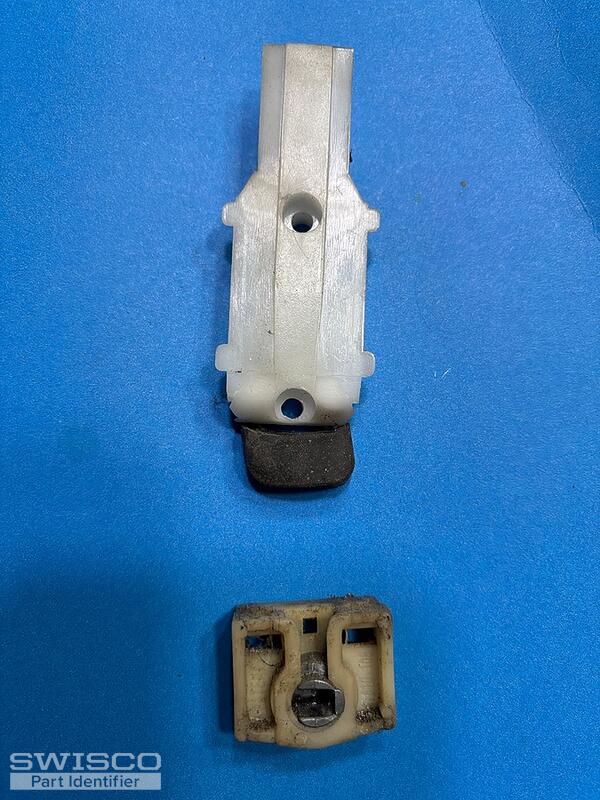

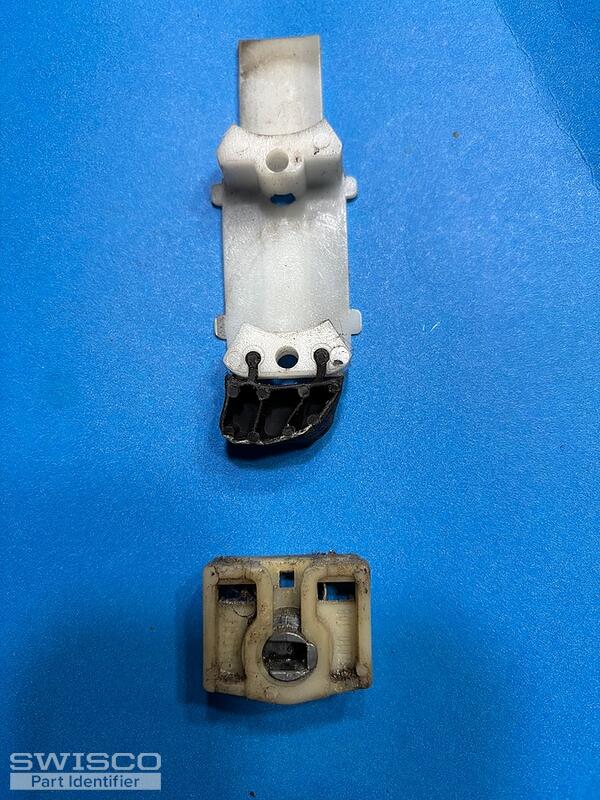

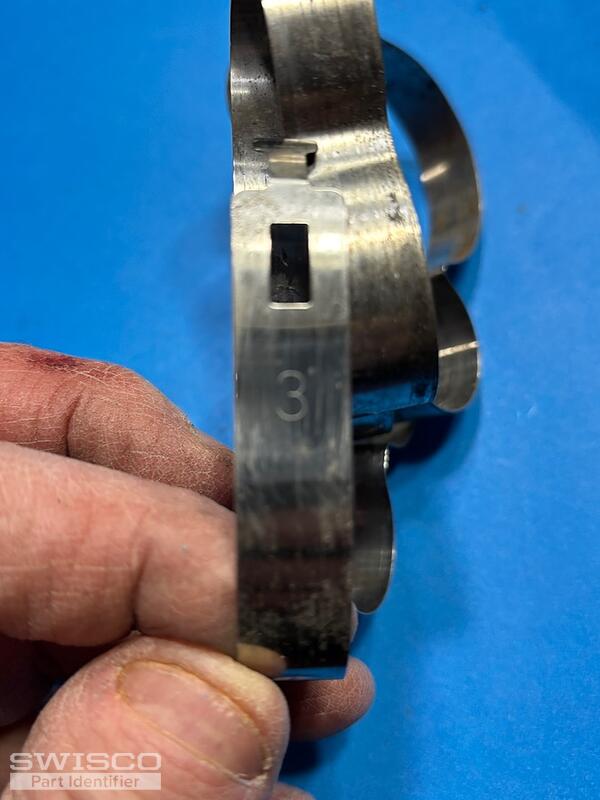

Here are additional pictures of the spring coil part after removed from the window. The springs are 6lb and 3lb x1/2"

4 user uploaded images

Quick Learner

Jan 25, 2026 11:43 am

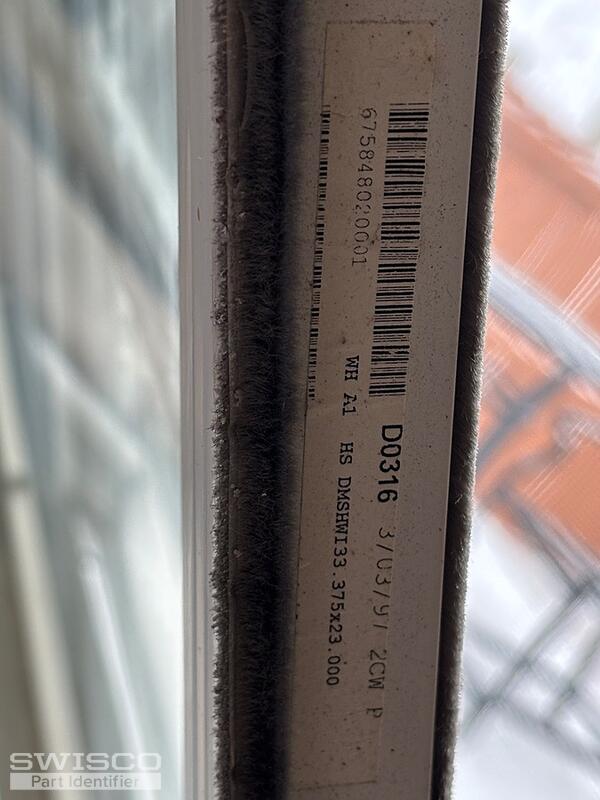

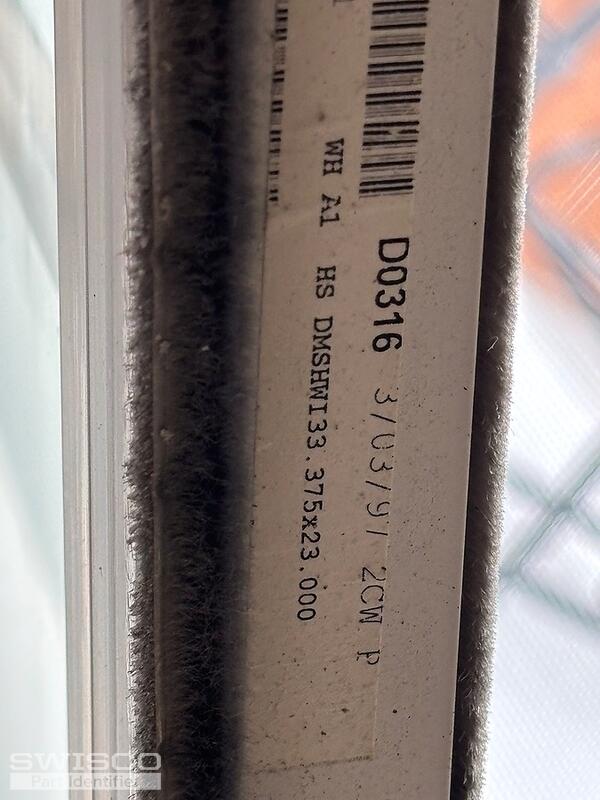

I noticed the double coil cover Swisco offers has a single screw. The original part has two. One of the original covers broke while I removed it so I'll need one. Wondering if the lack of a 2nd screw will matter. I attached a label on the side of the window sash if that helps.

2 user uploaded images

Casey from SWISCO

Jan 27, 2026 8:23 am

See the S160-03 and S160-06 coils based on your stamp codes. The bottom mounting hole of the 15-150D appears to match yours, so I don't see it being a problem. We also offer the 15-148 bumper if needed. You're welcome to review our return policy here in case you run into any trouble.
