Needing Help With Tracks and Hardware for Closet Bypass Doors

Question

I have a closet with an 8’ opening that I am converting to mirrored bypass doors. I’ve acquired four 2’ doors; no tracks and three doors have existing hardware. I did not see these doors installed or the tracks they were installed on. My plan is a dual channel installation with two doors in each channel. Due to the width of the opening I am planning two sections of 4’ track end to end.

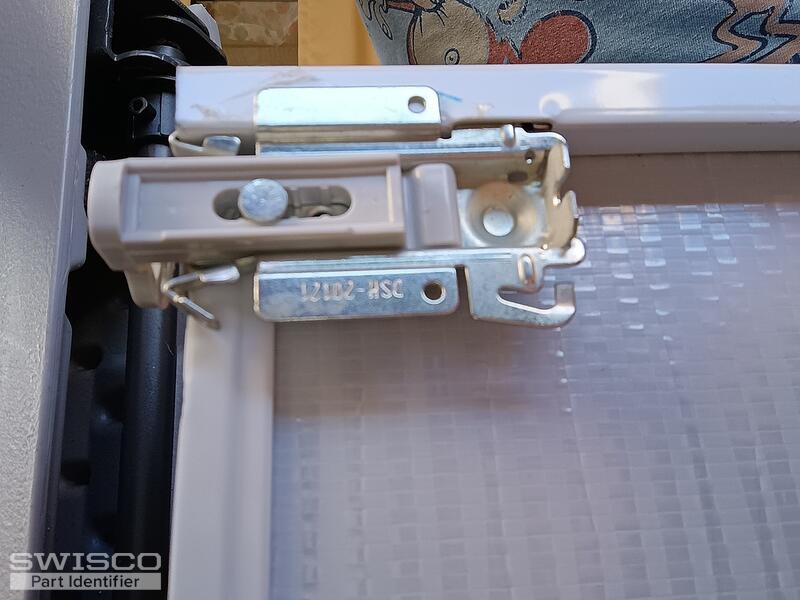

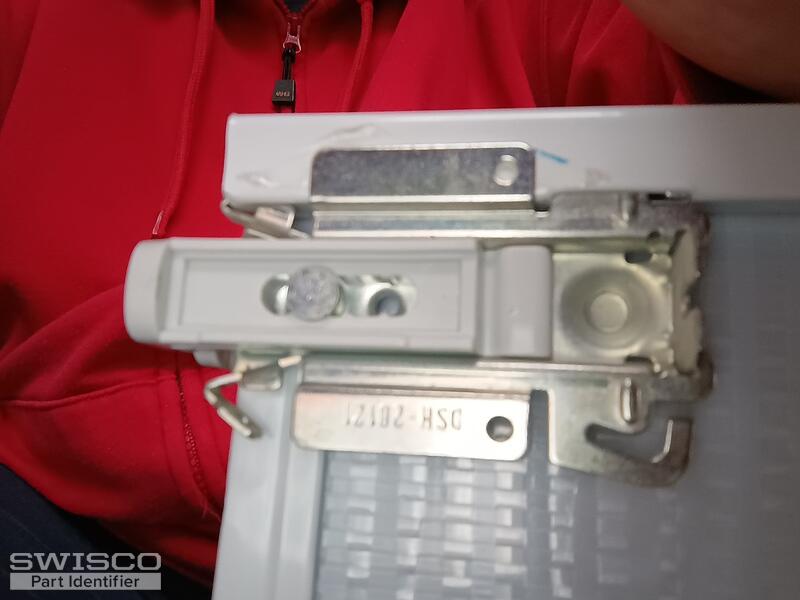

While the bottom roller hardware seems straightforward, the top guide part number stamped on my hardware doesn’t seem to match with the hardware you have on your site that matches how mine looks. I’ve attached photos of both the top and bottom hardware on my doors.
Please tell me what I should order from you to match my existing door hardware:

TOP TRACK (8’ overall width)
BOTTOM TRACK (8’ overall width)
One set of Door Hardware (qty 2 of each top and bottom) – (at least until I see how much better that door works and decide to replace the other three ? )
Thanks!!

Jasmine · Accepted Answer

Hey there,

Thanks for your post! The top guide on your closet door is the 23-038 Bypass Top Guide Assembly. This is often paired with either the 23-199 or 23-225 bottom rollers (the only difference is the latter has a ball bearing wheel).

Detail of 23-199

Alternate view of 23-199

To replace the tracks, you'll need the 23-244 48" Sliding Mirror Door Top Track and the 23-240 48" Sliding Mirror Door Bottom Tracks to replace the tracks.

Profile view of sliding mirror door top track

Profile view of sliding mirror door bottom track
